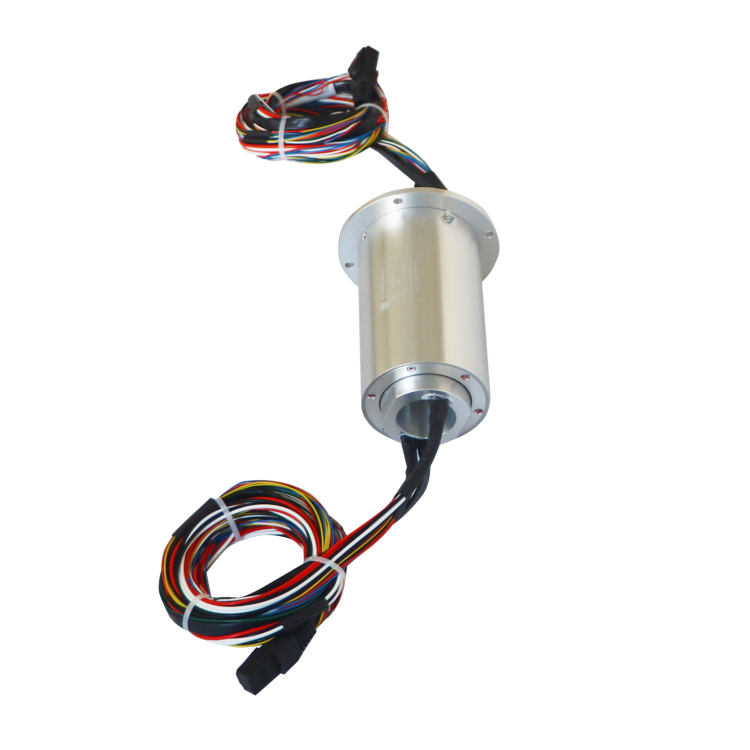

DHS066-37 Ingiant Ethernet slip ring transmitting 1 Gigabit Ethernet signal and 28 channels power rings (2-20A)
Ethernet slip ring – DHS066 series
Accept customization, transmit 100/1000M Ethernet signal
DHS066-37 Ethernet slip ring is specially designed for 250MHZ signal transmission. It can be combined with 28 power rings (2-20A) while transmitting 1 Gigabit Ethernet signal, and can be customized according to actual needs. Ethernet slip rings are made of reliable precious metal materials and aluminum shell. The mature and stable process makes the produced slip rings have the remarkable characteristics of stable transmission, no packet loss, anti-crosstalk, large return loss and small insertion loss.
Product features
- Stable transmission of 1 Gigabit Ethernet signal
- The brush contact part is plated with rare precious metals, which has a long service life
- Plug-and-play RJ45 interface
- Dedicated Ethernet cable
- Small size, easy installation
- Maintenance-free use
- Stable transmission, no packet loss, no string code, large return loss, low insertion loss
Typical applications
- Small network system
- Video surveillance system
- Stage control system
- Industrial automation control
- All kinds of network cables and RJ45 interface transmission
|
DHS066-37 |
|||
|
The main parameters |
|||
| Number of circuits | 37 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
