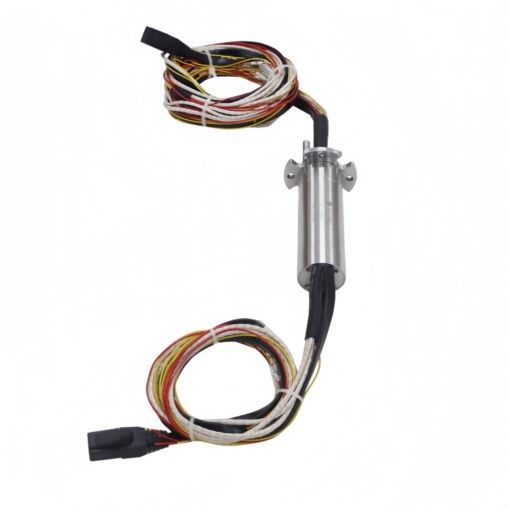

DHS030-21 30mm series high precision Ethernet slip ring can be customized
Ethernet slip ring DHS030 series, with an outer diameter of 30mm, can integrate and transmit 5A current/2A signal/1000M Ethernet signal. Plug and play type with RJ45 connector, also called network slip ring, network cable slip ring.
Features
- Stable transmission of 1-2 channels of 100M Ethernet signals
- The contact part of the brush is plated with rare precious metals and has a long service life.
- Plug and play RJ45 interface
- Dedicated Ethernet cable
- Small size, easy to install
- Stable transmission, no packet loss, no cross-coding, large return loss, low insertion loss
Typical applications
- small network system
- video surveillance system
- stage control system
- Industrial automation control
- Various network cables and RJ45 interface transmission
|
DHS030-21 |
|||
|
The main parameters |
|||
| Number of circuits | 21 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system
- Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
