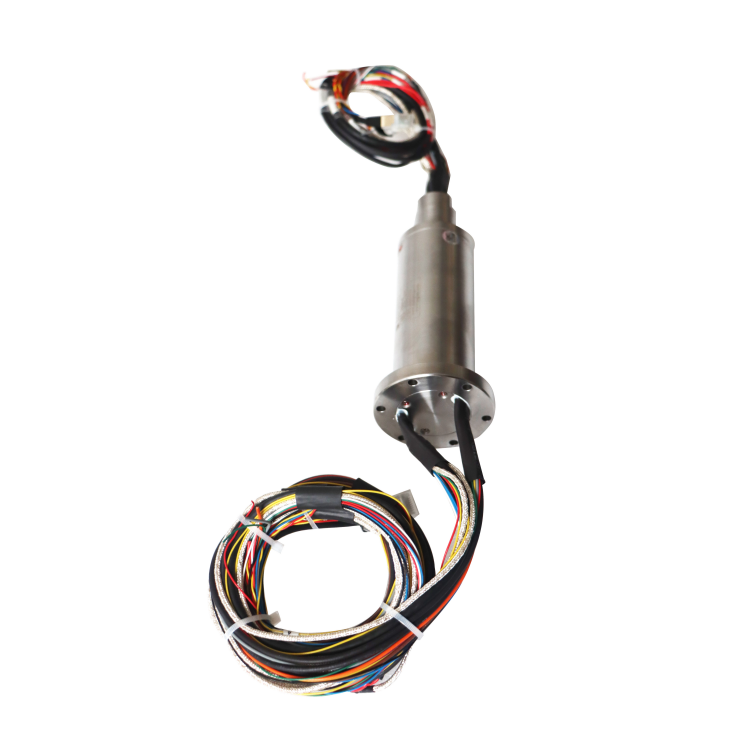

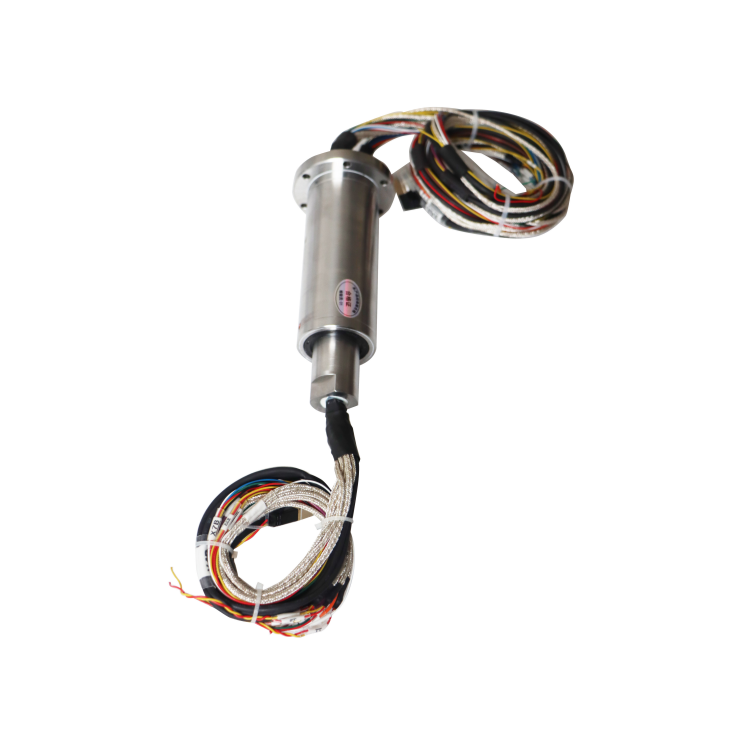

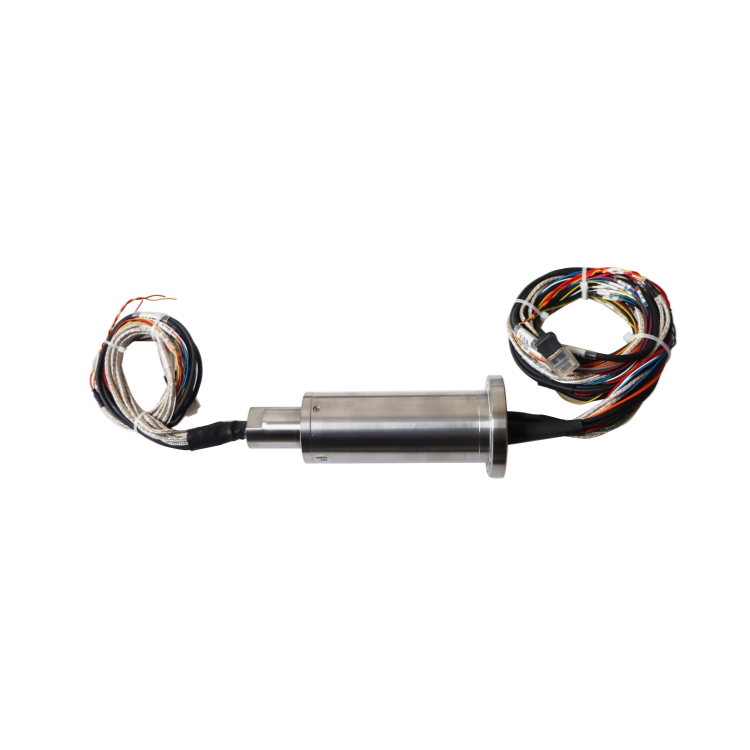

DHS044-40 Ethernet slip ring with solid flange design diameter 44mm 40channels

DHS series Ethernet slip ring

DHS044 series Ethernet slip ring is an industrial-grade Ethernet slip ring with an outer diameter of 44 mm, flange mounting, and a compact integral structure of 2-channel 100M/1000M Ethernet integral precision conductive slip ring, capable of mixed transmission of power currents. , signal and so on! It has the advantages of stable transmission, no packet loss, no aliasing, small return loss, and small insertion loss. American military coating technology, precious metal + super-hard gold plating, ultra-low BER bit error rate and ultra-high signal-to-noise ratio.



Features

  • The Ethernet slip ring is specially designed for 250MHz frequency signals.
  • It is designed to transmit 100M/1000M Ethernet signals.
  • It has stable transmission, no packet loss, no cross-coding, small return loss, small insertion loss, strong anti-interference ability,supports POE. Etc.
  • The Ethernet slip ring can mix electrical power channels and signal channels,
  • Can transmit up to 8 Ethernet channels at the same time.
  • It can provide RJ45 connectors for direct plug-in and unplug Support RJ45 connectors.
  • The Ethernet slip ring adopts American military coating technology, precious metal + super-hard gold plating.
  • Ultra-low BER bit error rate and ultra-high signal-to-noise ratio
  • Can customize various types of Gigabit Ethernet slip rings, 1000M network cable slip rings, network slip rings, etc.
