DHS050-20-002 Ingiant Flange install slip ring standard out diameter 50mm with 20 channels power/signal
Flange install slip rings:standard OD 50mm solid shaft slip ring

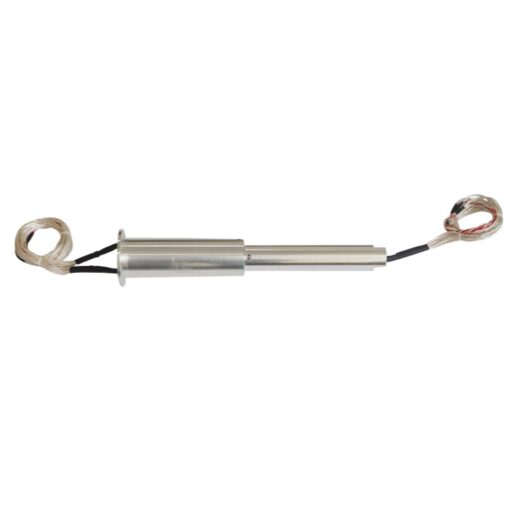

DHS050-20-002 series Flange install slip rings is a solid shaft slip ring ,is a compact power transmission device that implement the signal and current transmission between two relative rotating mechanisms. The beam brush type multi-point contact is used to ensure reliable contact under extremely low friction. It can be customized according to customer needs. The current is optional from 2 amperes to 2000 amperes, which can fully meet your different transmission schemes.
Features:
- Transmit analog and data signals
- Compatible with data bus protocol
- Long life, maintenance-free
- Easy to install
- The brush contact part is plated with rare precious metals, which has a long service life
- 360°continuous rotation to transmit power and data’signals
- Maintenance-free
Typically applications:
- Medical equipment
- Wind power equipment
- Manufacturing and control equipment
- Robot, radar antenna
- Magnetic actuator, rotary sensor
- Construction machinery, testing equipment, packing machinery Filling machine
- Machine tools
Flange install slip rings:standard OD 50mm solid shaft slip ring
|
DHS050-20-002 |
|||
|
The main parameters |
|||
| Number of circuits | 20 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
