DHS099-19-1Q Gas-electric hybrid slip ring 99mm with 1 channel pneumatic、3 channels power and 16 channels signal
Gas-electric hybrid slip ring
1-16 channel gas rotary joint, can be combined with any electric slip ring

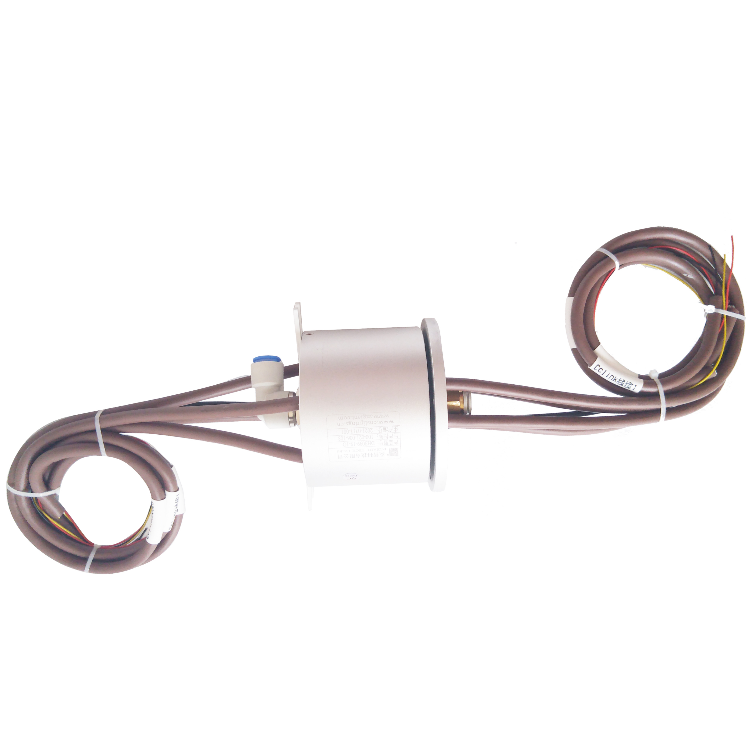

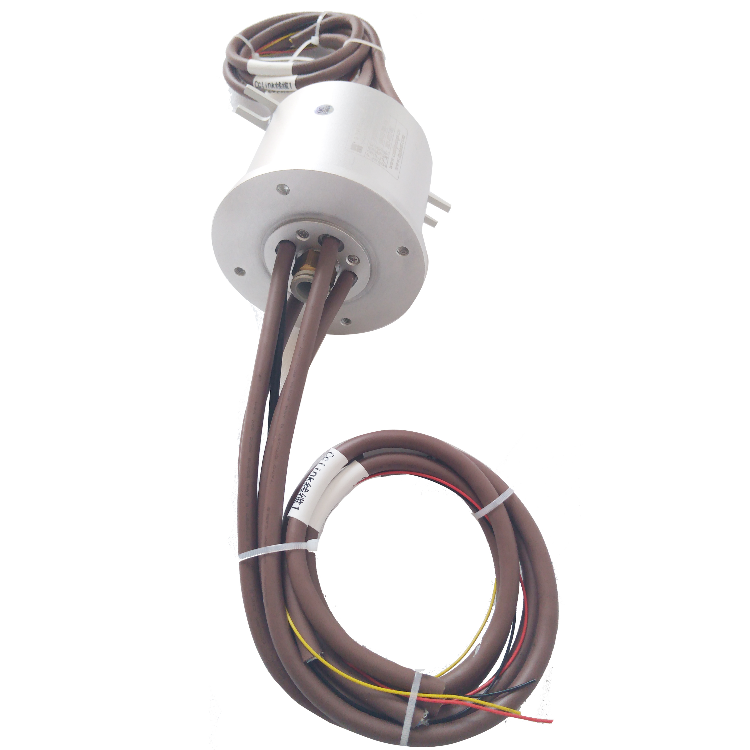

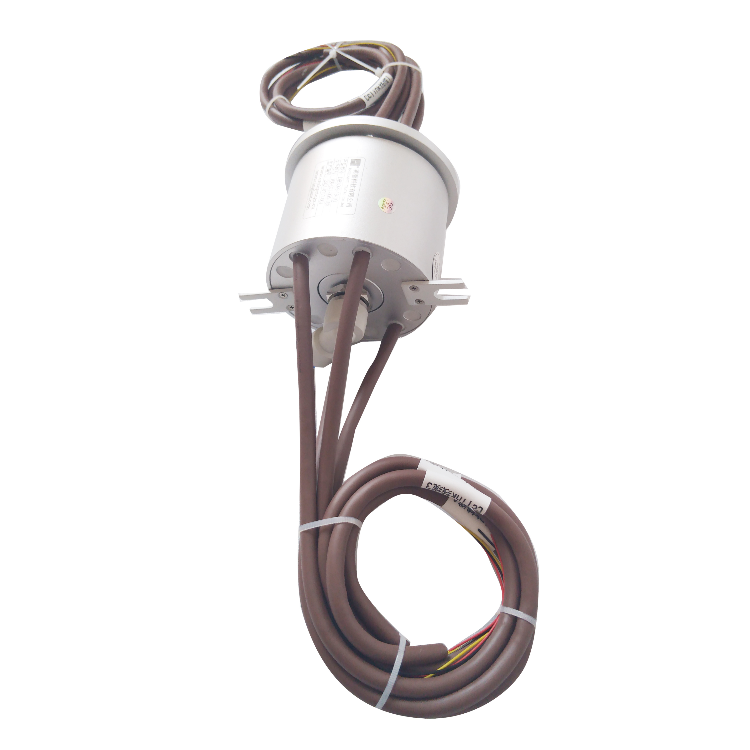

DHS099-19-1Q Gas-electric hybrid slip ring is a solid flange structure with an outer diameter of 99mm, combining 1 channel 1Mpa compressed air, 3 channels 5A power supply and 16 channels 2A signal. 360° rotation to transmit power, signal, gas. Gas-electric hybrid slip ring has the characteristics of high integration, small size, long life and high degree of customization.
The function of the gas-electric hybrid slip ring is to make the transmitted circuit more stable and reliable while rotating, thereby reducing its loss, power outage and interference.
Features:
- 360-degree rotation and simultaneous transmission of gas, power signal and other media.
- Supports 1/2/3/4/5/6/8/10/12/16/24 gas channels.
- Supports 1~128 power lines or signal lines.
- Standard interfaces include G1/8″, G3/8″, etc. The size of the gas pipe can be customized according to customer requirements.
- Can transmit compressed air, vacuum, hydraulic oil, water, hot water, coolant, steam and other media. Special requirements such as high speed and high pressure can be customized according to requirements.
Typical applications:
- Automated control systems: such as robots, automated production lines, machine tools and other equipment;
- Medical equipment: such as electronic micro-scalpels, precision instruments and other equipment;
- Offshore drilling: such as dredgers, large cranes and other equipment;
- Aerospace: such as solar tracking platforms, aircraft engines and other equipment.
|
DHS099-19-1Q |
|||
|
The main parameters |
|||
| Number of circuits | 19 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Gas slip ring parameters:
| Number of channels: | 1; |
| Flow hole: | ∅10; |
| Connector air pipe: | ∅12; |
| Medium: | compressed air; |
| Maximum pressure: | 1Mpa. |

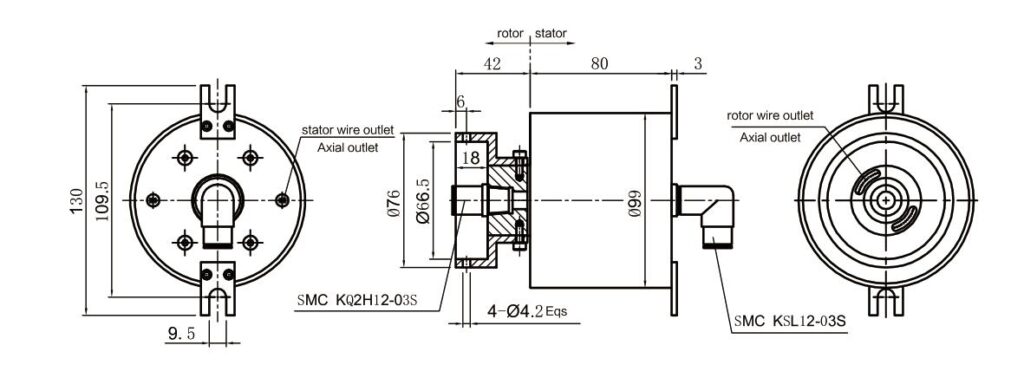

Standard product outline drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
