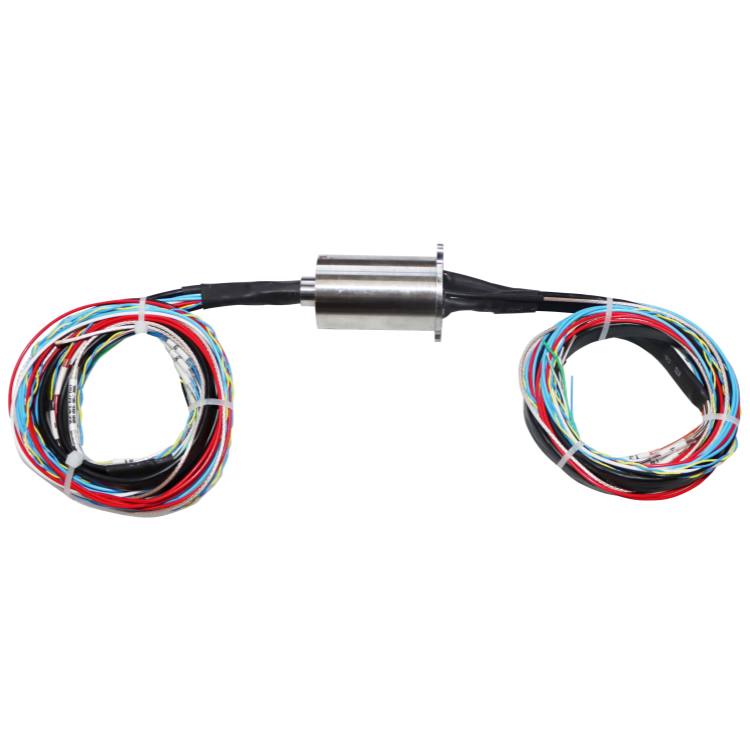

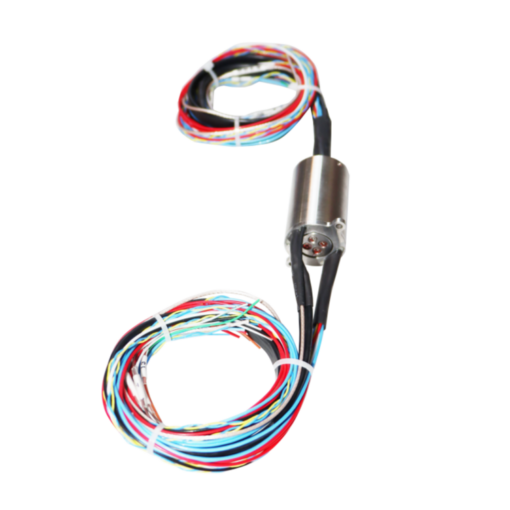

DHS024-20-002 HD-SDI conductive slip rings HD media equipment interface conductive slip ring
HD-SDI Conductive Slip Ring – DHS Series
HD-SDI conductive slip rings are based on HD multimedia interfaces and are used for the rotational transmission of uncompressed audio and video signals. High-definition video slip rings include HDMI slip rings, SDI slip rings, 1080P conductive slip rings, etc., which are widely used in new technology fields such as radio and television, photography, video, and VR.
Customize various types of high-definition signals, standard DC-3GHz frequency, high-definition conductive slip ring supports HDMI/SDI/VGA signal transmission, up to 10.2Gbps bandwidth.
Features
- Contact gold to gold contact
- Support 1080P, 720P video signals
- Light weight, compact structure, small installation space requirement
- Stable performance, no packet loss and crosstalk, small insertion loss and large return loss
|
DHS024-20-002 |
|||
|
The main parameters |
|||
| Number of circuits | 20 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product drawing:
Our advantage:
- Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warranty, our goods are guaranteed for 12 months from date of sale, under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
- Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
