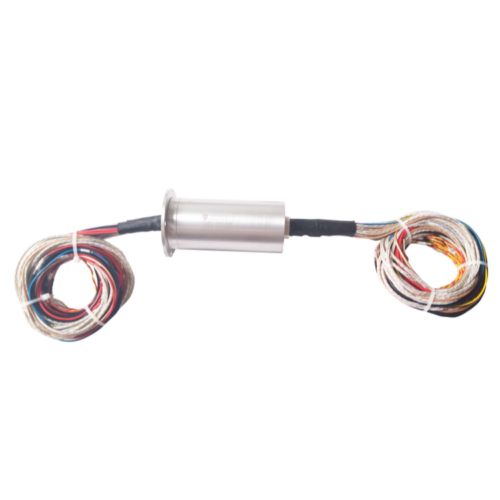

DHS045-40-002 45mm HD-SDI slip ring 1080P HD signal slip ring flange installation
HD-SDI slip ring 1080P HD signal sliding ring flange installation
DHS045-40-002 HD-SDI slip ring is specially designed to transmit high-definition (1080P) video signals and ordinary signals. Support 2 channels HD-SDI high definition signal (coaxial cable). It can be combined with the rotary joint to transmit uncompressed high-quality video signals.
Stable transmission of 2K/4K/1080P resolution high-definition video signals
High bandwidth, up to 10.2Gbps, support HDMI1.4 version
High rate, up to 2.97Gbps, support 3G-SDI
Optoelectronic combination, optoelectronic transmission supporting solutions
Product Features
- Using imported components and high-frequency signal processing technology from the United States, it transmits 1080P, HD-SDI video, current and signals under 360° continuous rotation;
- Lower noise, long life; low torque, smooth rotation;
- Electrical noise <0.01Ω, supports DC~3GHz high-speed data.
- The product adopts the US military surface treatment process and super-hard gold plating treatment to ensure extremely low resistance fluctuation and ultra-long working life.
Typical applications
- HD monitoring system
- HD video photography
- Radar communication
- VR real scene
|
DHS045-40-002 |
|||
|
The main parameters |
|||
| Number of circuits | 40 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
