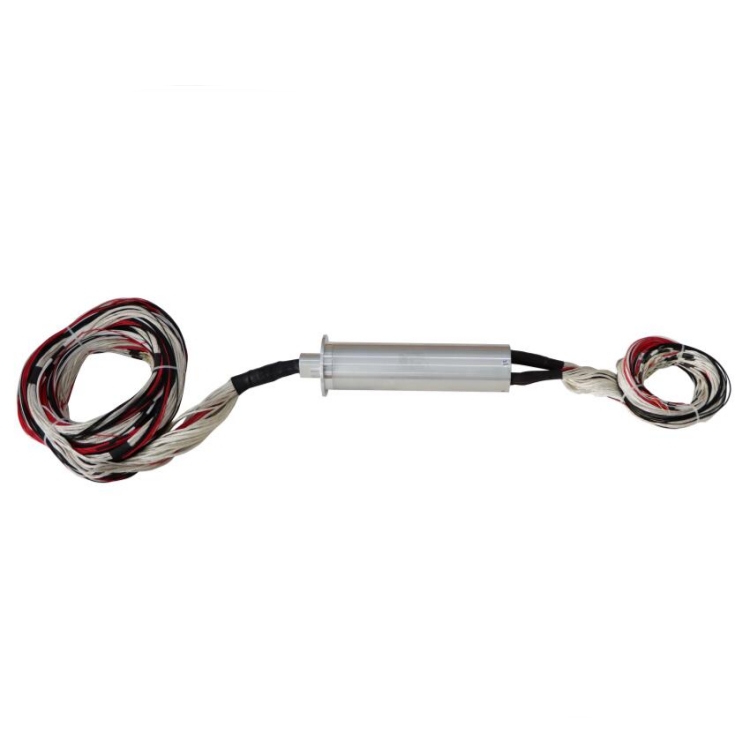

DHS062-87 HD-SDI slip ring (1080p) including power and electrical signal transmission
HD-SDI Slip Rings
Loss-free transmission of high-frequency image and sound signals via HDMI (UHD, 4K, 8K, etc.)
Advantages of the HD-SDI slip rings
HD-SDI slip rings are used where no compromises in transmission quality and freedom of movement are permitted. Therefore, HD-SDI slip rings are particularly advantageous for their field of application for the following reasons:
- Designed for HD-SDI applications
- Rugged housing made of thick-walled, corrosion-free aluminium
- Ingress protection class IP51 as standard, higher protection classes available on request
- Corrosion-free gold-gold signal transmission in the slip ring
- large variety of types
Everything about the HD-SDI slip ring is designed for its dedicated use. The smooth rotatability, even with fast right-left changes, makes perfect camera pans possible. The housing is made of robust aluminium and is perfectly protected against corrosion. The mounting point is also made of this rustproof material. This means that shooting in the open air is always guaranteed.
|
DHS062-87 |
|||
|
The main parameters |
|||
| Number of circuits | 87 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Shielding against interfering signals, Impact-resistant housing, acid-resistant housing material, Corrosion-resistant enclosure,Minimum internal wear and tear, Very reliable signal transmission, Long-life ball bearings.
- Company advantage: Find out about the different slip rings in our current overview. Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
- Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
