DHS035-34 Ingiant out diameter 35mm HD Slip Ring with 6 channels power and 28 channels signal
HDMI HD Slip Ring DHS035

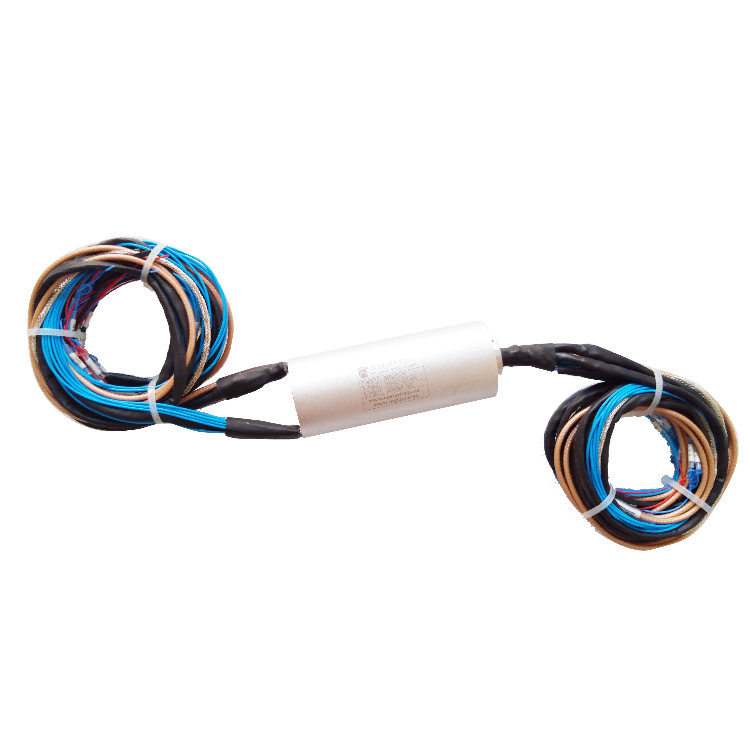

DHS035-34 HD slip ring is specially designed to transmit high-definition (1080P) video signals and ordinary signals. It can be combined with the rotary joint to transmit uncompressed high-quality video signals.
Product features
- Contacts are gold-to-gold contact
- Support 1080P, 720P video signals
- Light weight, compact structure, small installation space requirements
- Stable performance, no packet loss and crosstalk, small insertion loss and large return loss
Typical applications
- Small network system
- Video surveillance system
- Stage control system
- Industrial automation control
- Various network cables and RJ45 interface transmission
| DHS035-34 | |||
| The main parameters | |||
| Number of circuits | 34 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
- Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
