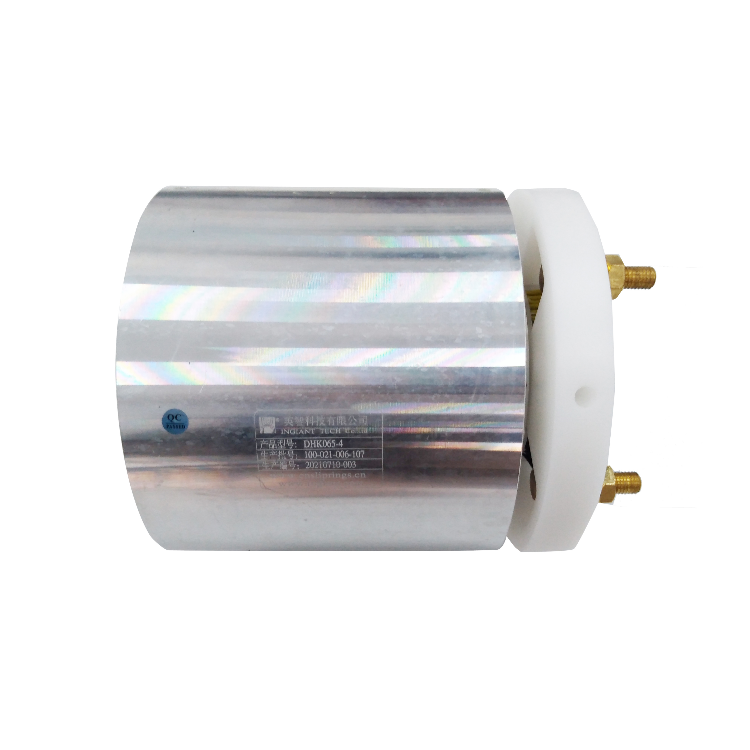

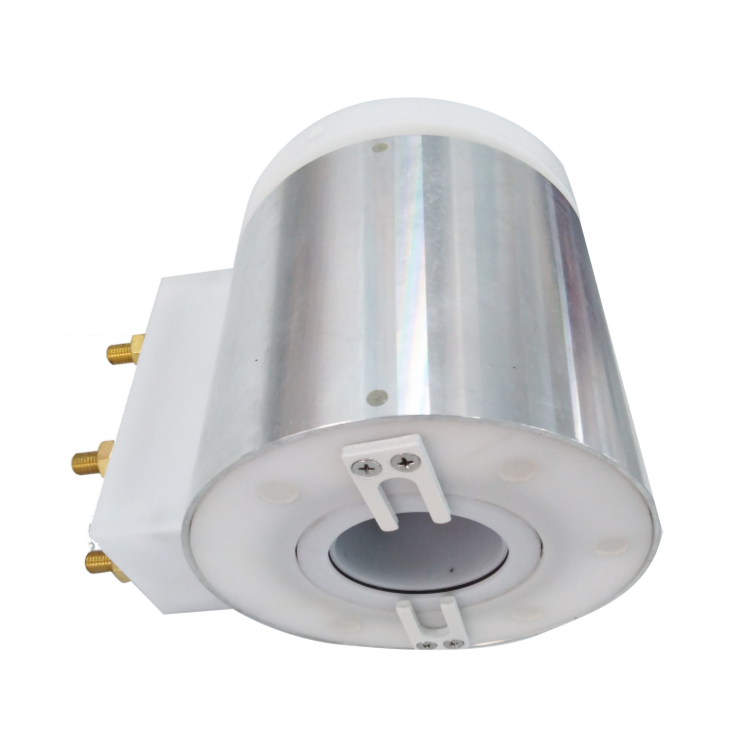

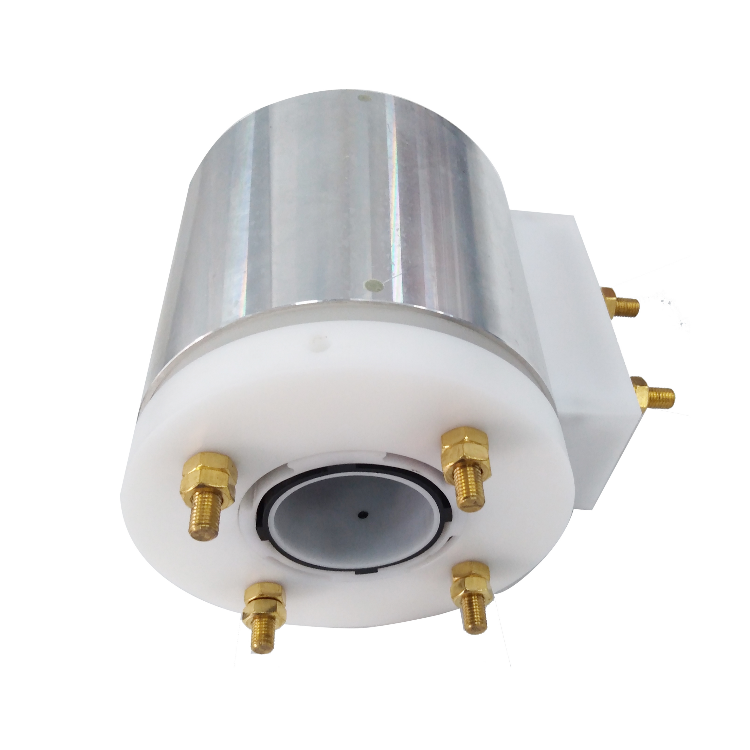

DHK065-4 Ingiant high current slip ring with through hole 65mm and 4 channels total 520A binding post connections

High Current Slip Rings/High Voltage Slip Rings

Available for Custom, Max. 1000A, Max. 6000V

The DHK065-4 High Current Slip Rings has a through hole of 65mm and is suitable for rotary applications with a through hole ≤ 65mm. The rotor and stator are connected by binding posts, which are often used in applications above 100A. Sensor signals or thermocouple signals can be added according to customer requirements. The product uses imported materials, has low contact resistance and small temperature rise, and can meet high-level reliability requirements.

Features

• Integrated structure design for easy installation
• 70A, 150A or higher current are available
• Various sizes with internal or external thread installation
• IP 51 (IP54-IP68 can be customized)
• Signals combination with high current is available

High current slip rings and high voltage slip rings are used for communication devices, large machining centers, antenna radar systems, large cranes, mining machines, and large cable reels. High voltage sometimes requires more than 2,000 volts and high current sometimes requires 500 amperes.
