DHK080-102-5A high precision through hole slip ring hole diameter 80mm 102 channels 5A
Through hole slip ring

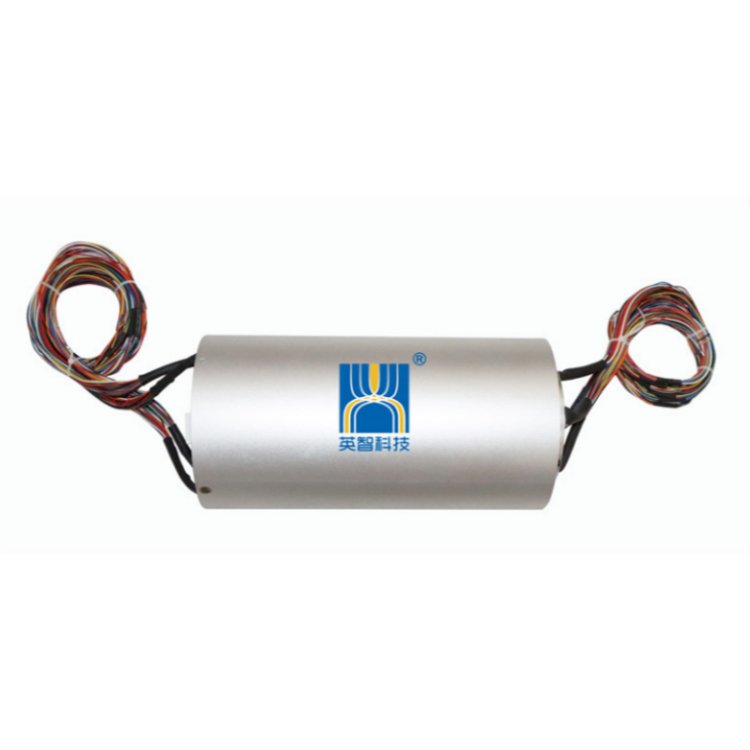

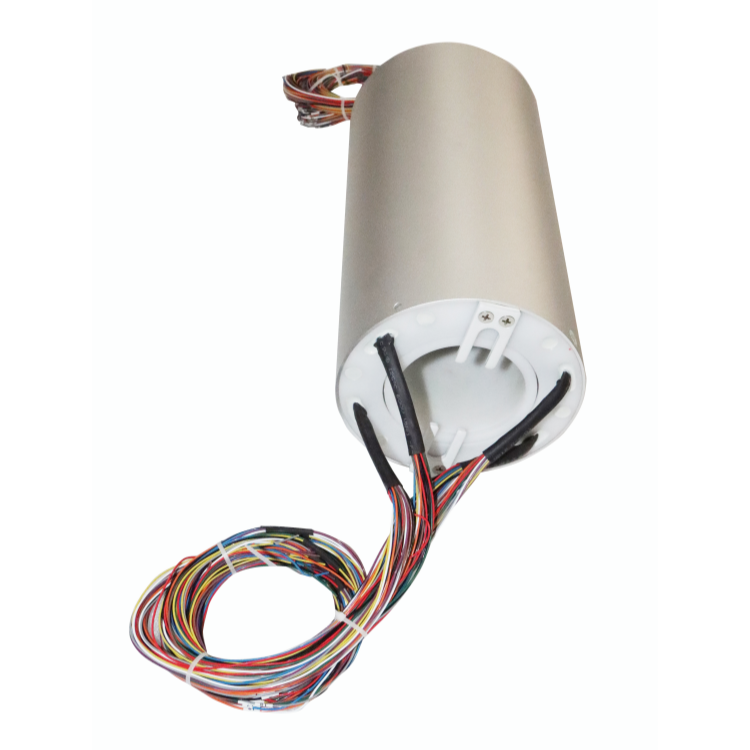

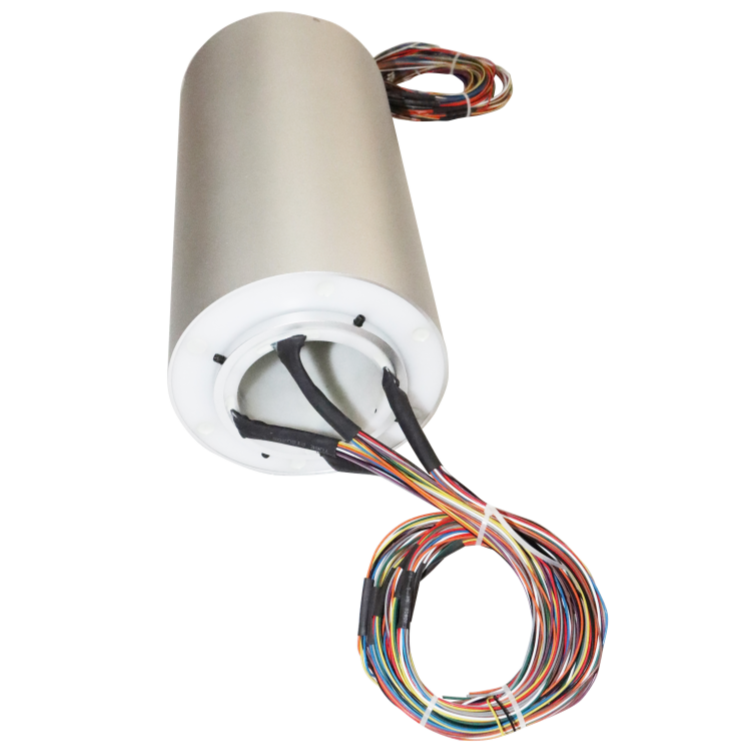

DHK080-102-5A series through hole slip ring, inner hole 80mm, outer diameter 155mm, suitable for rotating electromechanical systems with diameter less than 80mm, standard power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 Ring, used to transmit power or signals in a 360-degree rotating system.
Features
- Multi-contact brush contact design, long service life
- Integrated structural design, easy to install
- Power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings
- IP 54 protection level, IP68 can be customized
- Can integrate multiple signals and be compatible with multiple data protocols
- Maintenance-free use
Typical applications
- Automatic machinery
- Cable drum
- Robot/Rotation Sensor
- Display/display equipment
- Packaging machinery
- Industrial turntable
- Medical/pharmaceutical equipment
- Marking machine
- Filling machinery
- CNC machine tools
|
DHK080-102-5A |
|||
|
The main parameters |
|||
| Number of circuits | 102 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

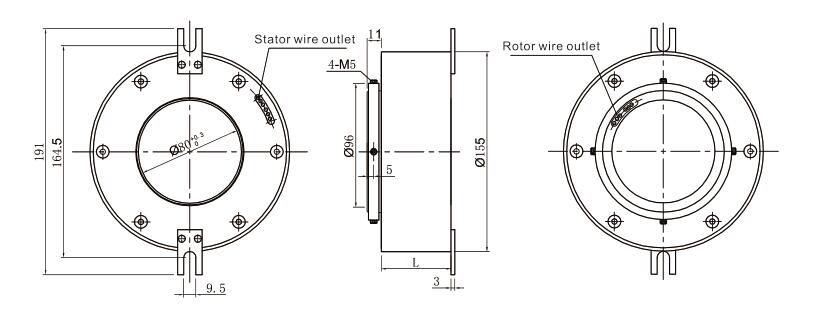

Standard product outline drawing:
Our Advantage
- Product advantage: Small, medium and large slip rings with hollow shaft and high-quality bearing technology for long service life and high rotation speeds. Standardised and modularised design.Combined power and signal versions possible.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
