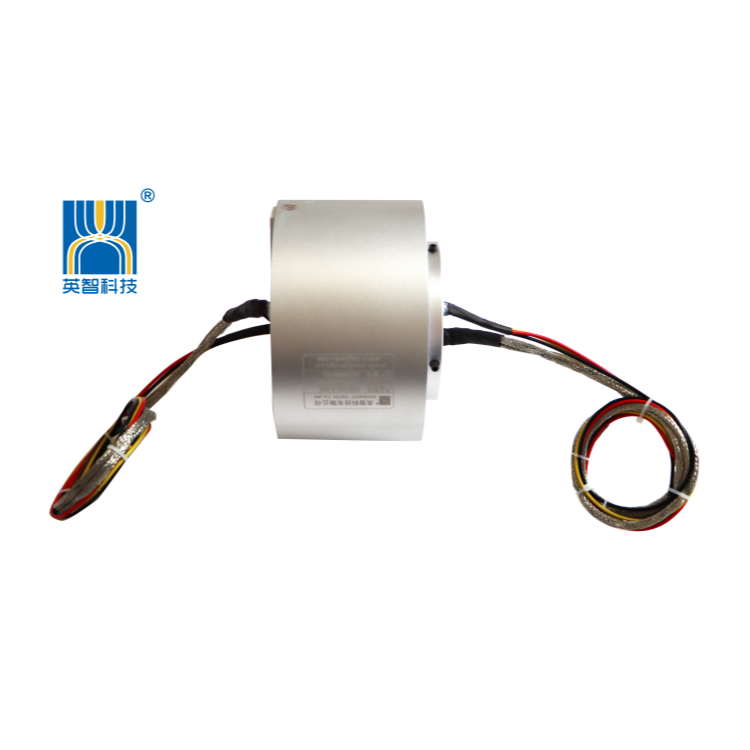

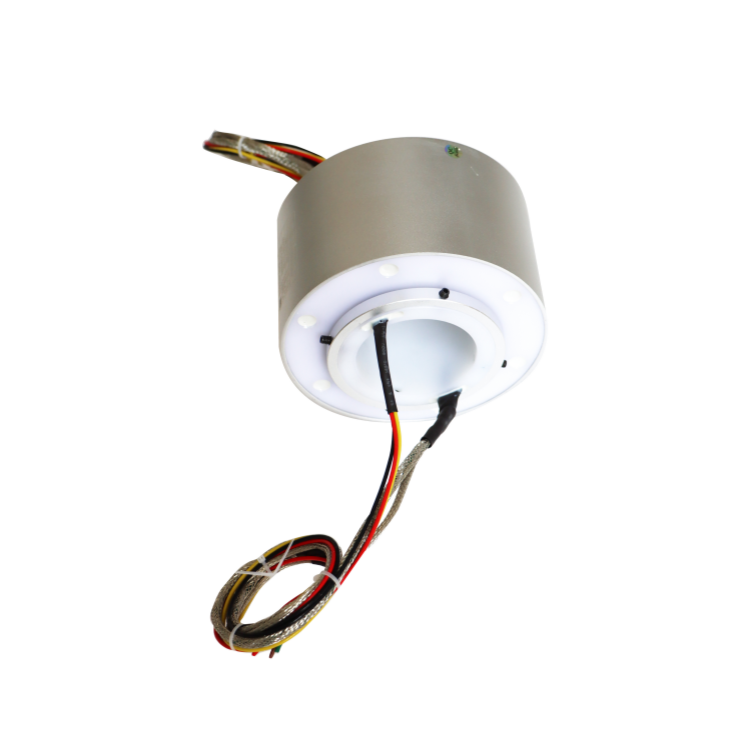

DHK065-6-10A hollow shaft conductive slip rings 6channels 10A for drying equipment
DHK065 series hollow shaft conductive slip rings, aperture 65mm, suitable for rotating electromechanical systems with a diameter less than 65mm, 6 channels of 10A each, used for 360-degree transmission of power or signals. Large-diameter slip rings are mostly used in drying equipment, merry-go-rounds, and amusement rides and rotating facilities.
Features
- Multi-contact brush contact design, long service life
- Integrated structural design, easy to install
- IP 51 protection level, IP68 can be customized
- Can integrate multiple signals and be compatible with multiple data protocols
- Maintenance-free use
Typical applications: medical equipment, CNC turntables, CNC machining centers, automation equipment, robotic arms, wire reels, cable reels, packaging machinery, filling equipment, wind turbines, etc.
|
DHK065-6-10A |
|||
|
The main parameters |
|||
| Number of circuits | 6 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

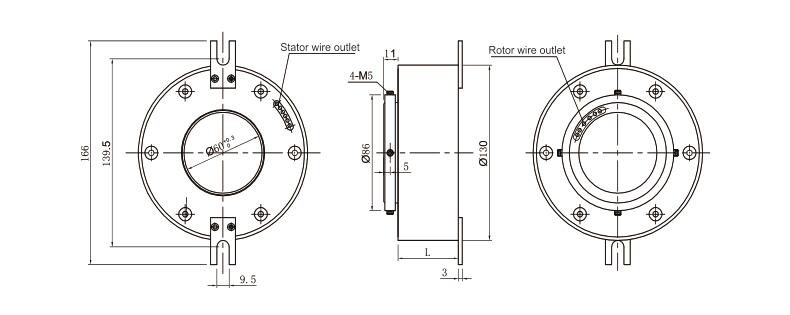

Standard product outline drawing:
Our Advantage
- Product advantage: Hollow shaft slip rings are an excellent solution for mounting on an axle or for cable feed-through due to their open interior. They can be used to supply power and data to a wide variety of applications. Among them are, for example, rotary switches, servo motors, control valves or wheel hub motors.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Customized advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
