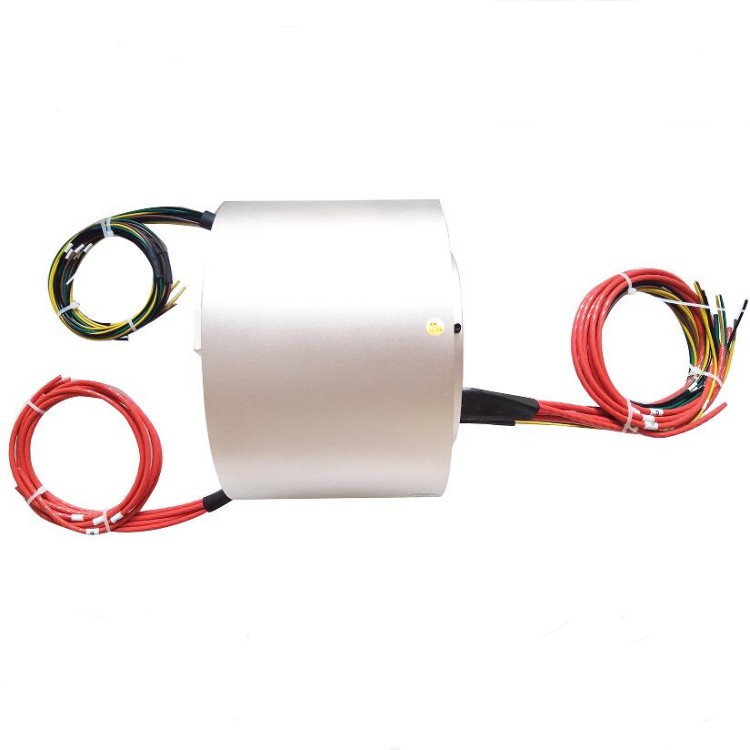

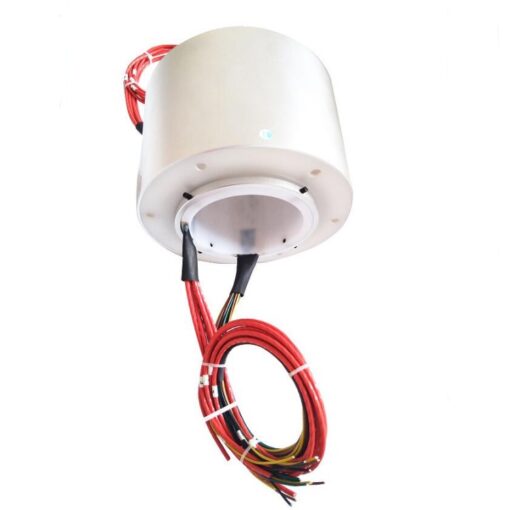

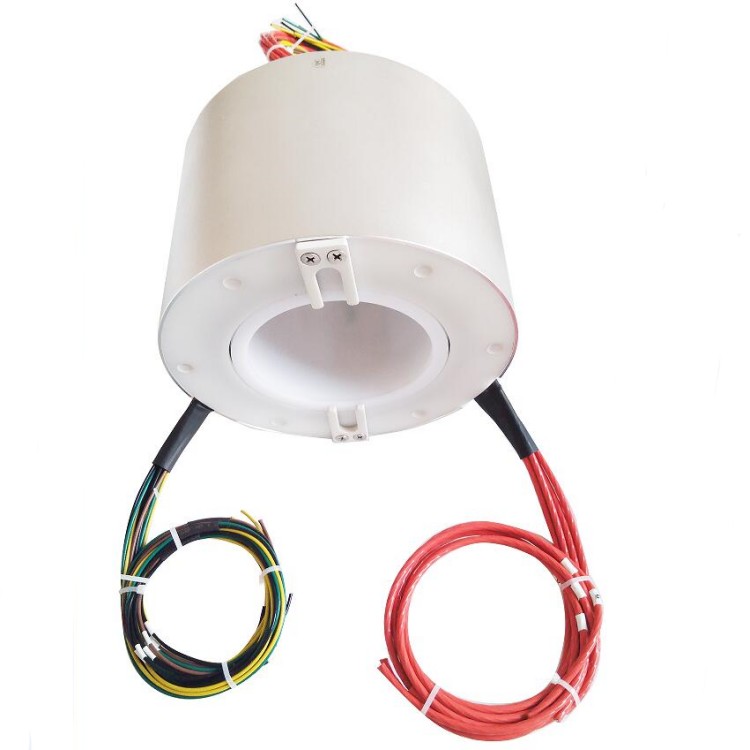

DHK110-22 hollow shaft slip rings with big hole diameter 110mm 22channels
Hollow shaft slip rings are used in packaging machines to transmit power and control signals between the stationary controls and the rotating packaging elements.
The range of applications and areas of use for rotating unions in packaging technology is very wide. In addition to standardized solutions for the logistics industry and parcel shipping, many products are packaged under special environmental conditions. These can be chemical liquids or gases in potentially explosive areas, or food and pharmaceutical products in clean rooms.
|
DHK110-22 |
|||
|
The main parameters |
|||
| Number of circuits | 22 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

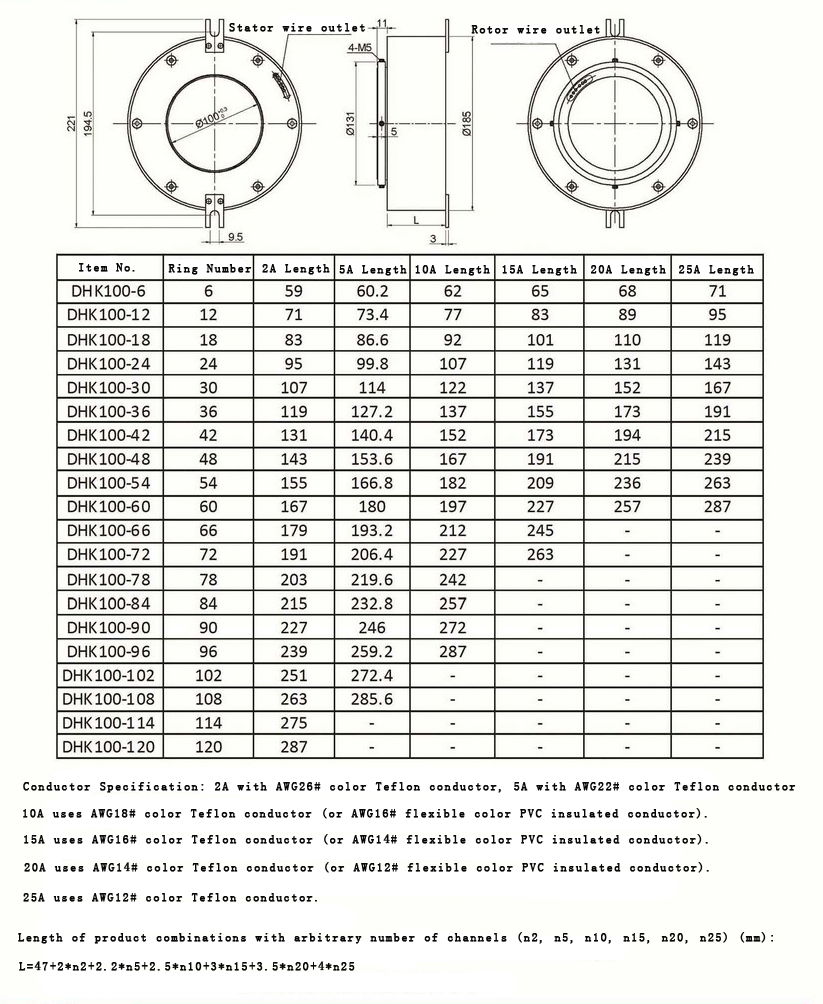

Standard product outline drawing:
Our Advantage：
- Product advantage: The special advantage of hollow shaft slip rings is their space-saving installation. The slip ring is simply slid onto a component that is installed anyway. Additional auxiliary constructions are not necessary for the installation of these modules.
- Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
- Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
