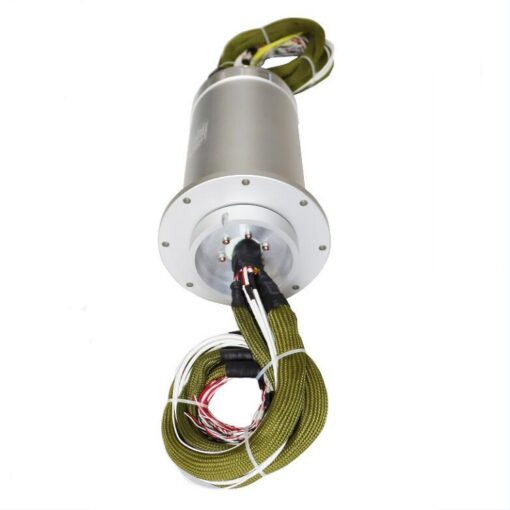

Ingiant custom solid shaft slip ring 128mm diameter 93channels for engineering machinery
Conductive slip rings are widely used in weaponry, security monitoring, wind turbines, stage lighting, amusement facilities, packaging machinery, robotic arms, engineering machinery, medical machinery, maritime ships, cable reels, measuring instruments and other industries. Next, INGIANT Technology will tell you about the 4 key links in the selection of raw materials for conductive slip rings.
The key link of raw material selection of conductive slip ring, conductive slip ring is also called slip ring, collector ring or middle rotary joint. In practical application, several key links of raw material selection must be paid attention to:
- The actual working situation of slip ring installation.
- Is there any vibration?
- Cable sheath characteristics of conductive slip rings.
- Problems such as working speed and wear resistance of the slip ring.
|
DHS128-93 |
|||
|
The main parameters |
|||
| Number of circuits | 93 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard Product Outline Drawing：
Our advantage:
- Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
