DHS085-26-1Q Ingiant gas-electric slip ring out diameter 85mm with 1 channel Pneumatic rotary joint and 26 electrical channels

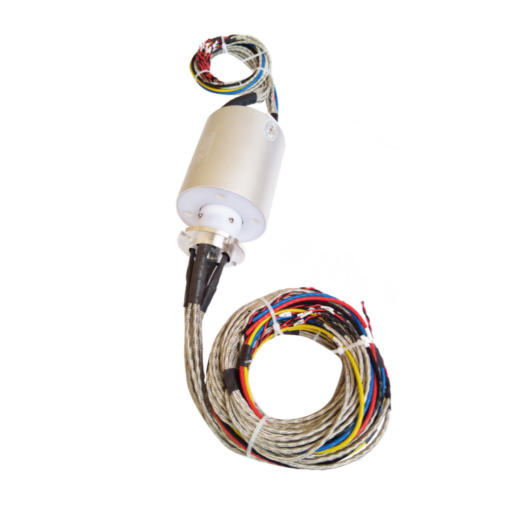

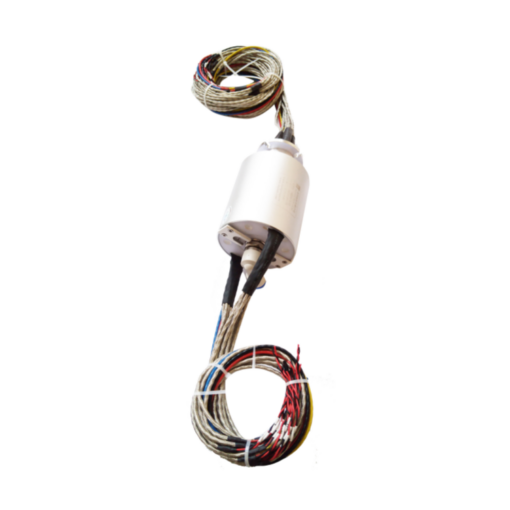

DHS085-26-1Q series gas-electric slip ring
1 in 1 out, gas + electric integrated slip ring, G1/4″ interface, gas pipe 6∼10mm
DHS085-26-1Q gas-electric slip ring is a single-channel rotary joint with 26 electrical channels. It can rotate 360 degrees to transmit compressed air, steam, vacuum and other gas media. It supports 4mm, 6mm, 8mm, 10mm, 12mm gas pipes. It can not only transmit gas, but also mix and transmit various currents from 2A to 800A. Pneumatic rotary joints have the advantages of small size, light weight and small torque.
Product Features
- 1 inlet and 1 outlet gas + electric mixed, single-channel pneumatic rotary joint;
- G1/4″ connector, 6-10mm pipe diameter;
- Can mix power lines, signal lines, industrial buses, control lines, induction lines, etc.;
- Standard flange installation, can also be customized hollow shaft installation;
- Can pass the media: compressed air, nitrogen, chemical mixed gas, steam, cooling water, hot water, hot oil, etc.
Typical applications: industrial robots, wind turbines, rotating platforms, packaging machinery, electric vehicles, petrochemicals, aerospace and shipbuilding, etc.
DHS085-26-1Q series gas-electric slip ring
1 in 1 out, gas + electric integrated slip ring, G1/4″ interface, gas pipe 6∼10mm
|
DHS085-26-1Q |
|||
|
The main parameters |
|||
| Number of circuits | 26 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Pneumatic rotary joint parameters:
| Number of channels: | 1 channel |
| Flow hole: | ∅8 |
| Joint trachea: | ∅10 |
| Connecting thread: | G1/4 |
| Medium: | Compressed air |
| Maximum pressure: | 1Mpa |
Standard product outline drawing:
Our advantage:
- Product advantage: Ingiant offers a variety of standardized cap style slip rings. Optional gold alloy contact, silver alloy beam brush contact, and military grade treatment can be applied to the surface of the metal ring, which stabilizes quality and improves service life, especially suitable for rotating transmission of weak signals. It can also be integrated with other types of rotary joints for design and manufacturing, such as Ethernet, fiber optic rotary joints (FORJ), hydraulic, RF, etc.
- Company advantage: Provide OEM and ODM service, over 20 years of industry-related industry experience. Advanced production equipment workshop, including mold, production assembly workshop, craft workshop. The R&D team includes electronic engineers, structural engineers and exterior designers.
- Excellent after-sales and technical support service: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Provide technical information and technical training support on a regular basis.
