DHS050-16-1Q Ingiant gas-electric slip ring out diameter 50mm with1 channel rotary joint + 16 channels power/signal
OD50mm series single channel gas-electric slip ring
1 in 1 out, gas + electric rotary joint, ∅4 flow hole
DHS050-16-1Q gas-electric slip ring is a single-channel rotary joint with 16 channels electrical channels. It can rotate 360 degrees to transmit compressed air, steam, vacuum and other gas media. It supports 4mm, 6mm, 8mm, 10mm, 12mm gas pipes. The gas-electric slip ring can not only transmit gas, but also mix and transmit various currents. It has the advantages of small size, light weight and small torque.
Product Features
- Single-channel pneumatic rotary joint, outer diameter 50mm, M5 thread, optional 4 and 6mm air pipes;
- Can mix power lines, signal lines, Ethernet, industrial bus, control lines, solenoid valves, induction lines, etc.;
- Standard flange installation, customizable hollow shaft installation;
- Can pass media: compressed air, hydrogen, nitrogen, chemical mixed gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.
Typical applications:
Automated non-standard equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, diaphragm coating equipment, packaging film equipment for soft-pack batteries, laminating equipment, electronic semiconductor industrial automation equipment; optoelectronic flat panel display (LCD/LCM/TP/OLED/PDP) industrial automation equipment, testing equipment, other automated non-standard professional equipment, etc.
OD50mm series single channel gas-electric slip ring
1 in 1 out, gas + electric rotary joint, ∅4 flow hole
|
DHS050-16-1Q |
|||
|
The main parameters |
|||
| Number of circuits | 16 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Pneumatic slip ring technical parameters:
| Number of channels: | 1 channel； |
| Flow hole: | ∅4； |
| Medium: | compressed air; |
| Maximum pressure： | 1Mpa。 |

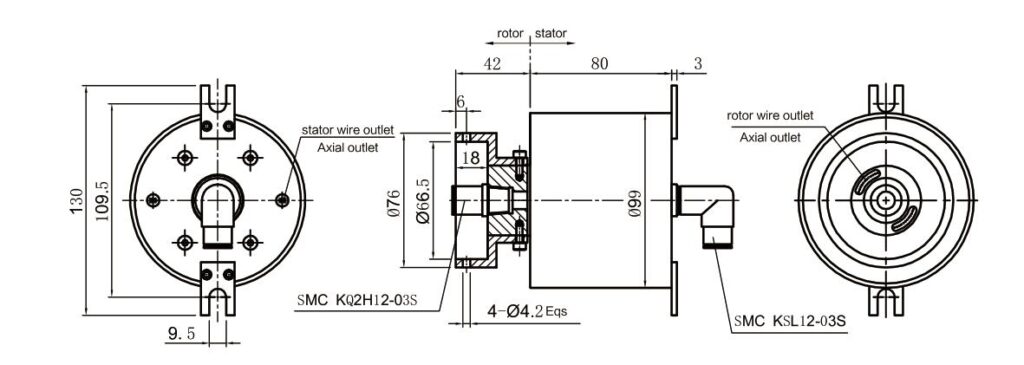

Standard product outline drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry. The company has provided various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. The mature and perfect solutions and reliable quality have been highly recognized in the industry.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
