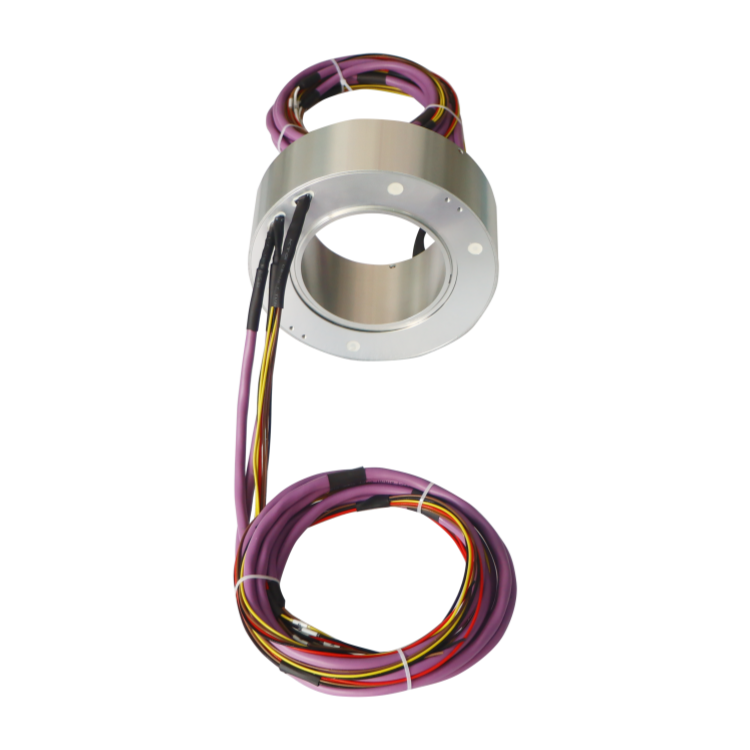

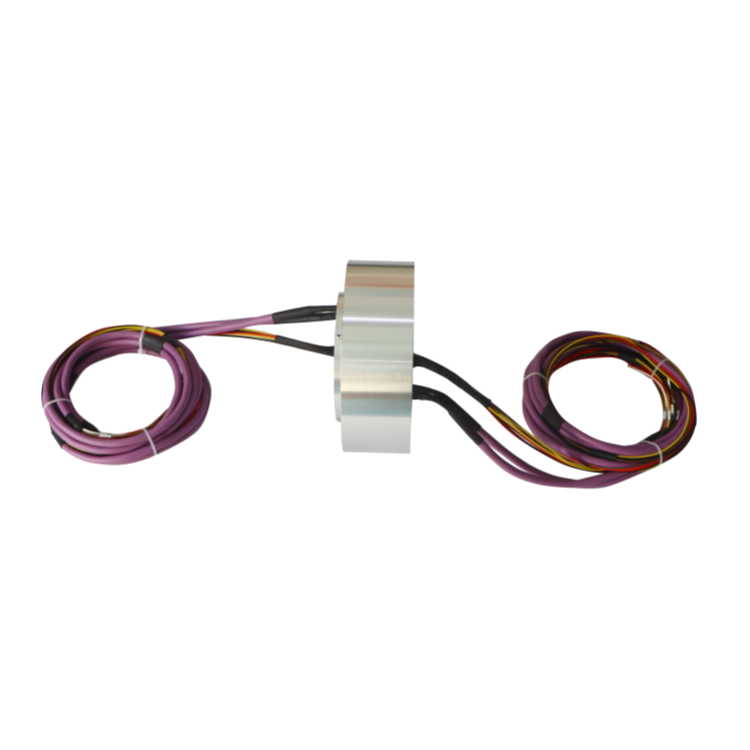

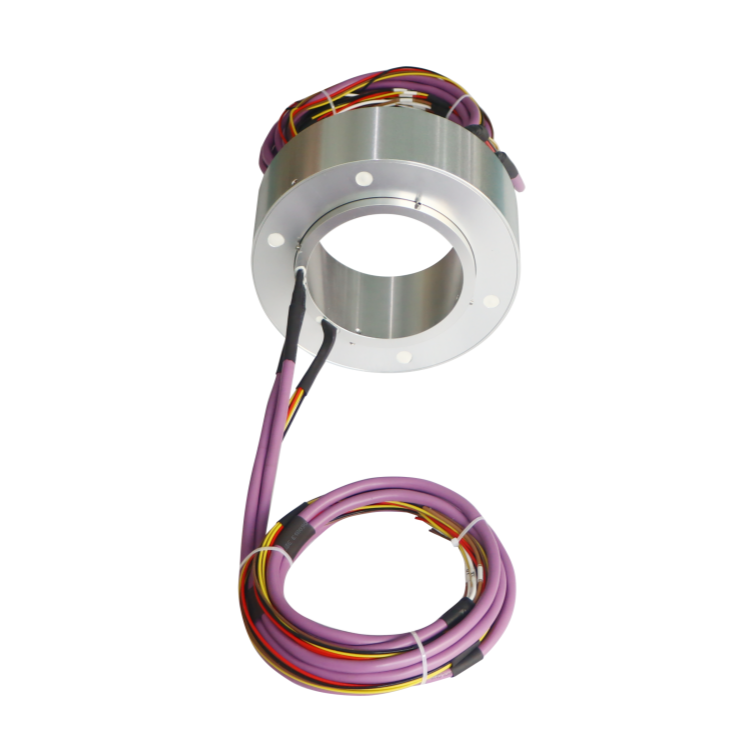

DHK120-12-002 Ingiant ID 120mm through hole slip ring with 12 channels power and signal used for automation equipment
Through hole slip ring – ID 120mm series
Support customization, product inner diameter 3-500mm, current 2-1000A
DHK120-12-002 series through hole slip ring, inner hole 120mm, suitable for rotating electromechanical systems with diameter less than 120mm, Standard model supports 1-48 power rings(0-20A/ring) or 1-96 signal rings(0~5A/ring), used for 360-degree rotation Transmit power or signals in the system. Through hole slip ring totally meets with continuous transmission of power, signals, weak current, high current, and high voltage under 360-degree unrestrained rotations. Low torque, low electrical noise, low loss, and easy maintenance as the main features.
Features
- Multi-contact brush contact design, long service life
- Integrated structural design, easy to install
- Power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings
- IP 54 protection level, customizable
- Can integrate multiple signals and be compatible with multiple data protocols
- Maintenance-free use
Through hole slip ring – ID 120mm series
Support customization, product inner diameter 3-500mm, current 2-1000A
|
DHK120-12-002 |
|||
|
The main parameters |
|||
| Number of circuits | 12 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

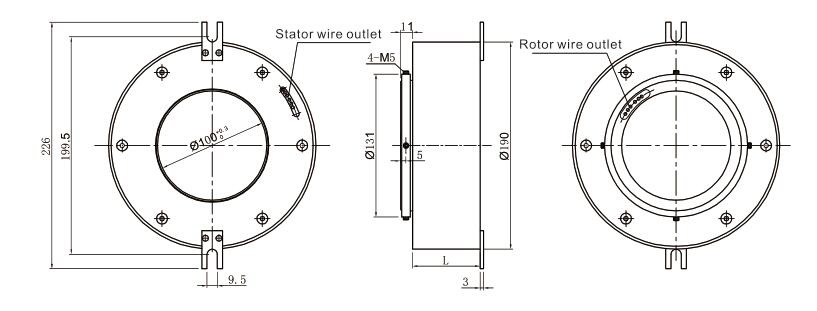

Standard product outline drawing:
