Industrial bus slip ring: DHS022 miniature slip ring series

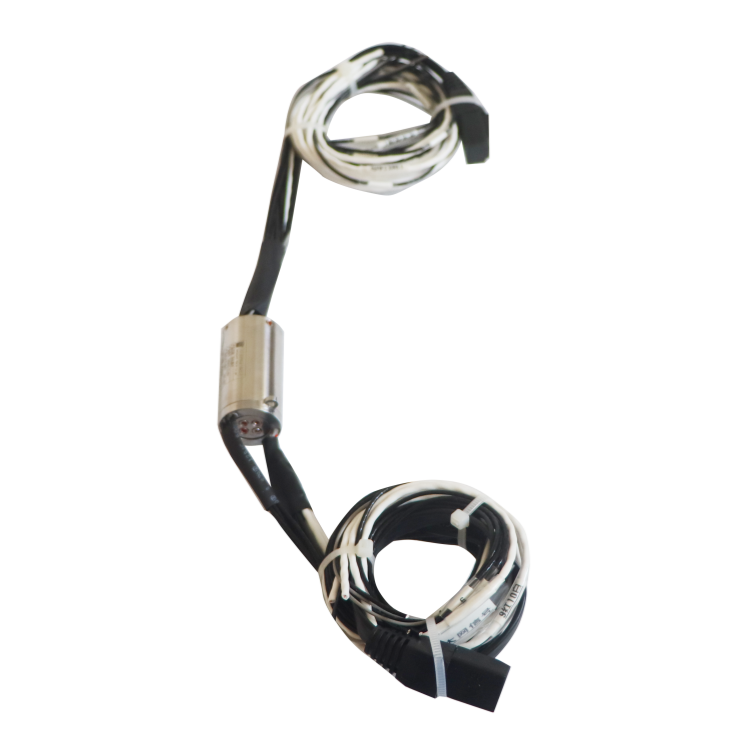

DHS022-22-003 industrial bus slip ring, outer diameter 22mm, suitable for rotation applications requiring outer diameter ≤ 22mm. Standard models support 1-22 channels to meet different signal (1channel Ethernet signal, 2 channels HD-SDI 1080P) transmission. Industrial bus slip ring is a special slip ring designed and developed for various buses (including CC-LINK, EtherCAT, EnterBUS, CanBUS, ProfiBUS, ProfiNET, DeviceNet, RS422, RS485, PLC), etc. It adopts a special composite plating process to ensure long-term contact reliability, no packet loss, no alarm, and no delay.
Features:
- Multi-contact brushes, long service life
- Integrated structure design, easy installation
- Support customized requirements
- Support high-speed transmission protocol
- No packet loss, no crosstalk, patented structure design
- Bus types include: RS232/RS485, Inter bus, Device Net, CC-Link, SERCOS interface, Control Net, Field buses, Can open, Profibus, Mod bus, Fipio, USB 2.0 High speed, Fast Ethernet, Certified to 1000-BaseT, HD-SDI 1080P
Typical applications: bus communication between various encoders, servo motors and various controllers in industrial automation control, such as lithium battery equipment, various high-end intelligent equipment, various laser equipment, etc.
Industrial bus slip ring: DHS022 miniature slip ring series
|
DHS022-22-003 |
|||
|
The main parameters |
|||
| Number of circuits | 22 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
- Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
- Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.
