DHK110-50 Ingiant Industrial bus slip ring through hole 110mm transmission current, motor, encoder, Ethernet, etc signals

Industrial bus slip ring

Customization of Conductive Slip Rings for Industrial Data Bus

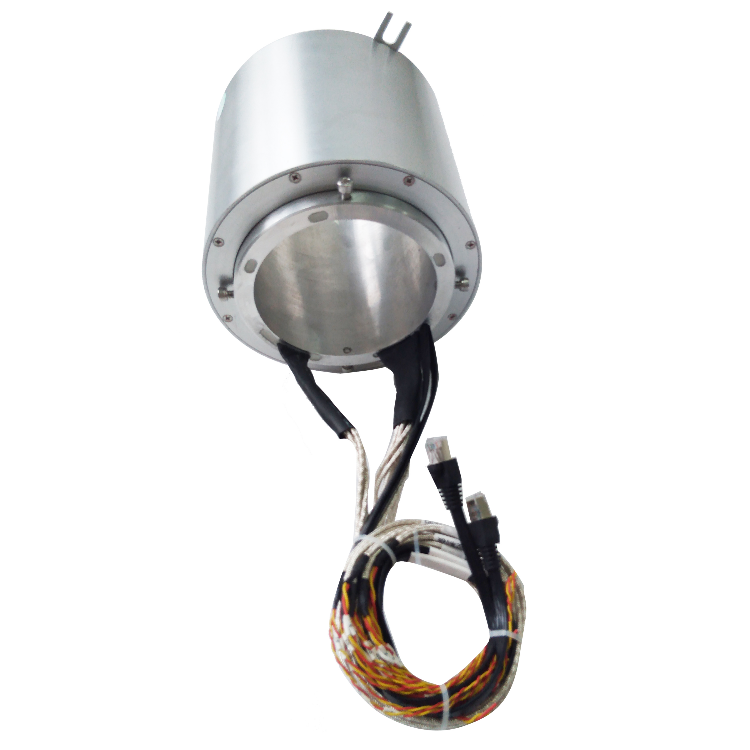

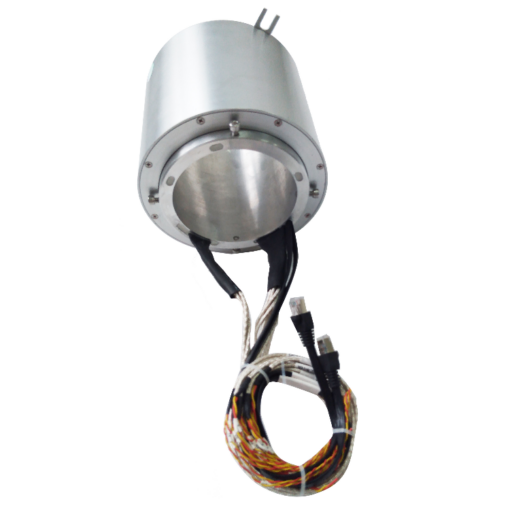

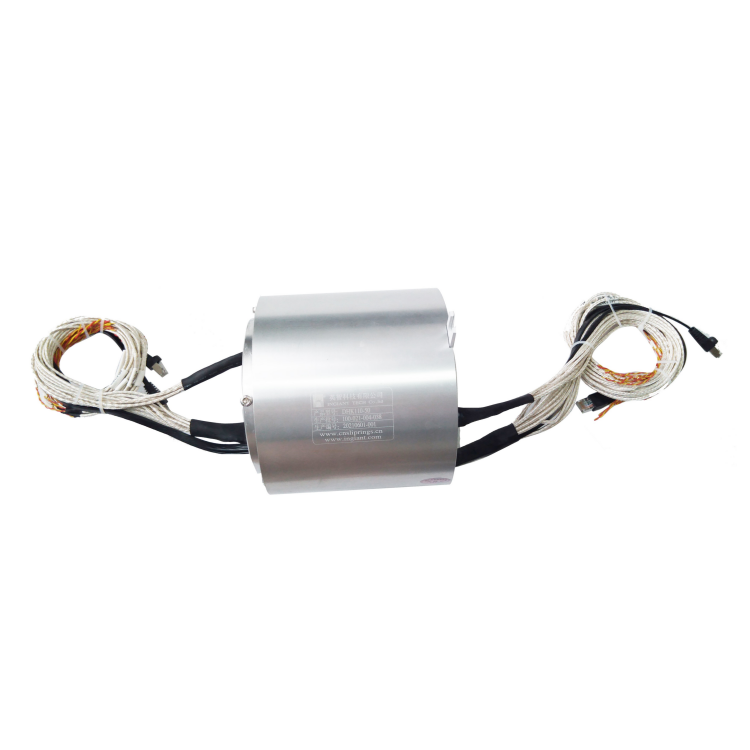

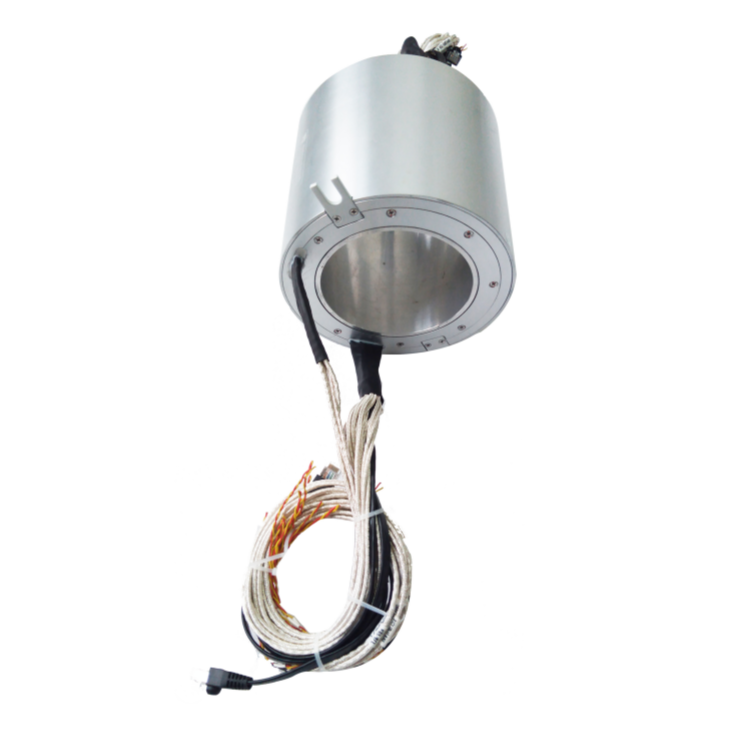

DHK110-50 series industrial bus slip ring has an inner diameter of 110mm and an outer diameter of 170mm, with a through-hole structure, suitable for rotating applications that require an outer diameter of ≤ 110mm. Support 50 rings to meet the transmission of different signals (Analog, RS422, CAN, 1000M Ethernet, Encoder, ControlNet, etc.).

• Multi contact brush, long service life
• Integrated structural design, easy to install
• Support customized needs
• Supports high-speed transmission protocols
• No packet loss, no crosstalk

Product Features

• Can transmit signals such as current, sensors, control circuits, Ethernet, etc
• Stable performance, high return loss, low insertion loss, anti crosstalk
• Unique coating process, long lifespan
• Optional RJ45 network interface
• Compatible with data communication protocols

Industrial bus slip ring is a specialized slip ring designed and developed for various types of bus industrial bus slip rings, including DeviceNET bus slip ring, CanBus bus slip ring, CC-LINK bus slip ring, EtherCAT bus slip ring (including EnterBUS, ProfiBUS, ProfiNET, RS422, RS485, PLC), etc. It adopts a special composite coating process to ensure long-term reliability of contact, no packet loss, no alarm, and no delay. Mainly used for bus communication between various encoders, servo motors, and controllers in industrial automation control, such as lithium battery equipment, various high-end intelligent devices, various laser equipment, etc
