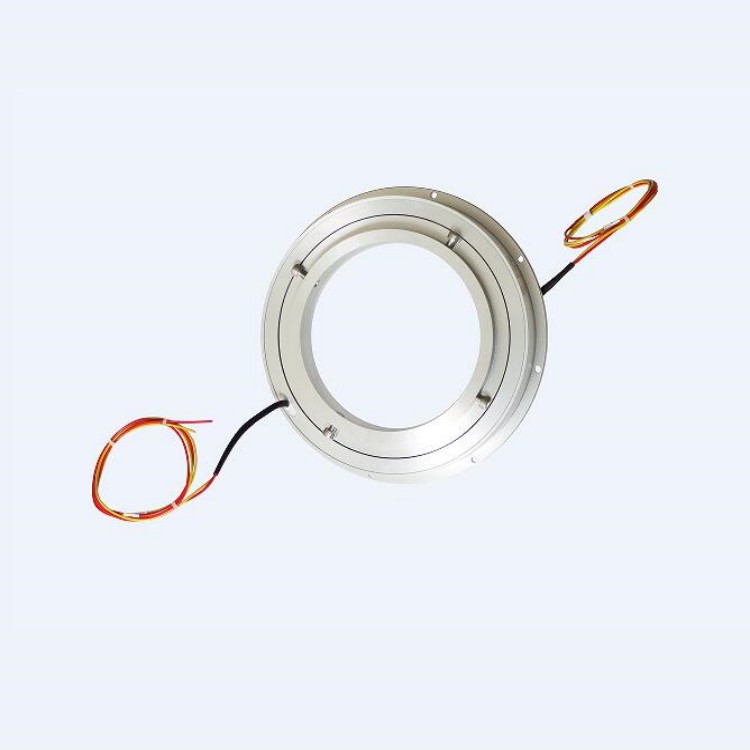

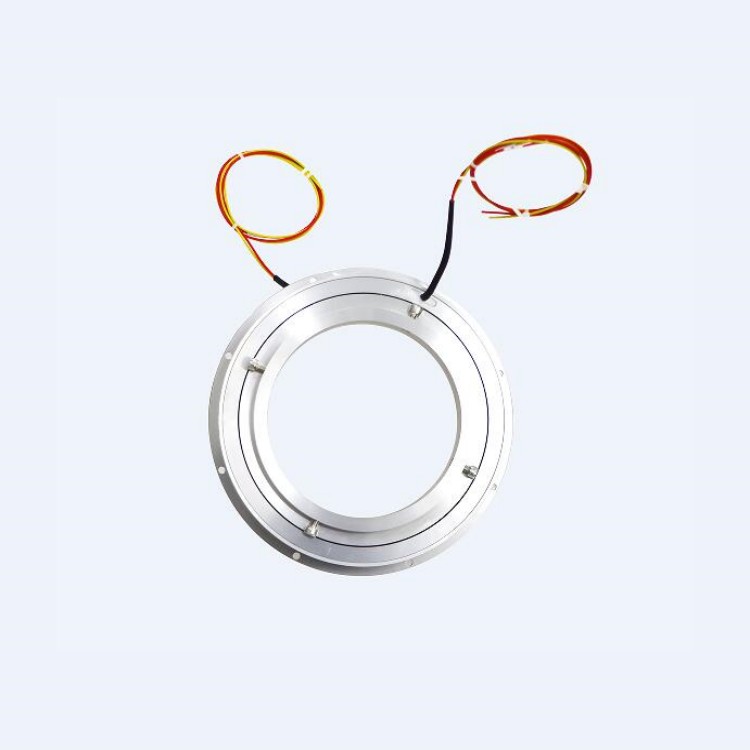

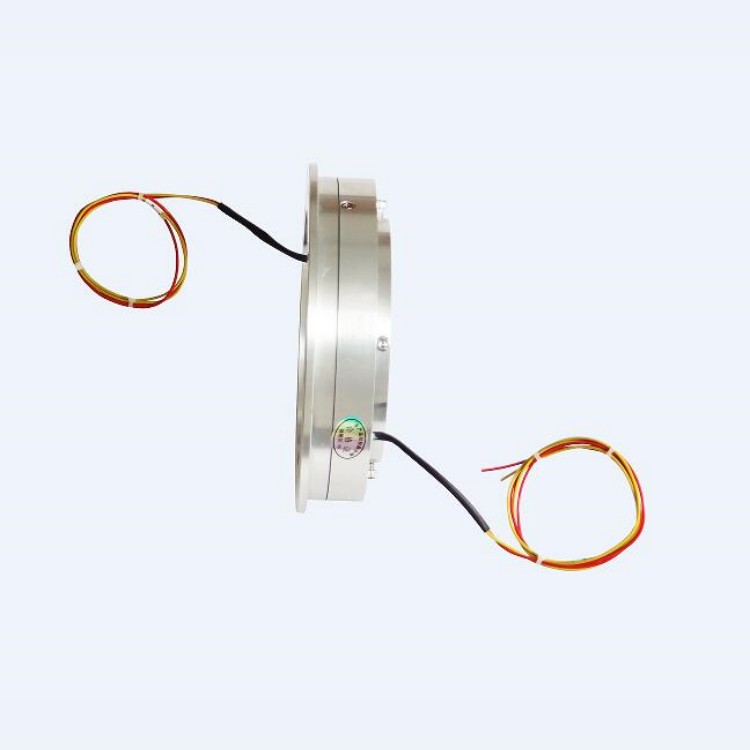

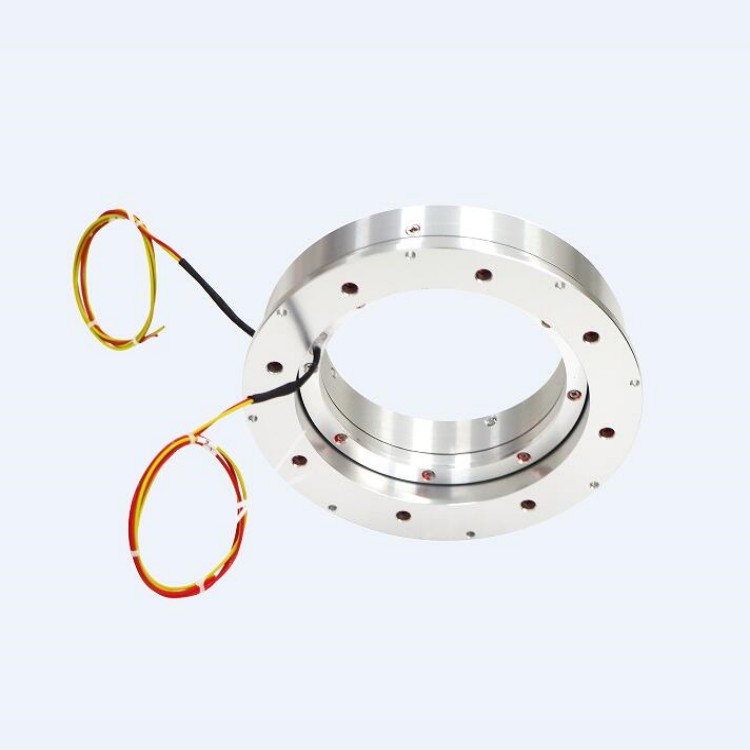

Ingiant Pancake Slip Rings 2 channels for Power and Signal Transmission.
PCB slip rings without housing in ultra-flat design. Rotor PCB and brush holder for complete integration. Screw or adhesive mounting. Customised and combined power and signal versions possible.
Pancake slip rings for short shafts or especially many contacts. Pancake slip rings are the ideal solution for equipping short shafts with any number of contact options. These components get their name from their round, flat shape. This makes them look similar to pancakes. Other names for these components are flat slip rings or disc slip rings.
Their essential difference to conventional slip rings is that the transfer points are not arranged linearly, but vertically to the axis of rotation. This means that pancake slip rings can be very thin. In the vertical axis, however, they build up correspondingly high. This makes them ideal for installation positions where only a very short shaft is available but there is sufficient space in the transverse direction.
|
DHK100-2-5A |
|||
|
The main parameters |
|||
| Number of circuits | 2 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements.
Standard product outline drawing:
Our Advantage:
- Product advantage: They are only a few millimetres high and thus very space-saving along the longitudinal axis. the pancake slip rings are shielded to at least protection class IP 40, or IP51 or higher if desired. Another significant advantage of pancake slip rings is their expandability Another significant advantage of pancake slip rings is their expandability.
- Company advantage: Ingiant Technology has accumulated rich experience in developing and producing highly reliable conductive slip rings for many years, especially in large size slip rings, effectively improving product quality and yield, and saving costs for customers.
- Excellent after-sales : The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Provide technical information and technical training support on a regular basis.
