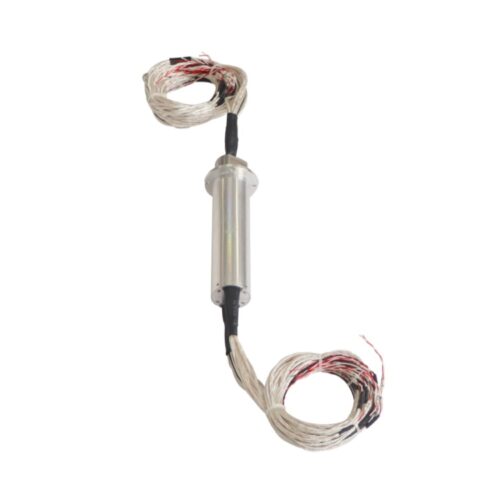

DHS040-30-006 Ingiant Rotor flange slip ring out diameter 40mm with 30 channels power and singal
Rotor flange slip ring: OD 40mm solid shaft slip ring
DHS040-30-006 Rotor flange slip ring outer diameter 40 mm, rotor part connection flange. The beam brush type multi-point contact is used to ensure reliable contact under extremely low friction. lt can be customized according to customer needs. The current is optional from 2 amperes to 2000 amperes, which can fully meet your different transmission schemes.
Product features:
- Solid slip ring, no through hole in the center, suitable for flange end face installation.
- Can achieve more routes and larger current.
- Transmit analog and data signals
- Compatible with data bus protocol
- Long life, maintenance-free
- Gold-gold contact, imported seal and special grade electroplating treatment
Typically applications:
- Medical equipment
- Wind power equipment
- Manufacturing and control equipment
- Robot, radar antenna
- IMagnetic actuator, rotary sensor
- Construction machinery, testing equipment, packing machinery
Rotor flange slip ring: OD 40mm solid shaft slip ring
|
DHS040-30-006 |
|||
|
The main parameters |
|||
| Number of circuits | 30 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- 1：Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- 2：Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
- 3：INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warranty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
