DHK070-20-1A Ingiant Standard through hole slip ring inner diameter 70mm with 20 channels 1A power

Through Hole Slip Rings – Standard ID 70mm Series
Available for Custom, Standard ID 3-500 mm, Current 2-1000A

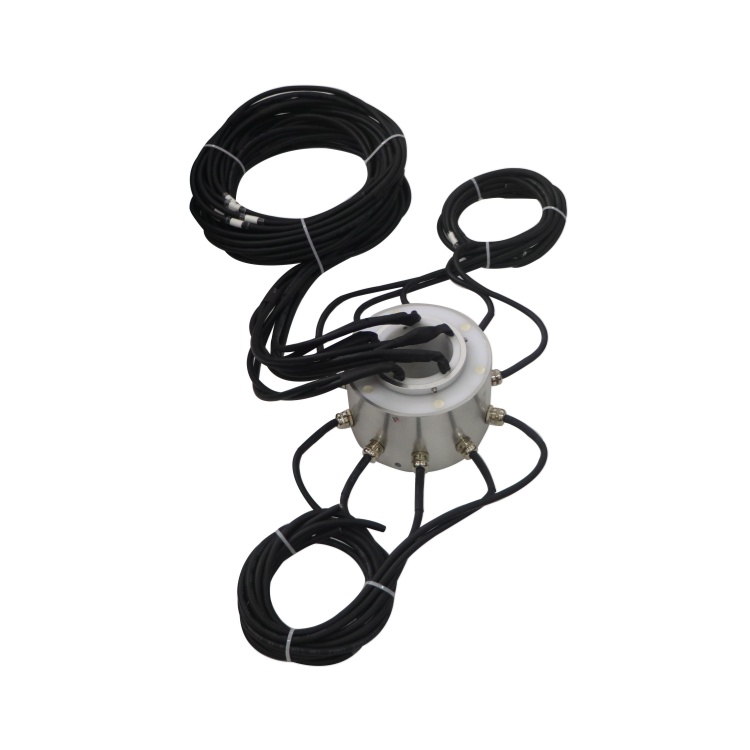

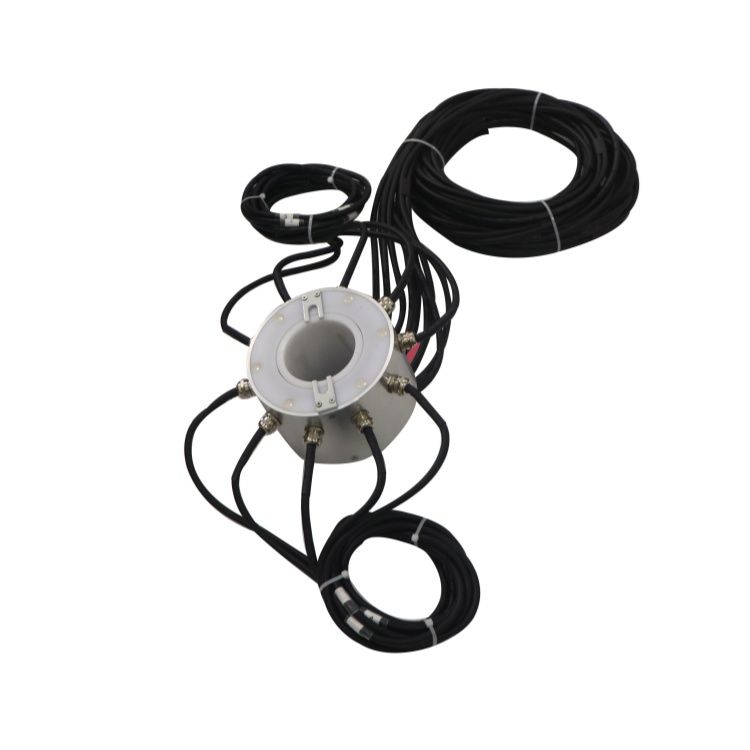

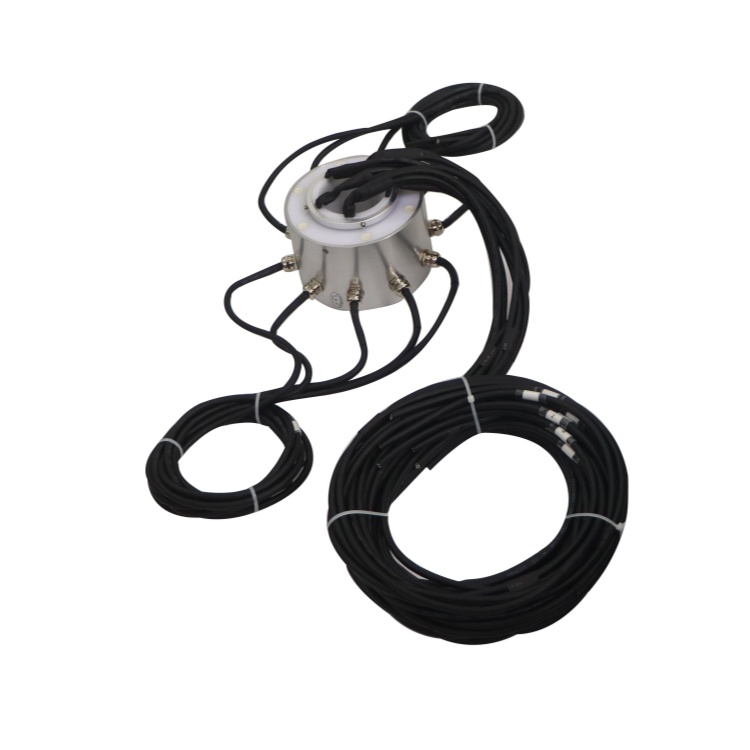

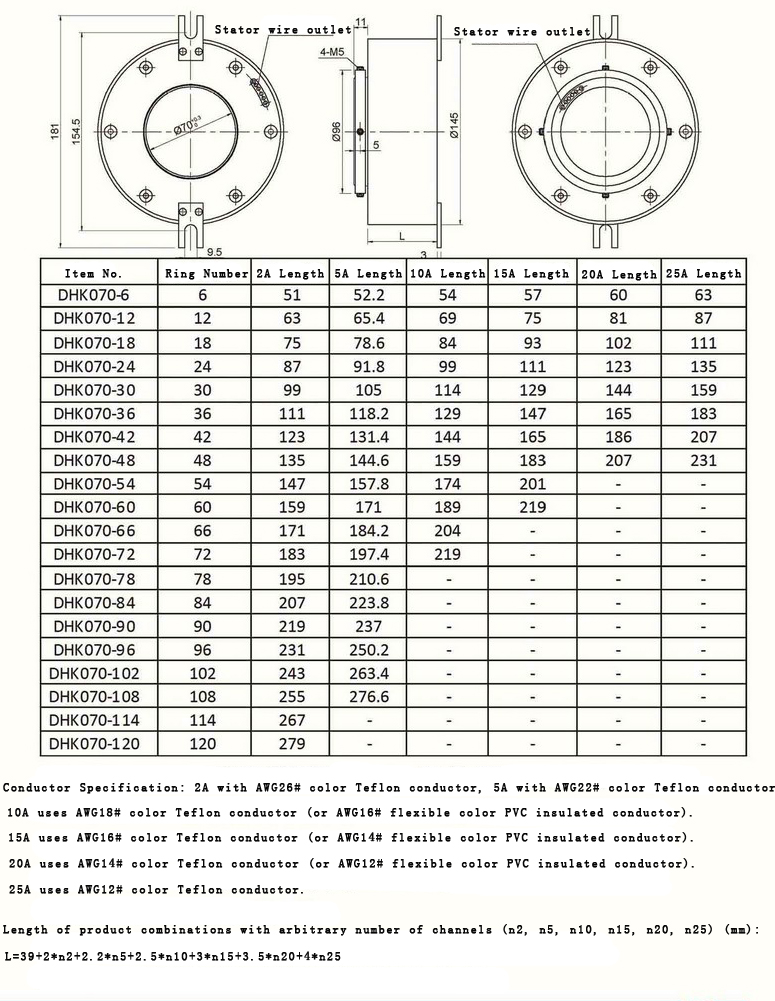

DHK070-20-1A Series standard through hole slip ring with through hole 70mm, OD 145mm, suitable for rotating application which requires a through hole ≤70mm. supports 20 power channels(1A/channel). Supports mixed transmission of signals and power, and can customize the number of circuits and current and voltage based on standard models. Through hole slip ring totally meets with continuous transmission of power, signals, weak current, high current, and high voltage under 360-degree unrestrained rotations. Low torque, low electrical noise, low loss, and easy maintenance as the main features.

Features

• Multi-point brush contact material ensures long life
• Integrated structure design, easy installation
• 20 channels 1A each
• IP 54 (customizable IP65-IP68)
• Compatible with two data bus protocols
• Free maintenance

Typical applications:
Radar, security equipment, entertainment equipment, various robots, manipulators, various airships, various wind power equipment, bottle blowing machines, light inspection machines, various turntables, amusement equipment, vehicle-mounted satellite antennas, ship-mounted satellite wires, cable reels, window cleaning equipment, revolving tables, revolving stages, revolving screens, revolving restaurants, electric engineering machinery, etc.
