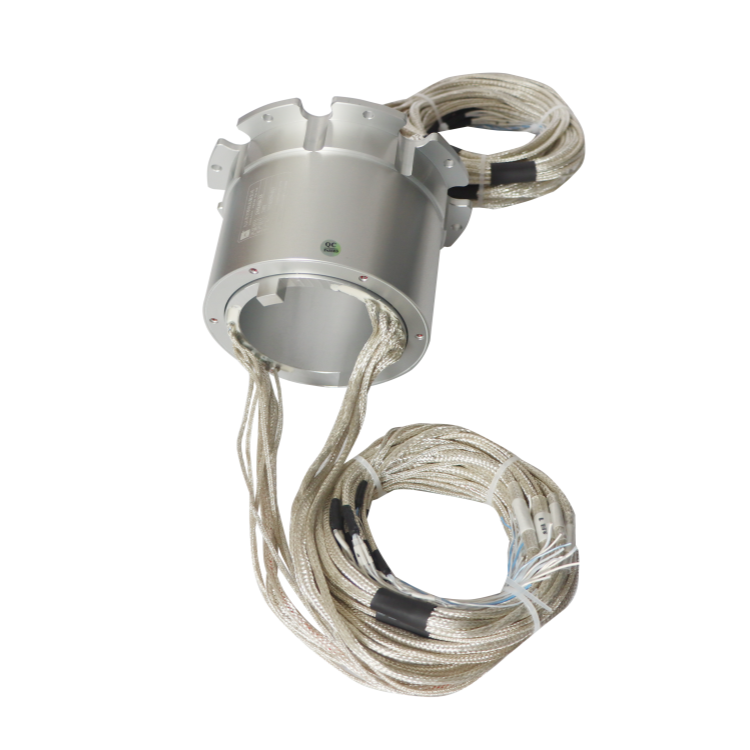

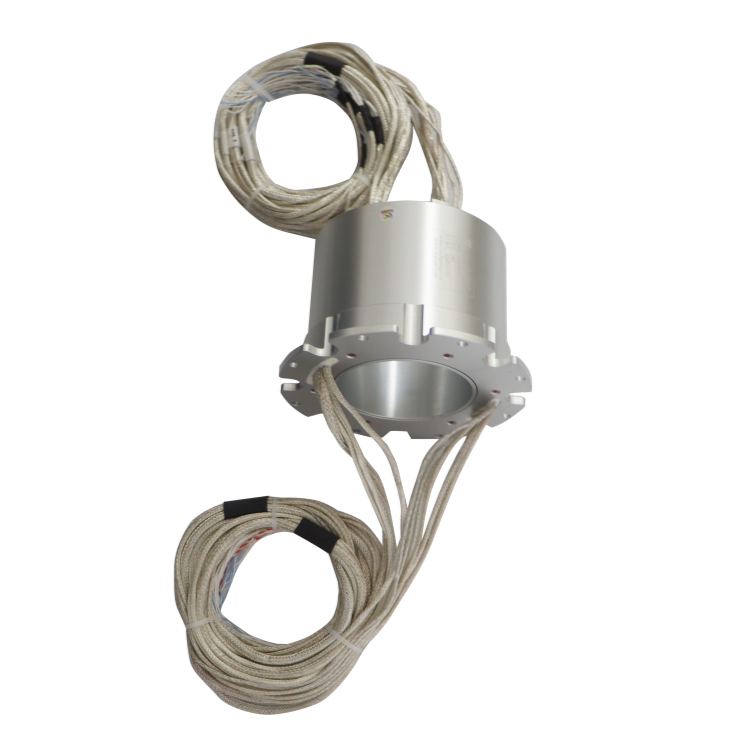

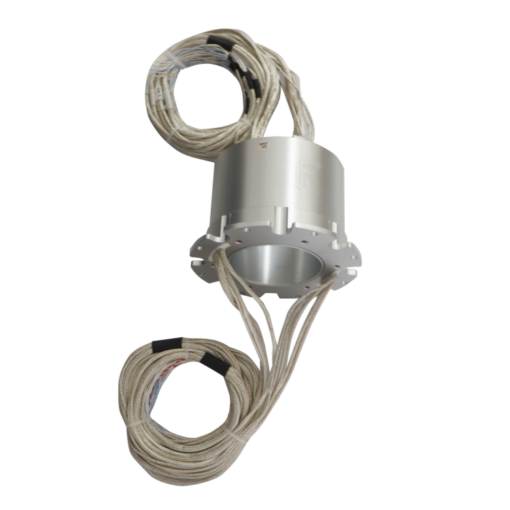

DHK080-33 Ingiant standard through hole slip ring hole diameter 80mm with 33 channels power and signal
Through hole slip ring ：Standard inner diameter 80mm
Customization supported, standardized products inner diameter :3-500mm, Current:2-1000A

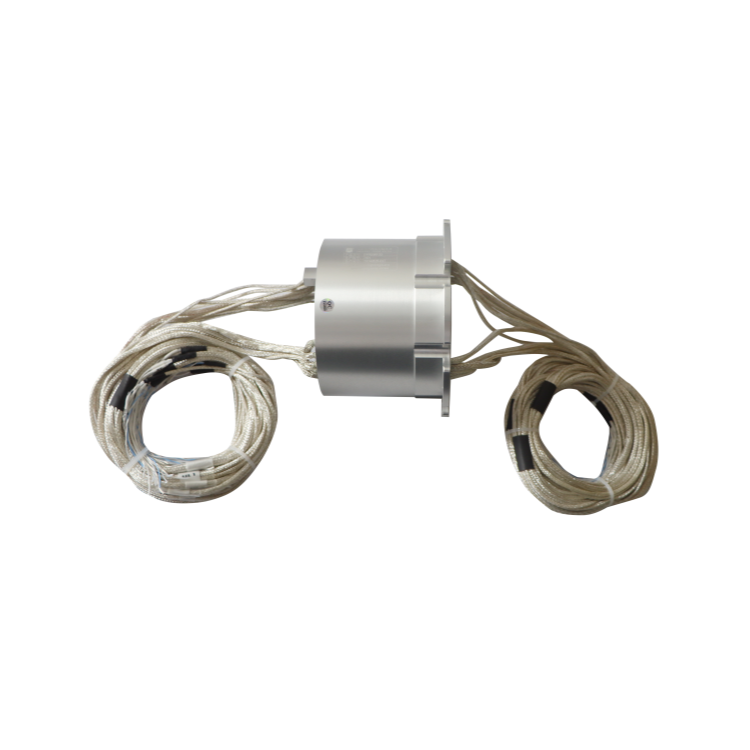

DHK080-33 series through hole slip rings, Inner hole 80mm, outer diameter 155mm, suitable for rotating electromechanical systems with a diameter less than 80mm, Standard model supports 1-48 power rings(0-20A/ring) or 1-96 signal rings(0~5A/ring).Through hole slip ring totally meets with continuous transmission of power, signals, weak current, high current, and high voltage under 360-degree unrestrained rotations. Low torque, low electrical noise, low loss, and easy maintenance as the main features.
Features
- Multi-point brush contact material ensure long life
- Integrated structure design for easy installation
- Standard model supports 1-48 power rings(0-20A/ring) or 1-96 signal rings(0~5A/ring)
- IP 54 (IP65-IP68 can be customized)
- Both the data bus agreement compatible
- Free maintenance
Typical application
- Automatic machines
- Cable reels
- Robotics, rotary sensors, urgent illumination equipment
- Exhibit / display equipment
- Packaging
- Rotary table
- Medical, Pharmaceutical equipment
- Converting machines
- Capping machines
- Labeling machines
- Filling machine
- Machine tools
Through hole slip ring ：Standard inner diameter 80mm
Customization supported, standardized products inner diameter :3-500mm, Current:2-1000A
|
DHK080-33 |
|||
|
The main parameters |
|||
| Number of circuits | 33 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

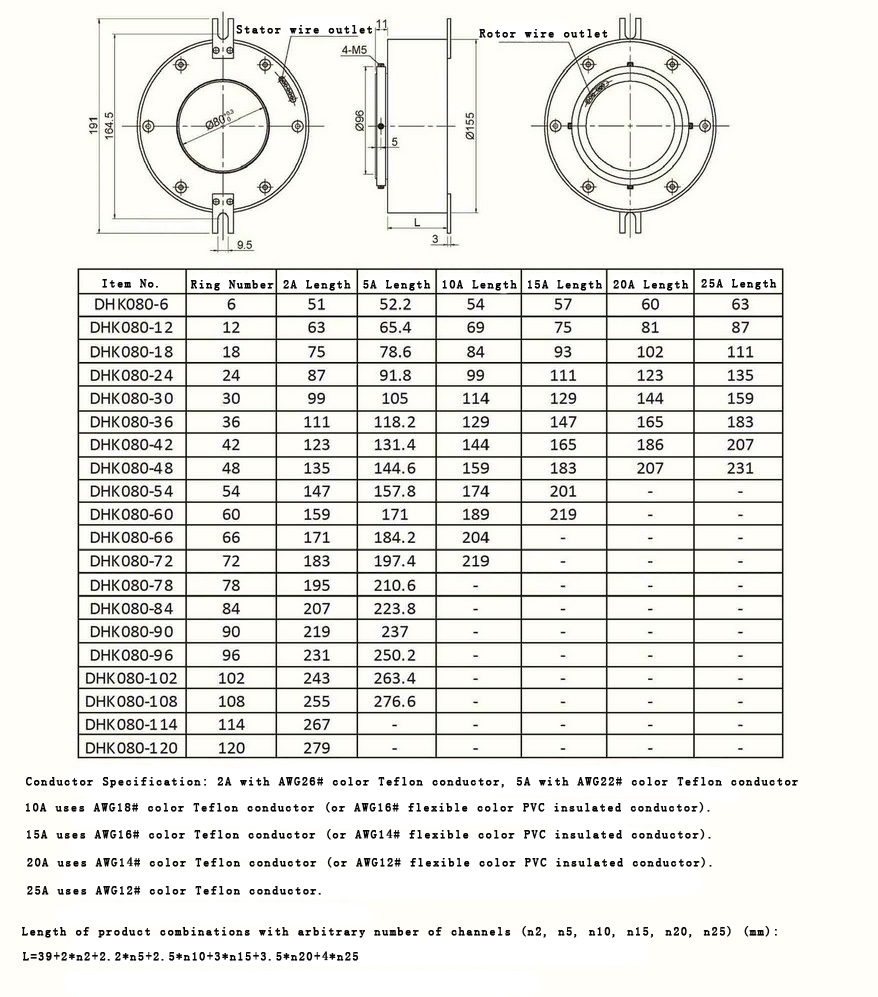

Standard product outline drawing:
Our Advantage
- Product advantage: The brush wires used are made of precious metal materials such as silver alloy and gold alloy, and the overall service life of the conductive slip ring is increased through advanced fiber brush bundle contacts.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
