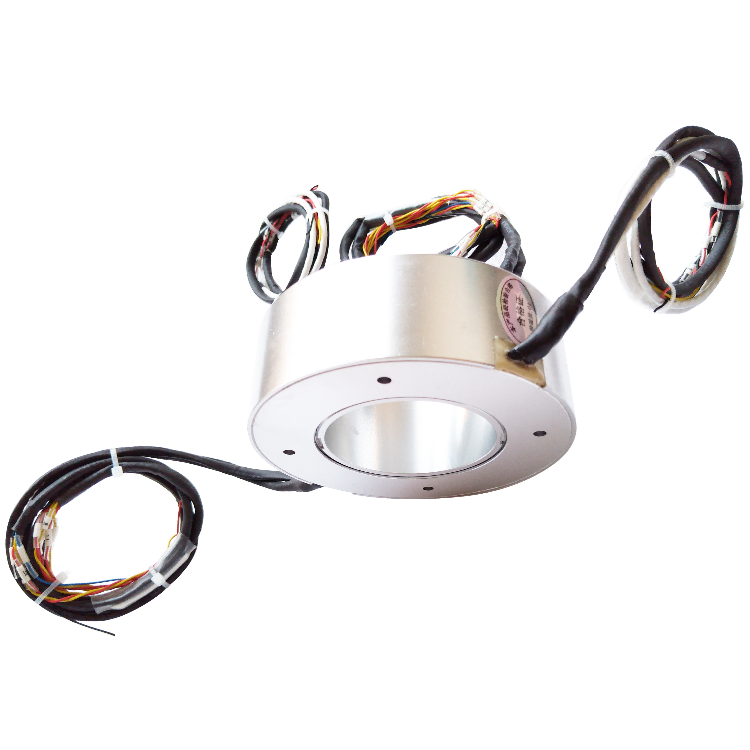

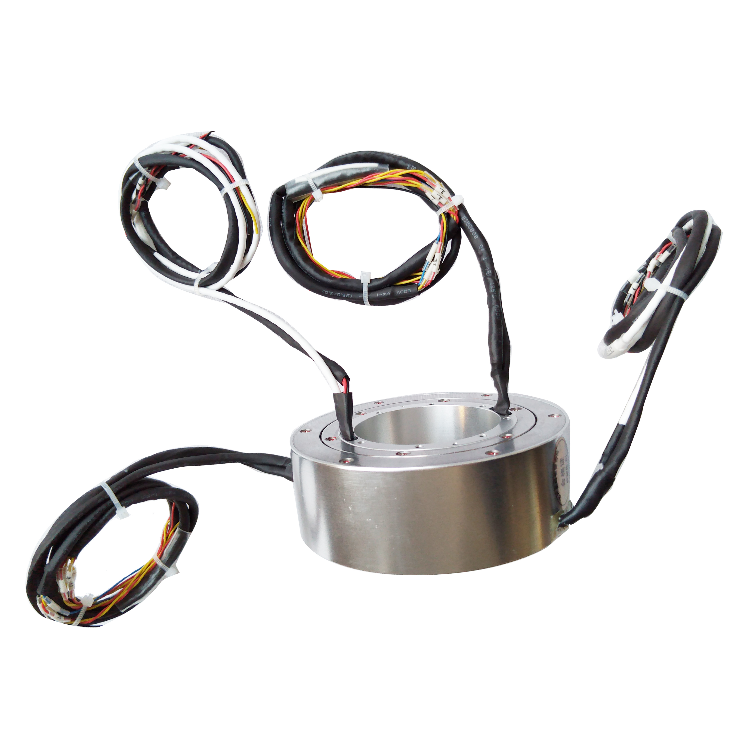

DHK055-16 Ingiant through hole slip ring hole diameter 55mm 16 channels all-aluminum alloy structure
Through Hole Slip Rings – DHK Series
Available for Custom, Standard ID 3-500 mm, Current 2-1000A
DHK055-16 through hole slip ring has a through hole of 55mm, number of channels: 16, and is an integral precision conductive slip ring with an all-aluminum alloy structure. It supports signal (2A) or, or 10A, 15A, 30A power supply current, voltage 380VAC/24VDC, and the working voltage can be customized to 1000V; the protection level can be customized to IP65/IP68
Feature
- Can combine the power, data and signals without interference in one rotary system
- Temperature control signal and thermocouple signal can be combined.
- Advanced multi-point contact brush technology ensures reliable contact with low friction
- Metal housing for better protection
- Integrated structure design, easy installation
- Hole size option for 3~500mm
- Standard current option for 0~20A, Standard voltage option for 0~600VAC/VDC
Typical applications: medical rotary CNC worktables, CNC machining centers, wire reels, packaging machinery, wind turbines, automation equipment, automatic testing equipment, automated robots and robotic arms, etc.
Through Hole Slip Ring – DHK Series
Available for Custom, Standard ID 3-500 mm, Current 2-1000A
|
DHK055-16 |
|||
|
The main parameters |
|||
| Number of circuits | 16 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
