Ingiant IP65 customized through hole slip ring
Ingiant IP65 customized pneumatic slip ring
Characteristics
- Item No.: DHK012F-10-1Q
- Inner diameter: 12mm through hole
- Outer diameter: 60mm
- Weight: 2.4kg
- Construction: Through hole, shaft install, IP65 protection level
- Electric contact material: Gold-Gold, Silver-Silver, Fiber brush – Ring
- Working speed: 0~300RPM
- Current: 1A per channel
- Voltage: 0~480V, can be customized
- Number of Channels: 10 channels of 1A signal wire, 1 channel of pneumatic rotary joint, can be customized
- Connector: Lead wire connector, rotary joint connector
- Customized installation method, continous transmit power & signal for industrial equipment
Features:
We can make IP51~IP65 slip ring for ships, harbor equipment, test equipment and some application which has water or moisture environment, to transmit precision signal, electric power, data etc.
Customized Signal type:
Solenoid valve, PLC, RS485/232/422, Thermocouple, Sensor, Pulse signal, Encoder, Servo system, CANBUS, Profibus, CC-Link, USB2.0, Ethernet, Gigabit, Video, Voice etc.
Advantage:
Compact size, high precision, low maintenance, low electric noise, low torque, long lifespan.
DHK012F-10-1Q:Pneumatic, hydraulic-Electrical hybrid slip rings is also called pneumatic, hydraulic rotary joint, is a pneumatic slip ring, electric swivel slip ring, hydraulic slip ring, rotating gas joint assembly. This product transmits the electric power and other signals combined with gas, liquid, hot oil or other media.
Ingiant has strong ability to offer special custom transmitting media designing in the slip rings, detailed custom information just consult us!
Product outline drawing：

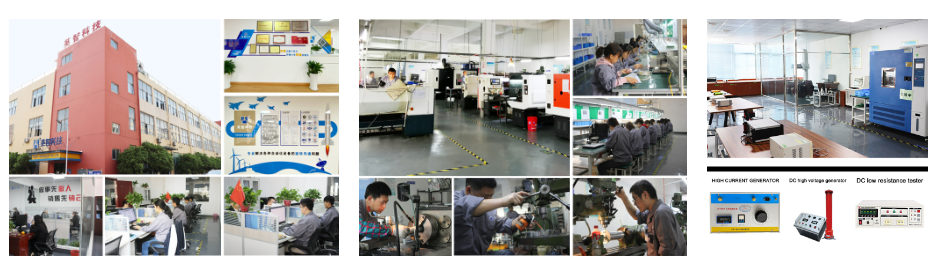

Ingiant is a professional customized slip ring manufacturer, with experienced engineer, QC, and workers team.
Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform.
It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside ports rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding
