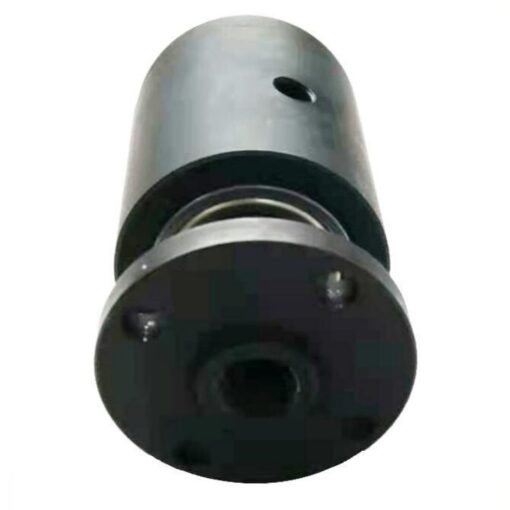

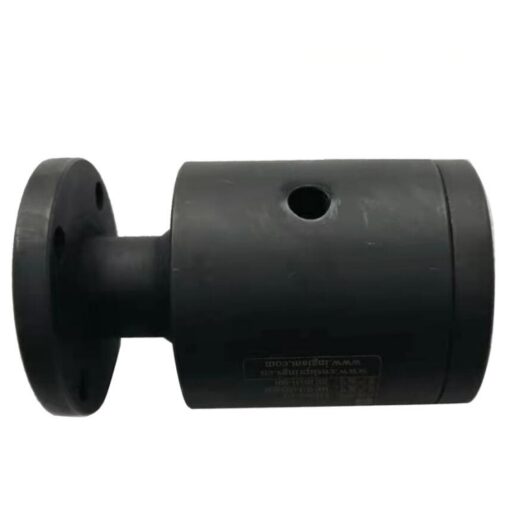

LHS048-1Q Pneumatic slip ring inner diameter 48mm 1pnermatic channel
How Does the Pneumatic Slip Ring Work
A slip ring is constructed from a few electrically conducting materials that are kept concentrically encircling a shaft. It enables the transmission of electricity and signals between a machine’s spinning component and a stationary component using the brushes.
While the functioning is quite similar, one of the key differences is that a pneumatic slip ring is fixed to one of the ends of a rotating shaft, coaxial with that of a rotational axis.
Pneumatic slip rings can also be used to transfer fluid using pressure or vacuum. The use of a pneumatic slip ring preserves and isolates the fluid connection while rotating 360 degrees by transferring the pneumatic pressure or vacuum from a stationary inlet to a spinning outlet.
|
LHS048-1Q |
|||
|
The main parameters |
|||
| Number of circuits | 1 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Our advantage:
- Product advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications.
- Company advantage: Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
- Customised advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value. We support our customers for customised solutions .
