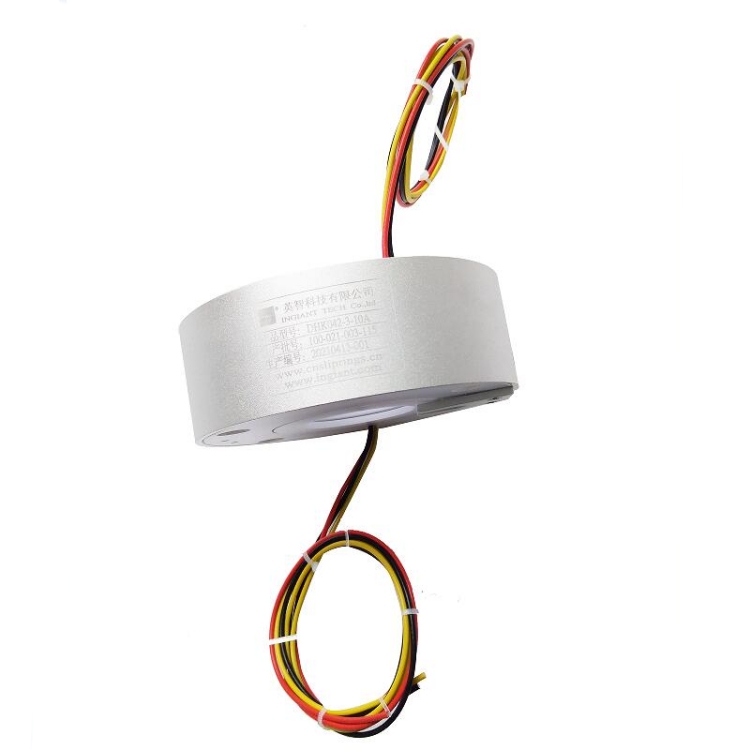

DHK042-3-10A long service life hollow shaft slip rings with hollow shafts 42mm 10A
Hollow shaft slip rings are also called through-hole conductive slip rings, which are mainly used to transmit precision signals, currents, and high voltages; they have low torque, low loss and maintenance-free; low electrical noise, and long life.
Ingiant hollow shaft slip rings are mainly used in:
- Military equipment
- Medical equipment, CT
- Wind power generation equipment
- Manufacture and control equipment
- Exhibition/display equipment
- Robots, robotic arms, radar antennas, VR
- Magnetic actuator, turntable test sensor
- Construction machinery, testing equipment, packaging machinery, environmental protection equipment
|
DHK042-3-10A |
|||
|
The main parameters |
|||
|
Number of circuits |
3 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length |
500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Product advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
