DHK149-31 Customized149mm military grade through hole slip ring with aviation plug 31channels

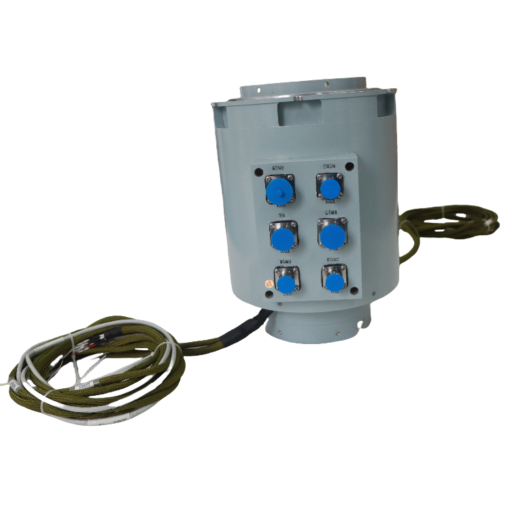

DHK149 series military grade through hole slip ring with aviation plug
DHK149 series is a through hole slip ring with an aviation plug, which is convenient for loading, unloading, replacement and installation, and improves stability and reliability.
Features
- Easy to maintain and replace
- Military grade
- IP51, IP65, IP68 optional
- Adopt advanced precious metal cluster brush multi-point contact to ensure reliable contact under extremely low friction
- Commonly used in high-end applications
Typical applications:
Industrial machine machining centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotation sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.;
|
DHK149-31 |
|||
|
The main paremeters |
|||
| Number of circuits | 31 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
- Company advantage: Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
- Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
