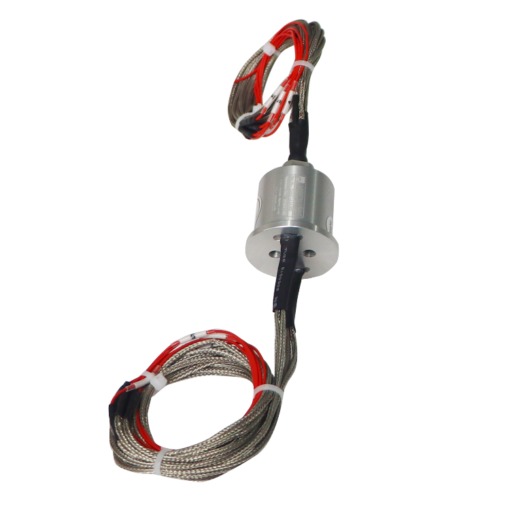

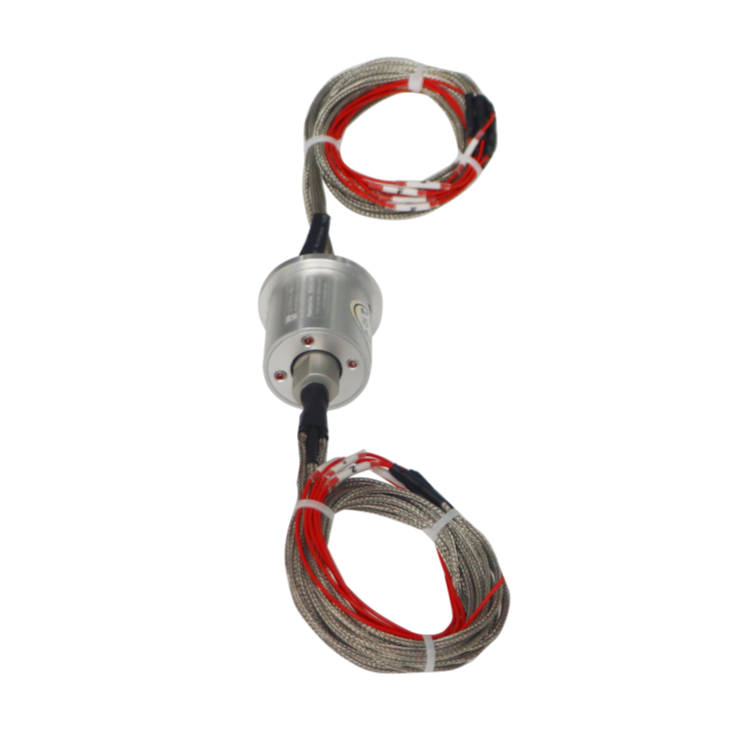

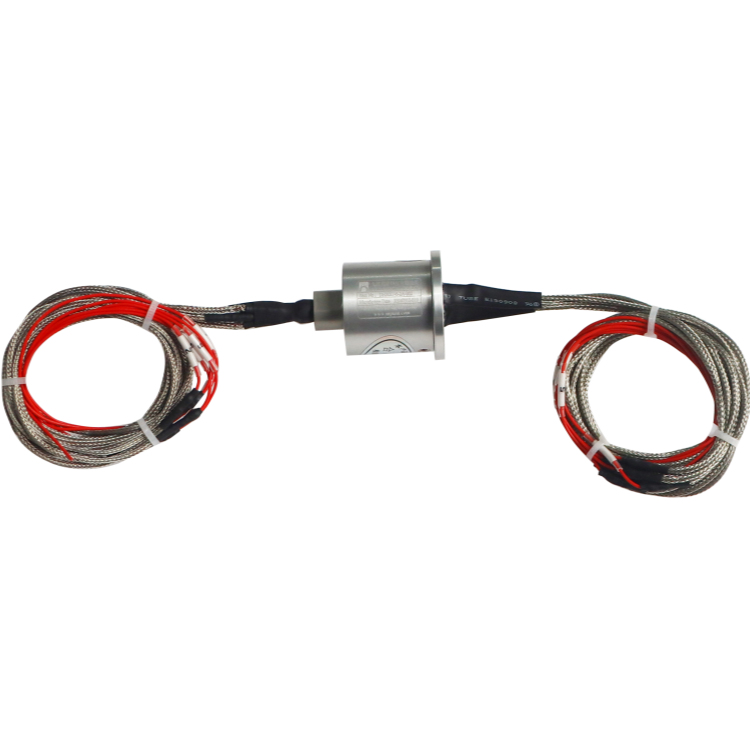

DHS027-6-2A-002 Ingiant OD 27mm miniature slip ring 6 channels 2A used for scanning machines
Miniature Slip Rings – DHS027-6-2A Series
DHS027-6-2A series is a miniature slip ring with OD 27mm , 6channels 2A. Gold to gold contact material ensures low contact resistance, low torque and reliable performance. Electrical power and signal transfer in one unit is workable for this series.
Feature
- Compact Size: Miniature Slip Rings have a small footprint
- Multi-Channel Transmission: They can transmit multiple electrical signals, power, and data simultaneously.
- Low Torque & Noise: Designed for minimal rotational resistance, these slip rings ensure smooth operation and low noise.
- Long Service Life: Miniature Slip Rings often have long service lives under normal operating conditions, providing reliable performance.
- Customizability: Manufacturers often tailor Miniature Slip Rings to match specific requirements.
- High-Speed Applications: Miniature Slip Rings are capable of supporting high-speed rotation without losing any performance reliability.
- Low Electrical Resistance: reduce energy loss and maintain efficient transmission of signals and power.
- Ease of Maintenance: Miniature Slip Rings require minimal maintenance efforts to keep them operating efficiently.
|
DHS027-6-2A-002 |
|||
|
The main parameters |
|||
| Number of circuits | 6 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
