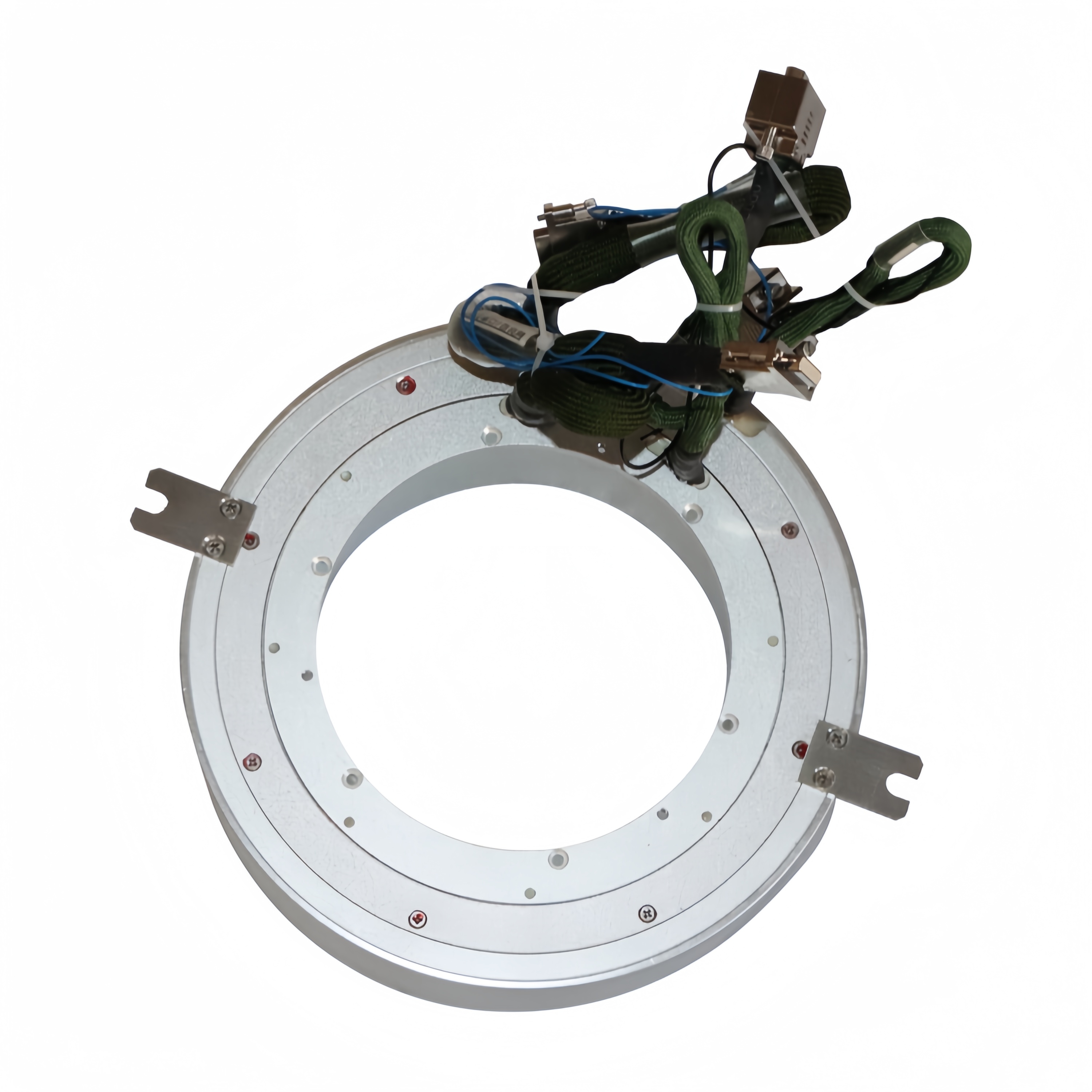

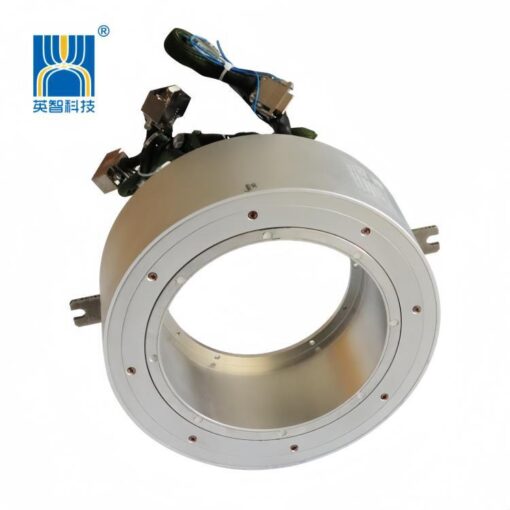

DHK120-25 Network HD Ethernet slip ring large pore size through hole slip ring
100BaseT Ethernet slip ring：
DHK120-25 network high-definition slip ring is a standard through-hole slip ring and Ethernet combination product, providing 25 transmission channels (the number of channels can be expanded), 10A/channel transmission power or signal and combined Ethernet communication; used for 10 / 100BaseT Ethernet This type of Ethernet communication.

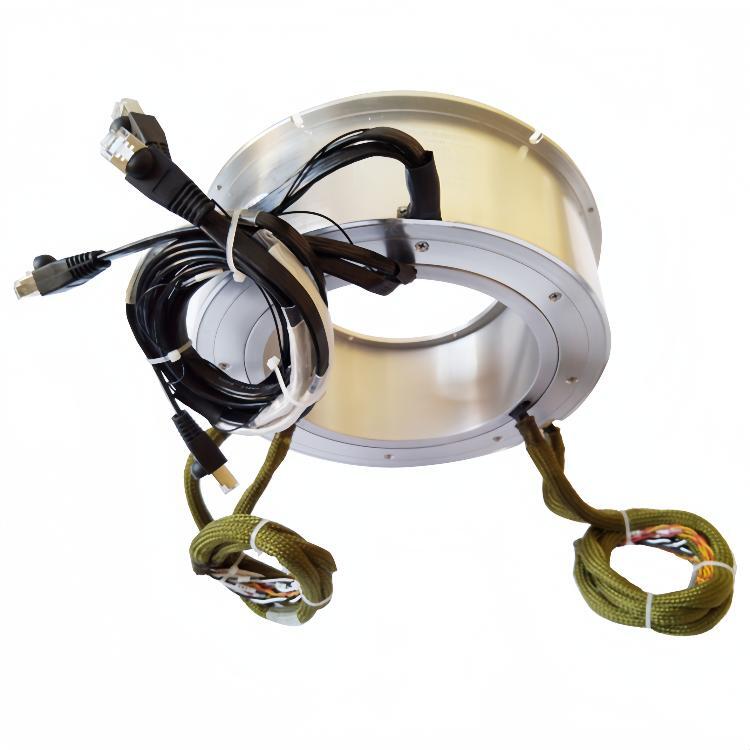

The Ethernet cable provides two connection methods with Rj45 jack and Cat line for convenient connection. For transmitting high-definition video, high-speed digital and other signals. Standard Ethernet slip rings include solid shaft Ethernet and through-hole Ethernet, which have the characteristics of stable transmission, no packet loss, no aliasing, low return loss, low insertion loss, and long life.
Features
- Modular design to meet higher current, speed, appearance and other needs
- ETHERNET is fully compatible with IEE 802.3 format; provided with RJ45 jack
- 10BaseT –100BaseTx –100BaseT2 –1000BaseT
- Supports transmission of power and data signals and high-speed digital signal mixed transmission
|
DHK120-25 |
|||
|
The main parameters |
|||
| Number of circuits | 25 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

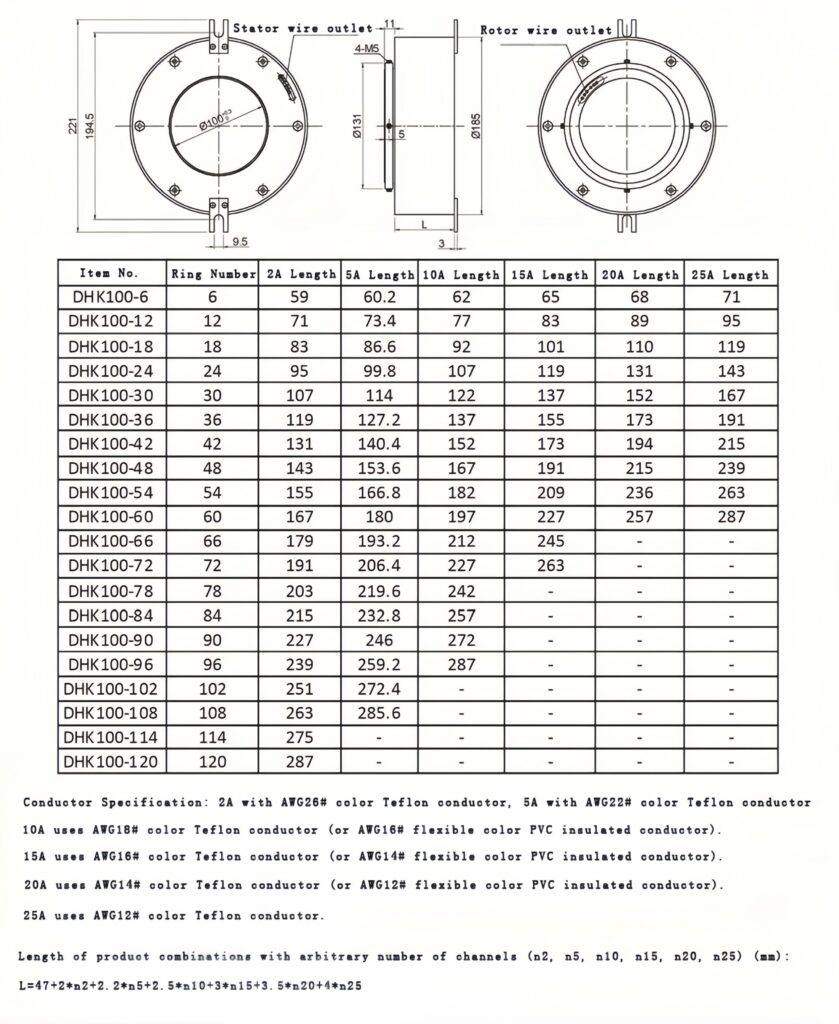

Standard product outline drawing:
