DH46E-5F-D76-L141-001 Optoelectronic rotary joint 76mm 5channels fiber optic 46 electrical military grade
Optoelectronic rotary joint Optoelectronic slip ring FORJ DH46E-5F-D76-L141-001

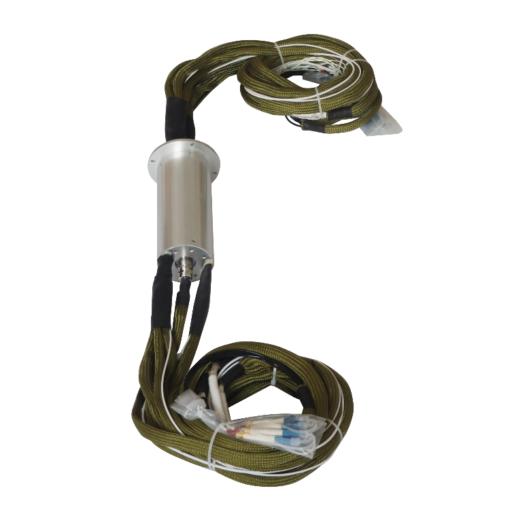

DH46E-5F-D76-L141-001 series optoelectronic rotary joint has 5-channel optical fiber, 46-channel circuit, outer diameter 76mm, supports single-mode and multi-mode, uses optical fiber as the data transmission carrier, is suitable for harsh environments, and is an optical series, Optoelectronic systems solve rotational transmission problems.
Our advantage:
- Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
Features
- Large data transmission capacity and high transmission rate
- Suitable for long distance transmission
- No packet loss, no electromagnetic interference
- Compact design and light weight
- Suitable for harsh environments
- Extra long service life
|
DH46E-5F-D76-L141-001 |
|||
|
The main parameters |
|||
| Number of circuits | 46 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
