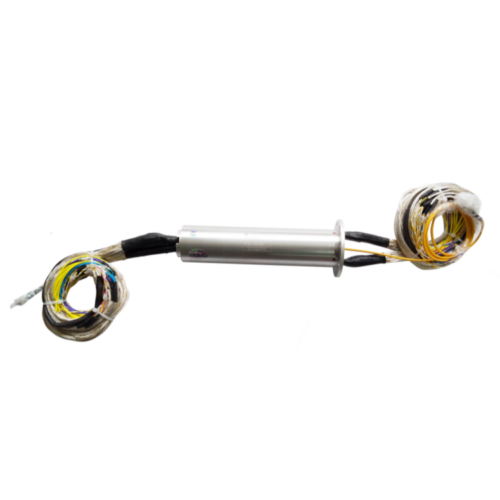

DHS050-39-1F Ingiant out diameter 50mm optoelectronic slip ring transmission 1 optical fiber and 39 electrical channels
Optoelectronic slip ring: Fiber optic slip ring+ electrical channels
Optoelectronic slip ring DHS050-39-1F: Single fiber slip ring, optoelectronic combined rotary joint, can transmit 1 fiber and 39 electrical channels at the same time, all-aluminum alloy structure. The electrical path supports signal (2A), 10A, 15A, 20A, 80A voltage 240VAC/VDC. Optoelectronic slip rings are currently a series of products with very high technical difficulty in industrial slip rings. They are mainly used in situations where 360-degree continuous rotation requires guaranteed power supply and uninterrupted fiber optic signals.
Product features
- Large data transmission volume, high transmission rate
- Support ultra-long distance transmission
- Strong transmission confidentiality, no electromagnetic interference
- Compact design and light weight
- Applicable to harsh conditions
Typical applications:
High-end robots, high-end material conveying systems, rotating turrets on military vehicles, remote control systems, radar antennas, fiber optic sensors and other turntables (rate tables) for high-speed video, digital, and analog signal transmission and control, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.;
Optoelectronic slip ring: Fiber optic slip ring+ electrical channels
|
DHS050-39-1F |
|||
|
The main parameters |
|||
| Number of circuits | 39 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Fiber optic slip ring parameters:
| Number of channel: | 1 |
| Working wavelength: | 1310～1550nm； |
| Fiber optic type: | Single mode fiber； |
| Type of connector: | FC/PC； |
| Insertion loss: | ≤2.0dB； |
| Insertion loss variation: | ≤±0.5dB； |
| Pigtail Length: | Rotor end：1000mm～1050mm；Stator end：1000mm～1050mm； |
Standard product outline drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry. The company has provided various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. The mature and perfect solutions and reliable quality have been highly recognized in the industry.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
