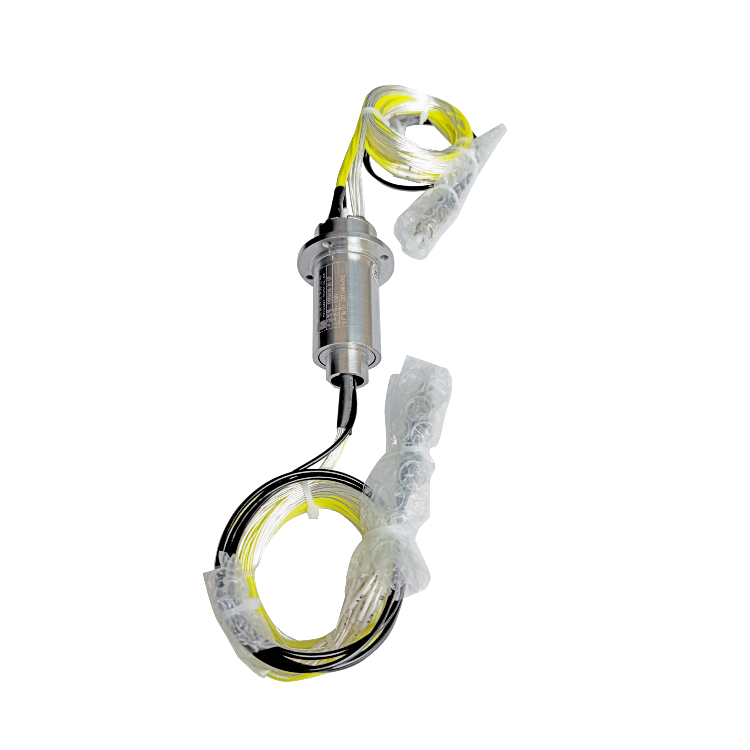

DHS028-20-1F Photoelectric combination slip ring diameter 28mm 20 channels combine 1channel fiber optic slip ring

Photoelectric combination slip rings, combined single-channel optical fiber slip ring (supports single-mode/multi-mode) can transmit data losslessly during 360-degree unlimited rotation. It is particularly suitable for applications that require unlimited, continuous or intermittent rotation, and at the same time need to transmit large-capacity data and signals from a fixed position to a rotating position. It can improve mechanical performance, simplify system operation, and avoid damage to optical fibers due to the rotation of movable joints. cause damage.

Features:

• Connecting connectors are available in two specifications: G1/8 and G1/4
• Small insertion loss and high rotation speed
• No contact, no friction, long life, single core can reach more than 100 million revolutions
• Small size, light weight, high sealing level
• Optical fiber transmits signals without leakage or electromagnetic interference, and can be transmitted over long distances

Typical application:

Photoelectric combined slip rings are currently the most technically difficult series of industrial slip rings. They are mainly used in situations where 360-degree continuous rotation requires guaranteed power and uninterrupted fiber optic signals: such as high-end robots, high-end material conveying systems, and military vehicles. High-speed video, digital, and analog signal transmission and control of rotating turrets, remote control systems, radar antennas, optical fiber sensing and other turntables (speed platforms), medical systems, video surveillance systems, and submarine operation systems to ensure national or international security systems, Emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.;
