DHS095-25-8F photoelectric combination slip rings transmit 8 optical fibers and 25 electrical channels

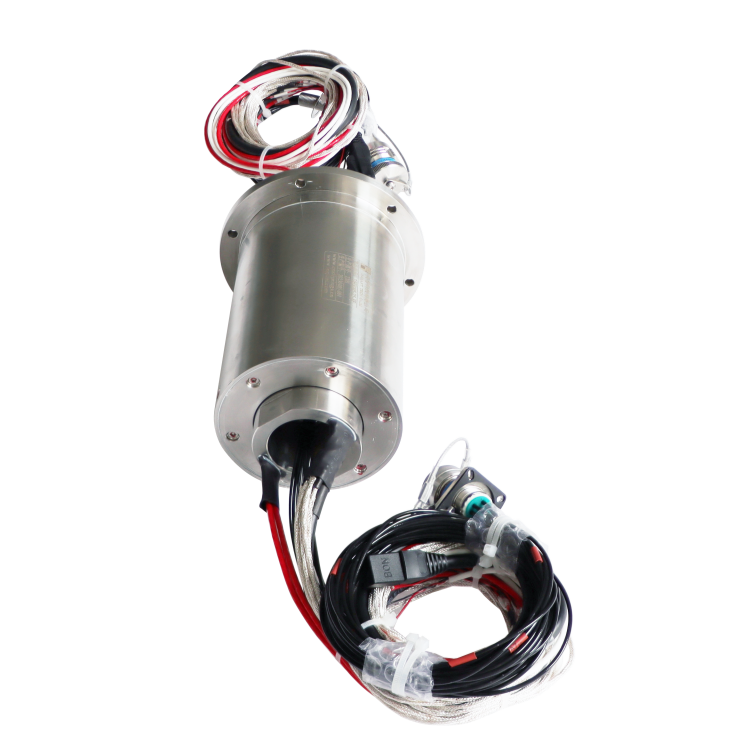

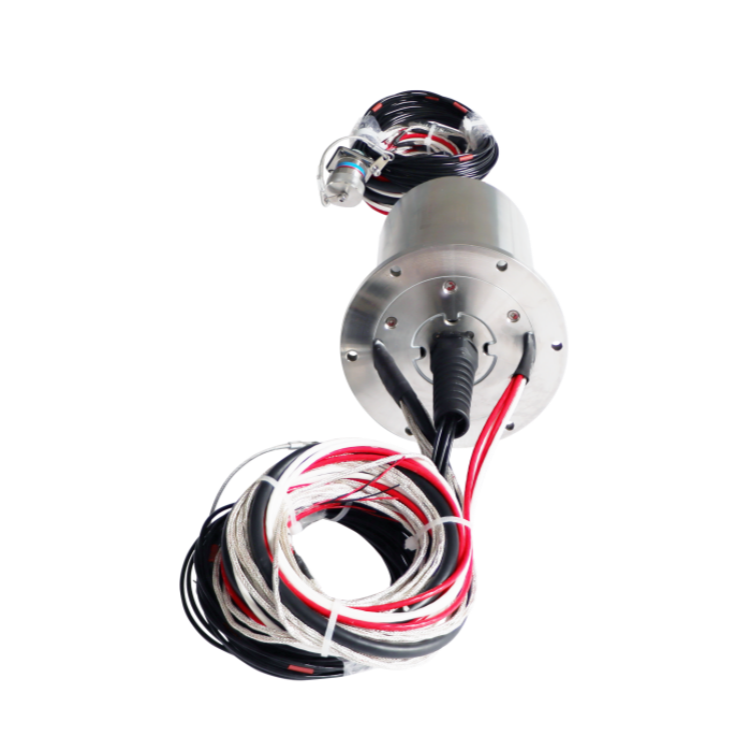

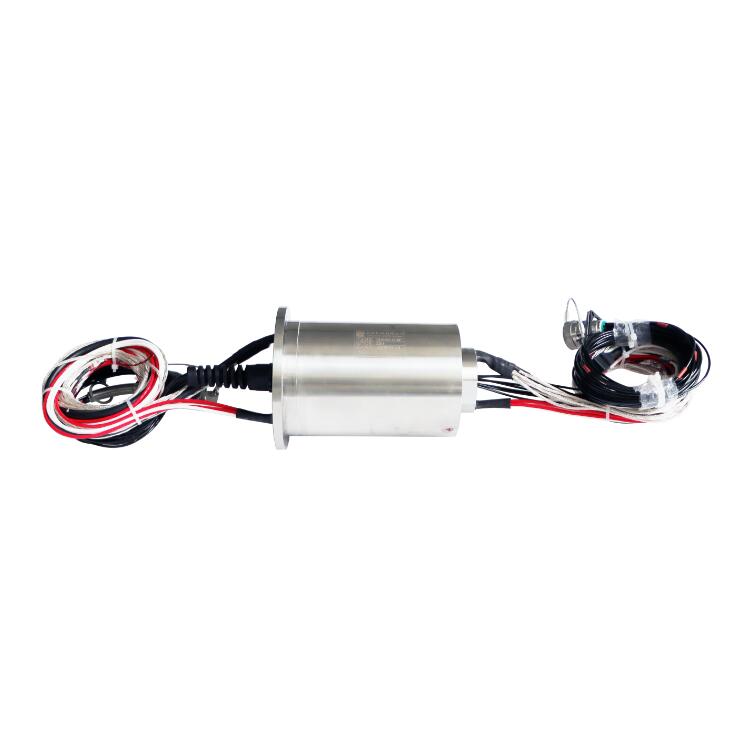

DHS095-25-8F is an photoelectric combination slip rings that transmit 8 optical fibers and 25 electrical channels at the same time. The overall outer diameter is 95mm. The entire product is very compact and is specially designed for applications that require space.
Photoelectric combination slip rings, also known as photoelectric combination rotary joints and photoelectric bus rings, use optical fiber as the data transmission media, providing the best technical solution for data transmission between rotatingly connected system components. It is particularly suitable for applications that require unlimited, continuous or intermittent rotation, and at the same time need to transmit large-capacity data and signals from a fixed position to a rotating position. It can improve mechanical performance, simplify system operation, and avoid collisions due to the rotation of movable joints. Damage to fiber optics. It can be used with traditional electronic bus rings to create photoelectric hybrid bus rings to transmit power and high-speed data.
|
DHS095-25-8F |
|||
|
The main parameters |
|||
| Number of circuits | 25 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

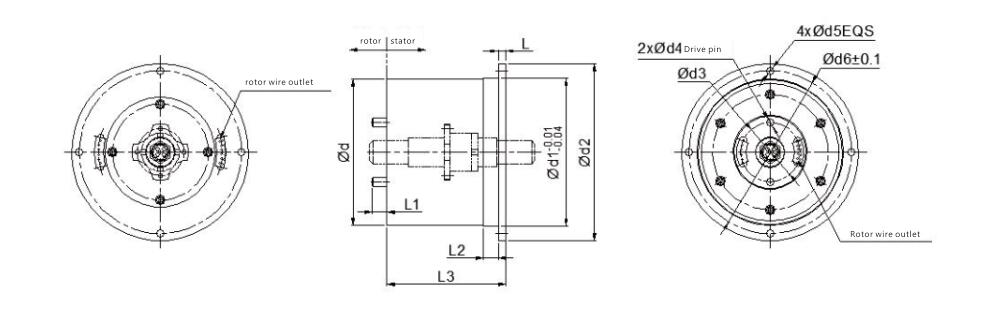

Standard product outline drawing:
Our advantage:
- Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
