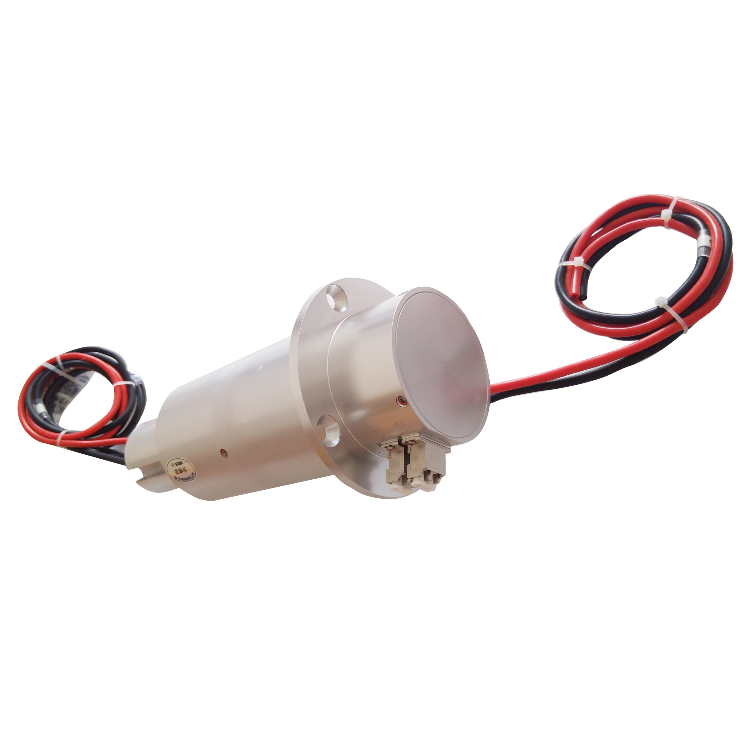

DHS069-2-30A-3F Photoelectric rotary joint with 3channels fiber optic slip ring and 2channels 30A power
Photoelectric rotary joint Photoelectric slip ring FORJ DHS069
DHS069-2-30A-3F series photoelectric rotary joint, with 3 channels of optical fiber, 2 channels of circuit, outer diameter 69mm, supports single mode and multi-mode, uses optical fiber as data transmission carrier, suitable for harsh environments, solves the problem of rotation transmission for optical series and photoelectric systems.
Product features
- Large data transmission capacity, high transmission rate
- Suitable for long-distance transmission
- No packet loss, no electromagnetic interference
- Compact design, light weight
- Applicable to harsh environments
- Extremely long service life
Typical applications: various radars, robots, material conveying systems, rotating turrets on vehicles, remote control systems, radar antennas, fiber optic sensors and other turntables (rate tables) for high-speed video, digital, and analog signal transmission and control, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.
|
DHS069-2-30A-3F |
|||
|
The main parameters |
|||
| Number of circuits | 2 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Fiber optic slip ring parameters:：
| Number of channels： | 3; |
| Working wavelength： | 1310/1550nm； |
| Fiber type： | single-mode fiber; |
| Connector type： | rotor end: FC/PC; stator end: LC/PC; |
| Insertion loss： | ＜3.5dB(single mode); |
| Insertion loss variation： | ＜1.5dB(single mode); |
| Return loss： | ＞40dB(single mode); |
| Maximum speed： | 300rpm； |
| Working temperature： | -40℃～+70℃； |
| Storage temperature： | -50℃～+80℃； |
| Shell material： | stainless steel; |
| Tensile strength： | 3N(3mm outer sheath); |
| Packaging： | ∅3mm； |
| Service life： | 0.5-0.8 million revolutions; |
| Vibration standard： | Meet customer customization requirements; |
| Mechanical shock： | Meet customer specific customization requirements; |
| Maximum allowed optical power： | 23dBm； |
| Protection level： | IP54； |
Standard product outline drawing:
Our advantage:
- Product advantage: The perfect slip ring solutions for tight spaces and compact unit dimensions. The encapsulation protects the inner workings of the slip rings against disturbances, depending on the level of protection and enclosure material
- Company advantage:The purpose of the company’s implementation of “6S” management is to subtly change the behavior habits of employees through detailed and simple actions, so as to achieve standardized site management, standardized material placement, neat storage area management and normalized safety management, establish a good enterprise safety culture, and make safety work move from tangible management to intangible management.
- Customized advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications We will work with you to find the ideal encapsulated slip rings for your applications.
