DHS028-47-1F Ingiant Photoelectric slip ring diameter 28mm 47channels combine 1channel fiber optic slip ring
DHS028-47-1F Photoelectric rotary joint Photoelectric slip ring (1 fiber channel + 47 channels) (2A)

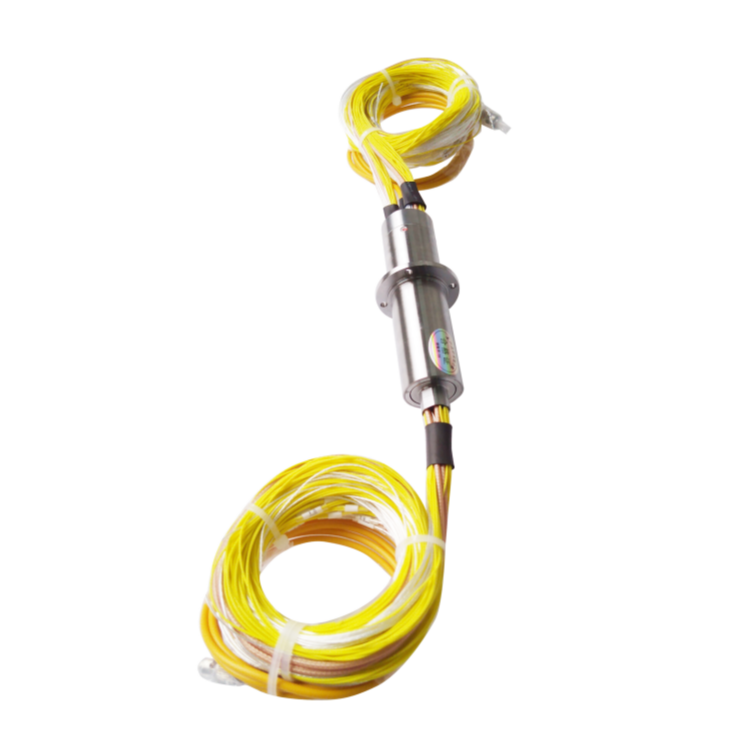

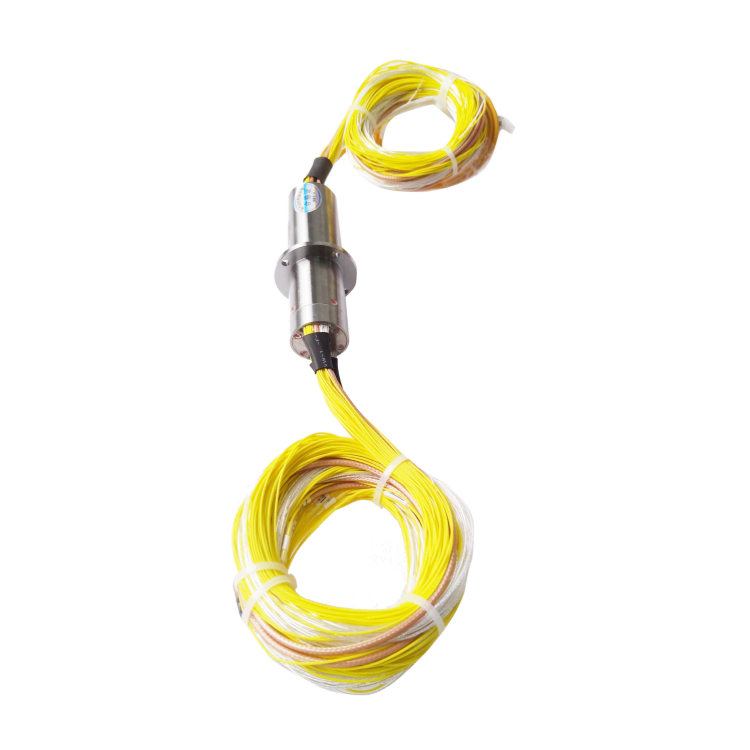

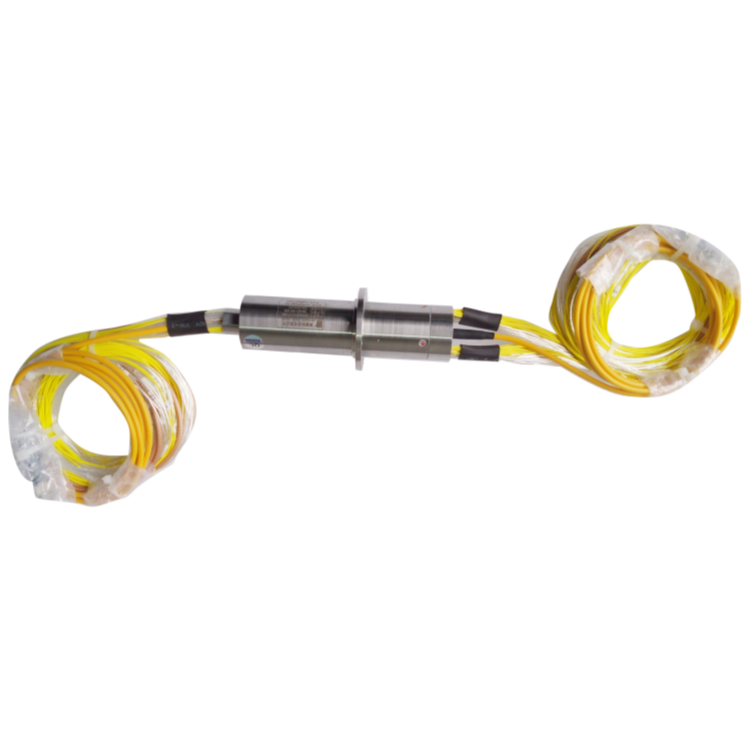

The DHS028-47-1F series is an photoelectric rotary joint that can transmit 1 fiber channel and 47 signals (2A) at the same time. The overall outer diameter is very small (28mm), and the entire product is very compact, specifically designed for applications with requirements on space size.
|
Fiber slip ring parameters |
|
| Number of channels: | 1 |
| Working wavelength: | 1310～1550nm; |
| Fiber type: | single-mode fiber; |
| Connector type: | ST; |
| Insertion loss: | ≤2dB; |
| Insertion loss variation: | ≤±0.5dB; |
| Pigtail length: | Rotor end: 1000mm～1050mm;
Stator end: 1000mm～1050mm; |
Product features
- Large data transmission capacity, high transmission rate
- Suitable for long-distance transmission
- No packet loss, no electromagnetic interference
- Compact design, light weight
- Applicable to harsh environments
- Extremely long service life
|
DHS028-47-1F |
|||
|
The main parameters |
|||
| Number of circuits | 47 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.
- Company advantage: Experienced technical team, perfect manufacturing, quality control and management system, adhering to the value of quality and service first, to provide products and technical services to meet user needs. And constantly increase the investment in the research and development of new slip ring technology, expand the new application field of the slip ring industry. To provide users with more comprehensive product and technical support.
- Customized advantage: Can provide all kinds of industries of non-standard customized slip ring design, can customize different needs of the slip ring, integrated current, signal, gas and liquid as one integrated slip ring. To provide global customers with wind power generation, servo control system, work turntable, robot manipulator, construction machinery, CCYV video surveillance, medical equipment, radar military solutions
