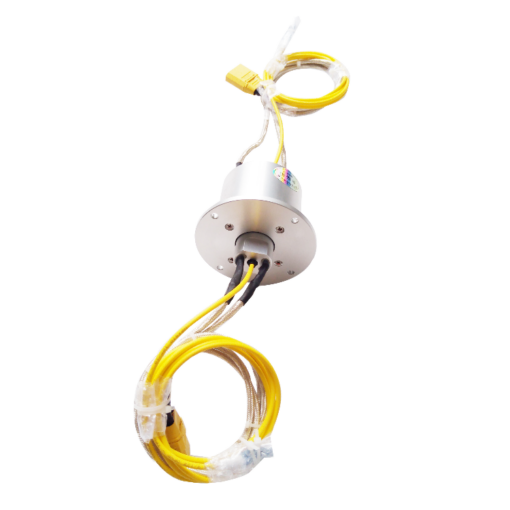

DHS058-2-30A-1F Photoelectric slip ring OD 58mm 2 channels 30A and 1 channel fiber optical rotary joint
DHS058-2-30A-1F Photoelectric slip ring combine with single channel fiber optical rotary joint and 2 channels 30A/channel slip ring by the OD58 mm housing, supports singlemode and multimode, suitable for harsh conditions, non-contact, no wear, long working life .
Photoelectric slip ring use optical fibers as data transmission media, providing the best technical solution for data transmission between rotatingly connected system components.
Feature
- Large data transmission capacity and high transmission rate
- Long-distance transmission
- No leaks, no electromagnetic interference
- Compact design and light weight
- Suitable for harsh conditions
- Long life span
Photoelectric slip ring application:
- Industrial machines: drilling platforms, winding machines, end-face processing machines, hot rolling machines
- Rotary workbench: winding machine, filling machine, bottle blowing machine, amusement equipment
- Cable reel: port machinery, hoisting and lifting equipment, road and bridge machinery, tower
- Test equipment: centrifugal test bench, separator, testing instrument
- Robots: packaging equipment, stackers, process control equipment, molding machines
- Exhibition/display equipment: car booths, revolving doors, product booths, revolving restaurants
- Medical equipment: shadowless surgical lights, helicopters, radar communication equipment
|
DHS058-2-30A-1F |
|||
|
The main parameters |
|||
| Number of circuits | 2 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Fiber optic slip ring parameters:
| Number of channels: | 1 |
| Working wavelength： | 1310/1550nm； |
| Fiber type: | 9/125μm single-mode fiber； |
| Connector type： | LC (note: short tail); |
| Insertion loss: | ＜1.5dB； |
| Insertion loss variation: | ≤±0.5dB； |
| Return loss: | ＞40dB； |
| Pigtail length: | Rotor end: 1000mm~1050mm; (3mm outer sheath);Stator end: 1000mm~1050mm (3mm outer sheath); |
Standard product outline drawing:
Our advantage:
- 1：Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
- 2：Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
- 3：Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warranty, our goods are guaranteed for 12 months from date of sale, under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
