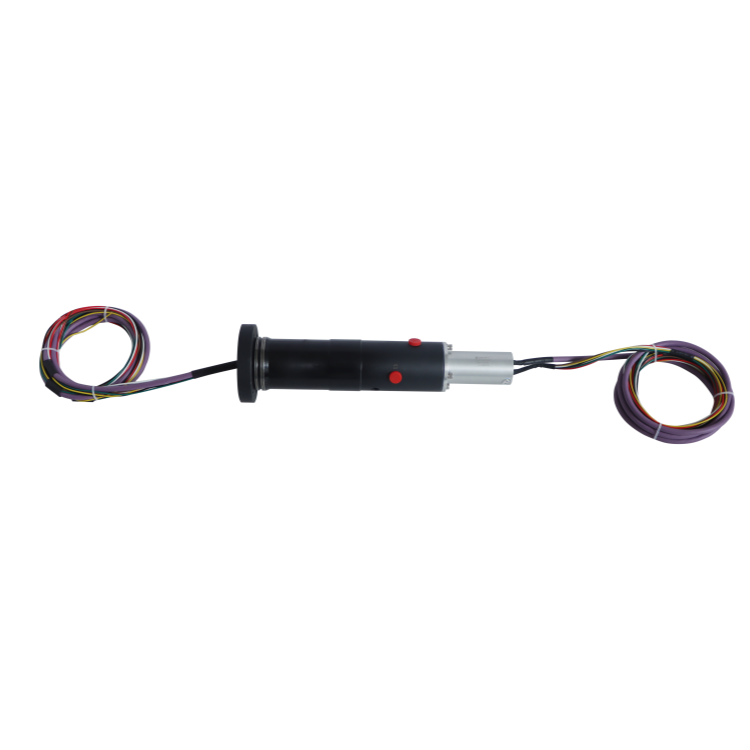

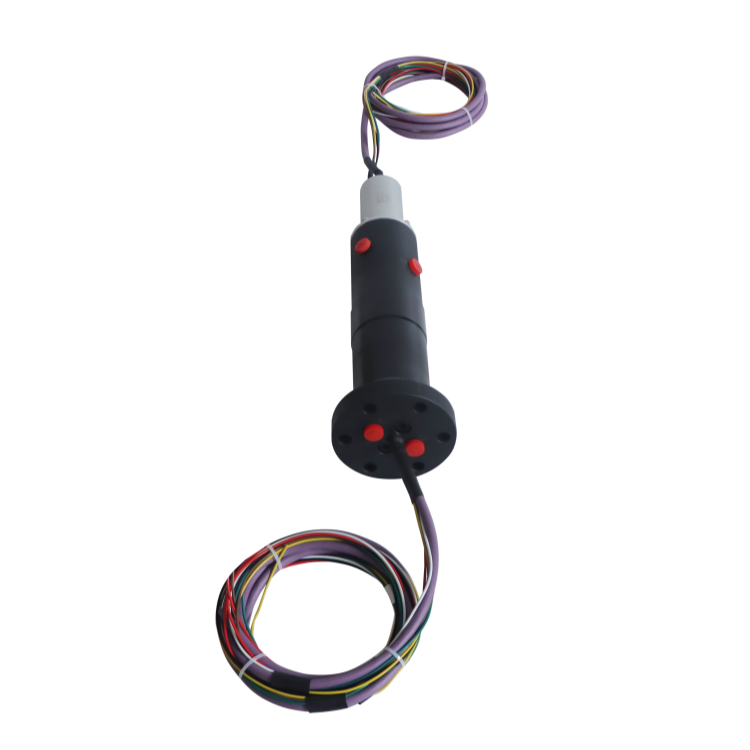

DHS045-9-2Q-002 Pneumatic and electric hybrid slip ring 45mm combination 9-channel electric and 2-channel gas
Hybrid slip ring pneumatics + electrics
Hybrid slip rings for simultaneous transmission of media (gas) and electrics (power, signals)
Pneumatic and electric hybrid slip ring is an electro-pneumatic rotation specially developed for certain devices that require 360° rotation to conduct electricity and simultaneously pass gas (vacuum, compressed air and other gases) and signals (Ethernet, USB, high-definition video, motors and various control signals) Connector product series. It can be used in various high-tech automation equipment that require mixed transmission of gas and electricity, especially in some harsh environments such as humidity and sea water. This gas-electric hybrid conductive slip ring can be used.
Pneumatic and electric hybrid slip ring offer their users the following advantages:
- High load capacity
- Long service life
- Easy installation
- Reliable, sophisticated design
- Compact design
- Various applications
|
DHS045-9-2Q-002 |
|||
|
The main parameters |
|||
| Number of circuits | 9 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

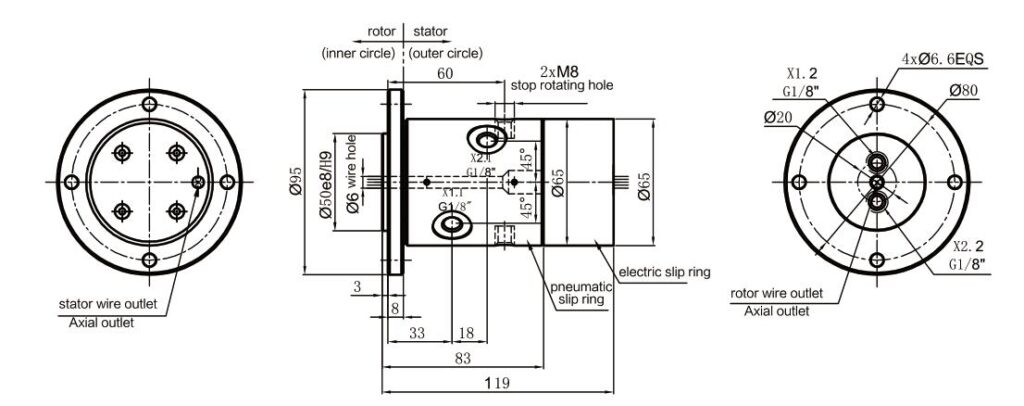

Product drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
