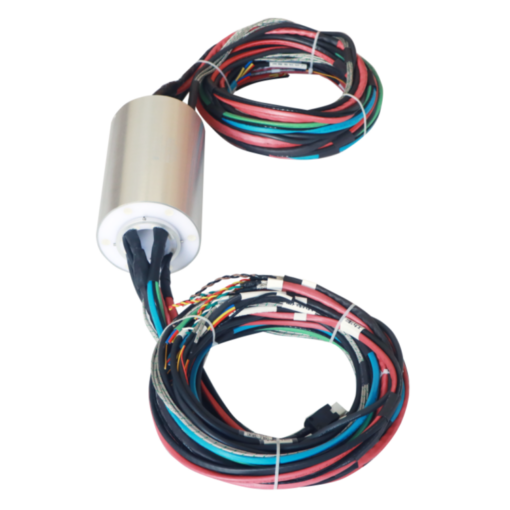

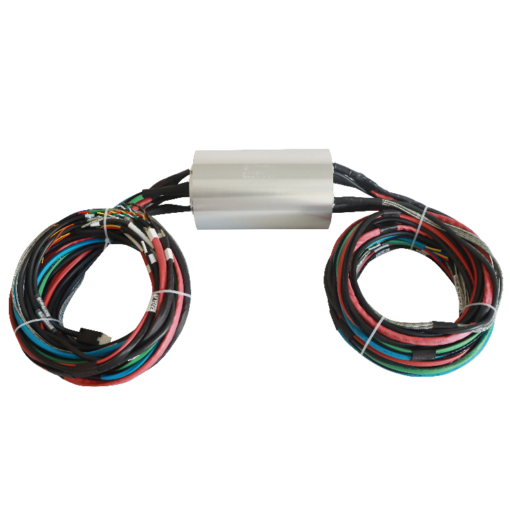

DHK050-45 Inner diameters 50mm through hole servo motor slip ring servo encoder slip ring
DHK050-45 series servo encoder slip ring
Servo encoder slip ring, a servo encoder slip ring specially designed for Siemens servo motors, Schneider servo motors, Lenz servo servo motors, etc., has stable performance and is very
- Reliable, with many years of field use experience, no alarms, shutdowns, etc.
- Can be mixed with other switch signals and power lines, buses such as Profibus, Profinet…can be mixed with other gas-liquid rotary joints.
- Internal wiring and special shielding module design can completely prevent the encoder from reporting error codes. Gold-gold contact is extremely reliable.
- Many years of experience in using various servo systems and large-scale control systems at home and abroad
Features
- Special internal shielding and wiring design
- permanently lubricated bearings
- gold to gold contacts
- Easy installation
Servo encoder slip ring is an electrical slip ring used for servo encoder signals and servo motor power. Servo encoder slip rings can save a lot of cabling and installation work to transmit data and power. Suitable for various servo/stepper motors. Power supplies usually use gold contacts to avoid external interference as well as internal interference.
|
DHK050-45 |
|||
|
The main parameters |
|||
| Number of circuits | 45 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance. Comprehensive quality management system, strict management in all aspects of design, manufacturing, testing, etc., to ensure the use of materials, coupled with high-precision imported equipment and high-tech technology to ensure, our products Performance and indicators are always at the forefront of similar products in the world.
- Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. we also provide both OEM and ODM services for world famous brands and customers,covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, strong R&D strength to meet customers’ different requirment.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
