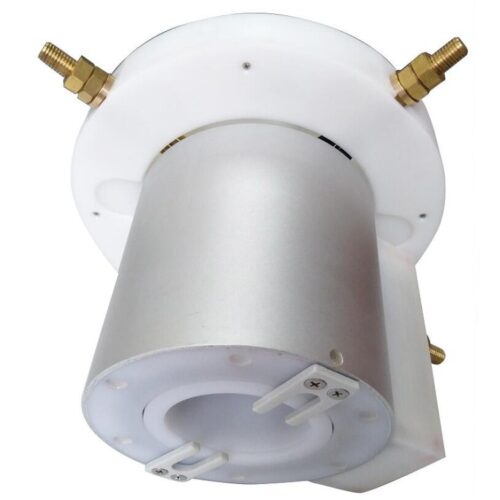

slip rings for wind turbines

Advantages of slip rings for wind turbines

compact dimensions
rugged construction
high availability and low downtime
Operating temperatures from -40°C to +60°C
extremely long service life due to gold wire technology
modular design and flexible adaptation to different plant types
simple installation

Category: Customized slip ring Tag: wind turbines slip ring

Description

FHS135-25-10120
The main parameters
Number of circuits	25	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

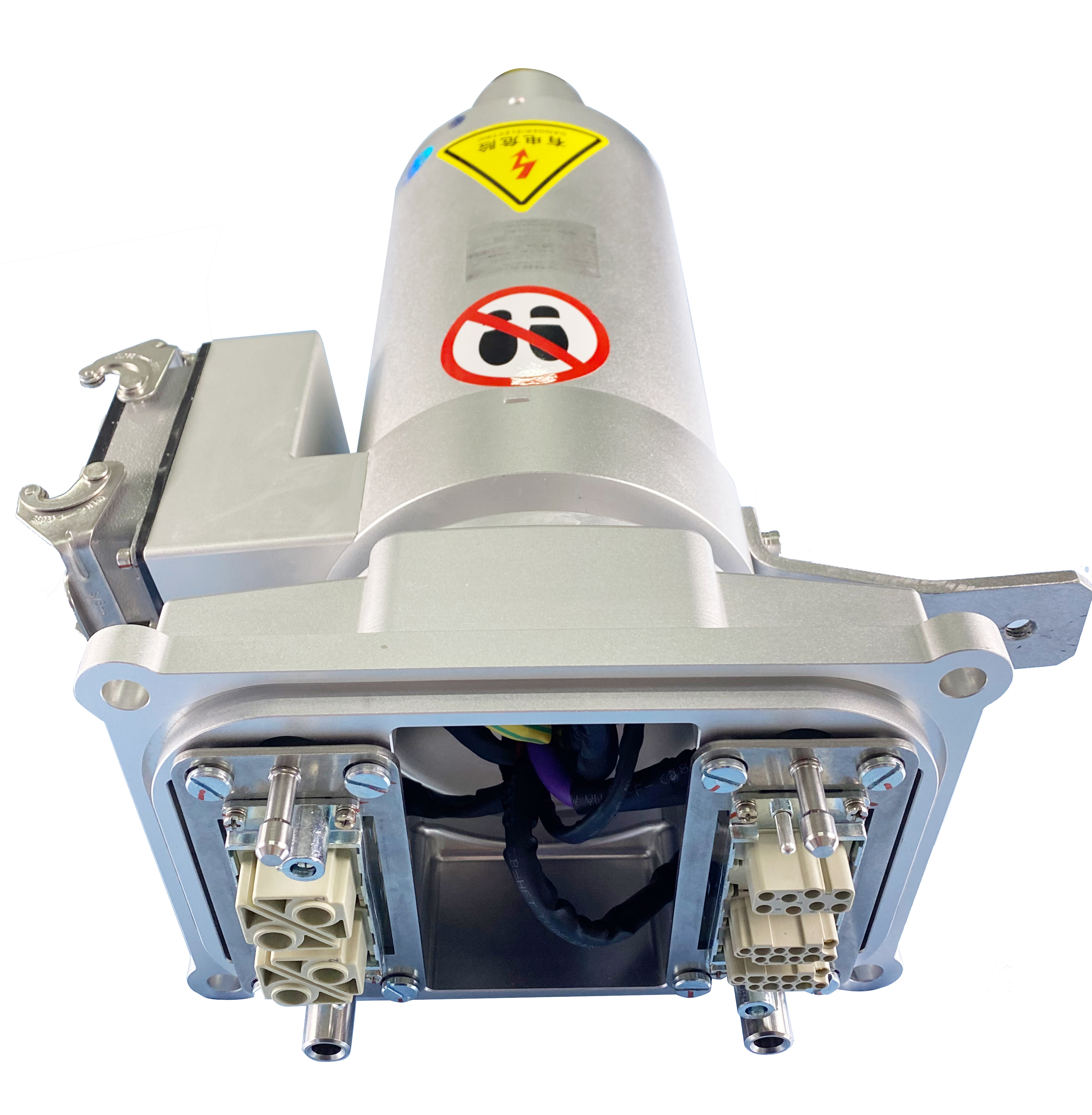

Innovative slip rings for wind turbines

Demanding environmental conditions and the desire for a long service life of the slip rings lead to ever new solutions for the system manufacturers. Some examples of this are special seawater-resistant housings, which are tested for suitability for use in the offshore sector with extensive salt spray tests, and special materials for rings and busts, which ensure the long-lasting and trouble-free operation of the systems with the help of special gold wire technology

slip rings for wind turbines
