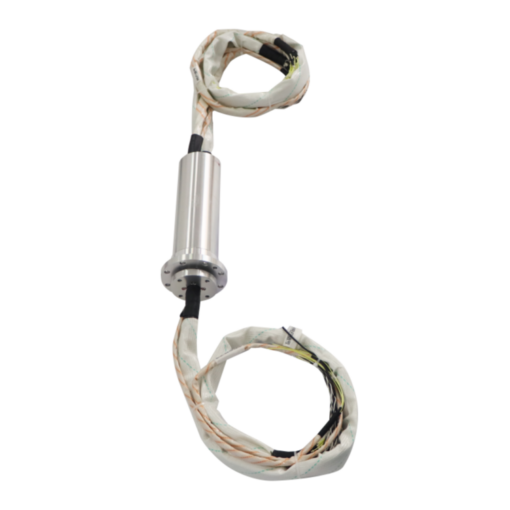

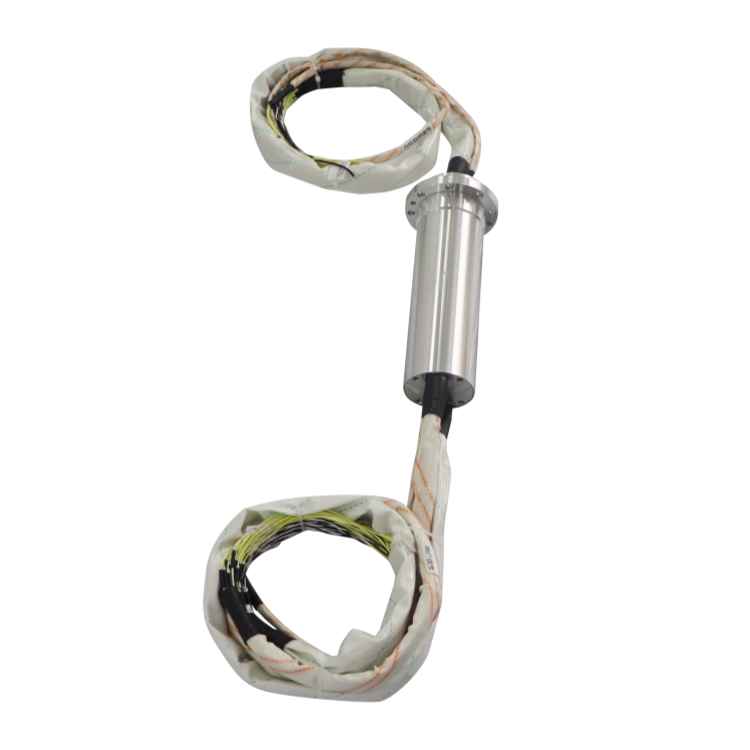

DHS065-72-1A solid flange automation slip ring diameter 65mm 72channels 1A
DHS065-72-1A Series – Solid Flange Automation Slip Ring
Automation Slip Ring for high rotational speed and industrial automation.Advanced fibre brush technology for long life and low contact resistance. Combined power and signal transmission possible.Automation slip rings with rotor and stator flange or without flange. Inside the housing, 2 to 108 rings can be processed for power and signal transmission (Ethernet, USB, RS, CANbus, video signals, sensor signals, etc.).
Ingiant Technology provides a variety of standardized automated slip rings. Optional gold alloy contact, silver alloy beam brush contact, the surface of the metal ring can be treated with military grade treatment, which not only stabilizes the quality but also increases the service life, and is especially suitable for the rotational transmission of weak signals. It can also be designed and manufactured integrated with other types of rotary joints, such as Ethernet, fiber optic rotary joint (FORJ), hydraulic, radio frequency, etc.
Features
- Suitable for 360° rotation transmission of signals and power, such as control signals, video signals, high-definition signals, Ethernet, sensor signals, etc.
- Military standard quality, equipped with gold-on-gold contact and beam brushing technology
- Low torque, low loss, low contact resistance, long life
- Standardized products available with or without flanges
- Integrated structural design for easy installation
|
DHS065-72-1A |
|||
|
The main parameters |
|||
| Number of circuits | 72 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Company advantage:Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, own 27 kinds of technical patents of slip rings and rotary joints(include 26 utility model patents, 1 invention patent).
- Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
