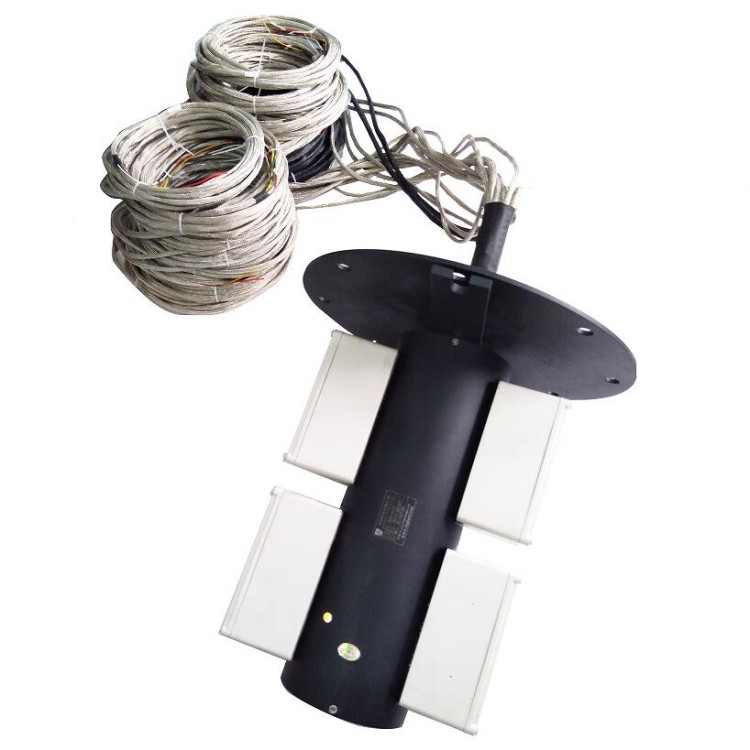

DHS150-112 Customized solid shaft automation slip ring for special industries

Advantages of Automation slip rings

The standard version of the aluminium housing is designed for protection class IP51. This means that it provides complete protection against accidental contact and lasting encapsulation against dust penetration. Depending on requirements, Automation slip rings can be manufactured with different degrees of protection. Give us a call. Together we will clarify which protection class is best suited for your Automation slip rings. Automation slip rings offer you the following advantages:

Shielding against interfering signals
Impact-resistant housing
acid-resistant housing material
Corrosion-resistant enclosure
Minimum internal wear and tear
Very reliable signal transmission
Long-life ball bearings

The use of a metallic housing is ideal for shielding any interfering signals and ensuring that the signals are transmitted unaffected.

Category: Customized slip ring Tags: Slip Ring Series For Special Industries, solid shaft slip ring

Description

DHS150-112
The main parameters
Number of circuits	112	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP65
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

Standard product outline drawing:

Our advantage:

Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
Product advantage : To ensure only the highest quality products, We’ll perform the tests in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.
Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
