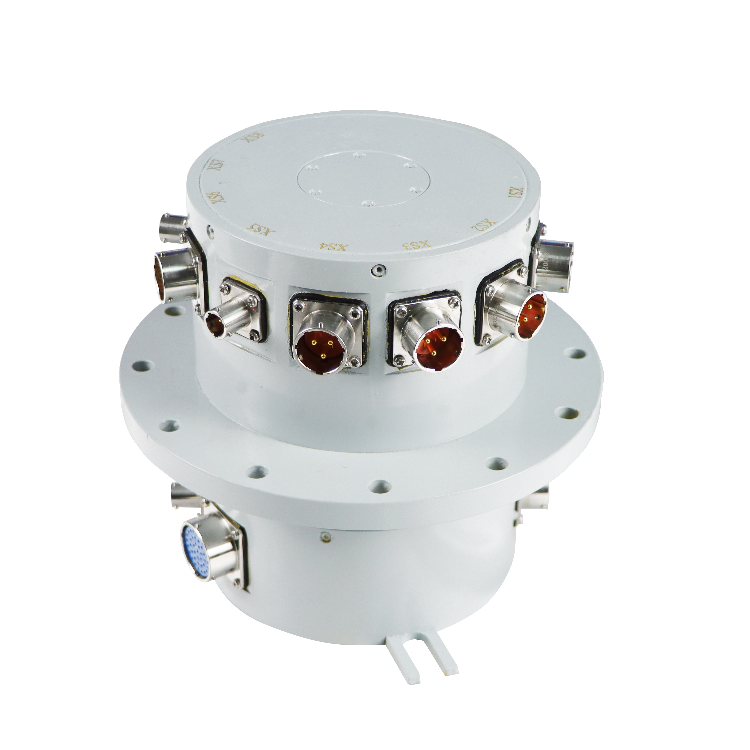

DHS160-60 Customized solid shaft aviation plug slip ring diameter 160mm 60 channels

Solid shaft aviation plug slip ring adopts aviation plug connector.

Both the rotor and stator are equipped with aviation plugs.

Easy to maintain and replace.
IP51, IP65, IP68 optional.
Adopt advanced precious metal cluster brush multi-point contact to ensure reliable contact with extremely low friction.
Commonly used in high-end applications
Various types of aviation plug conductive slip rings, aviation plug rotary connectors, etc. can be customized

DHS160-60
The main parameters
Number of circuits	60	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Standard product outline drawing:

Our advantage:

Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
