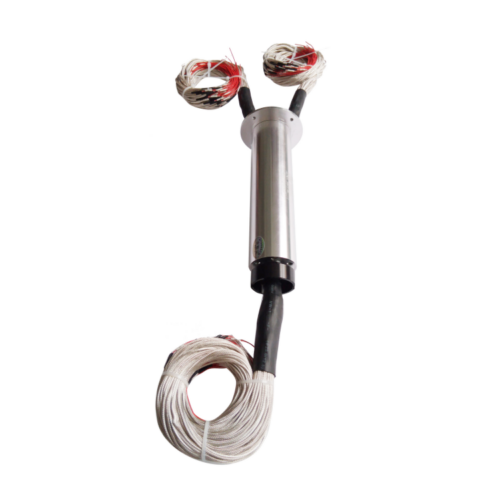

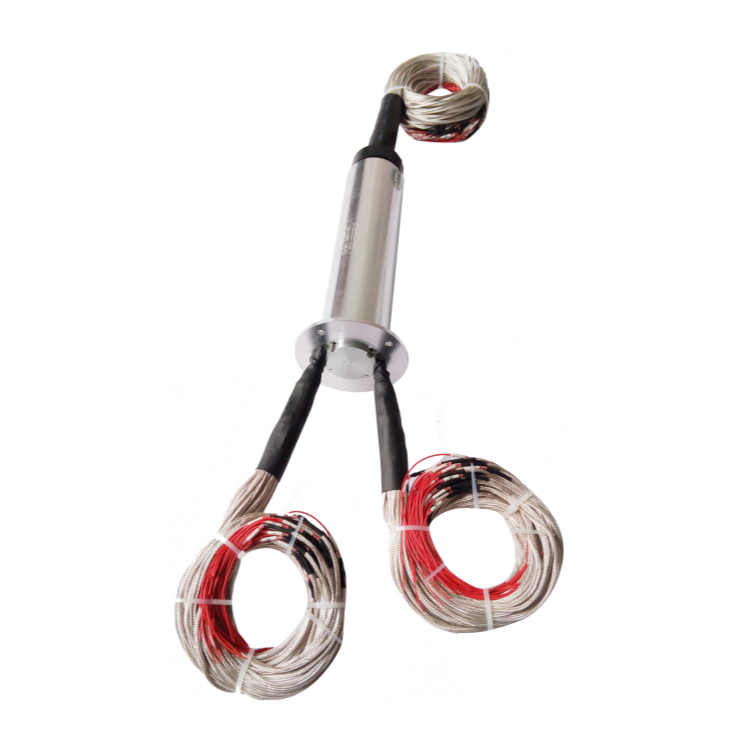

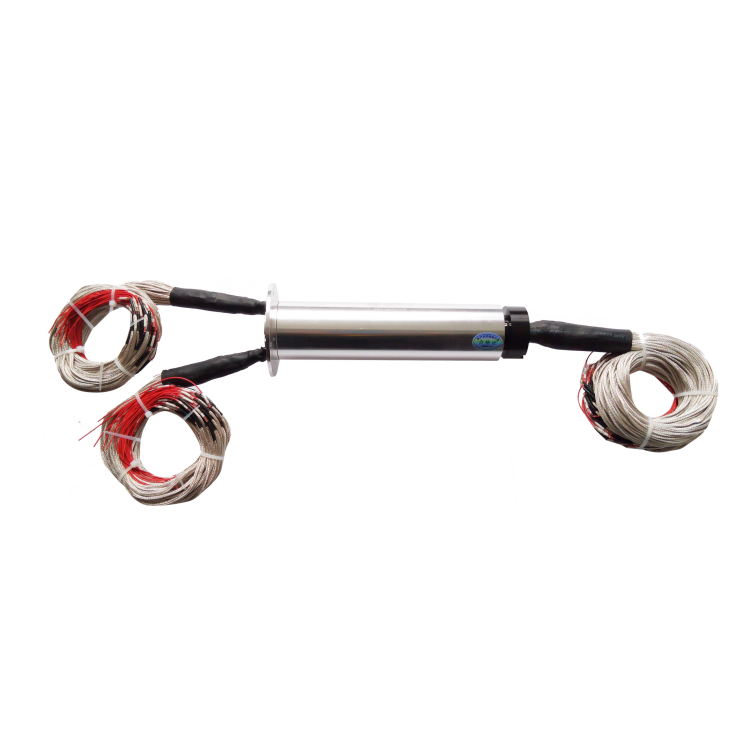

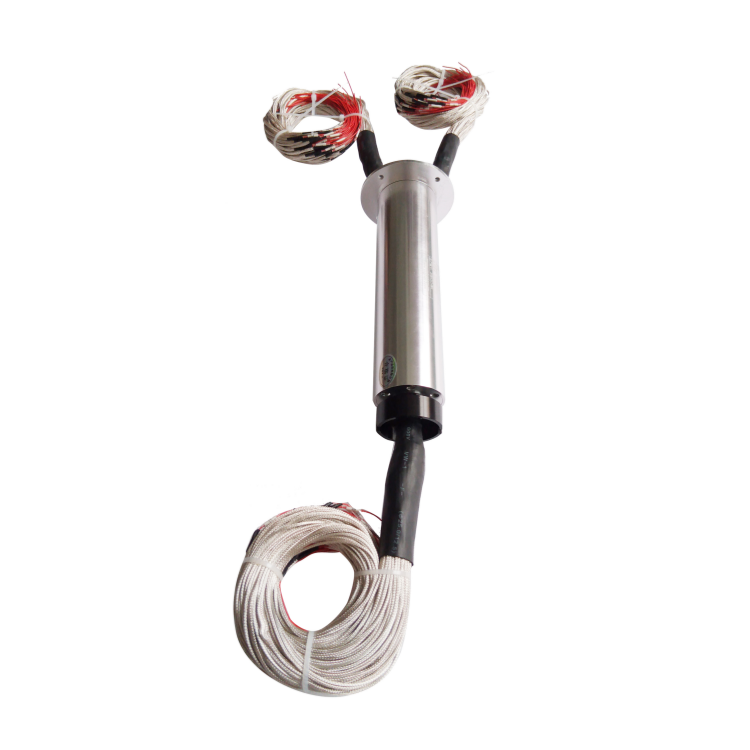

DHS090-90-3A Ingiant Stator flange slip ring out diameter 90mm with 90 channels 3A power and signal
Stator flange slip ring: Customized Flange Slip Ring
Number of channels: 90 Current: 3A or signal Outer diameter (mm): 90
DHS090-90-3A series Stator flange slip ring is the general term for a series of slip rings with connecting flanges on the stator sub-part. It is a solid slip ring with no through hole in the center and is suitable for stator flange installation.
Features:
- Solid slip ring, no through hole in the center, suitable for stator flange end face installation
- Can achieve more routes and larger currents.
- Internal wiring and special shielding module design are convenient, more stable and reliable.
- Usually such products are used to customize various sensitive signals or encoder signals.
Typical applications:
Industrial machining centers, rotating workbenches, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotation sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc;
Stator flange slip ring: Customized Flange Slip Ring
Number of channels: 90 Current: 3A or signal Outer diameter (mm): 90
|
DHS090-90-3A |
|||
|
The main parameters |
|||
| Number of circuits | 90 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

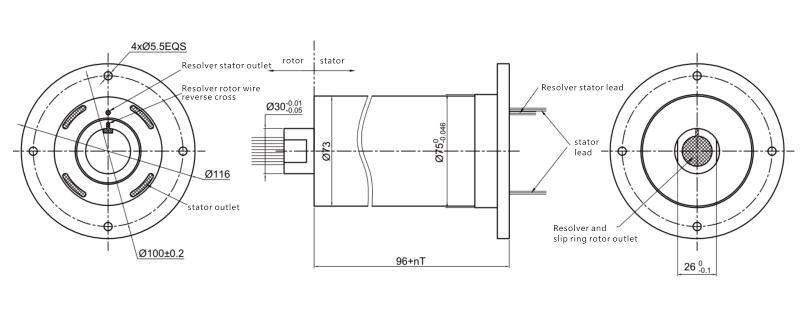

Standard product outline drawing:
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
