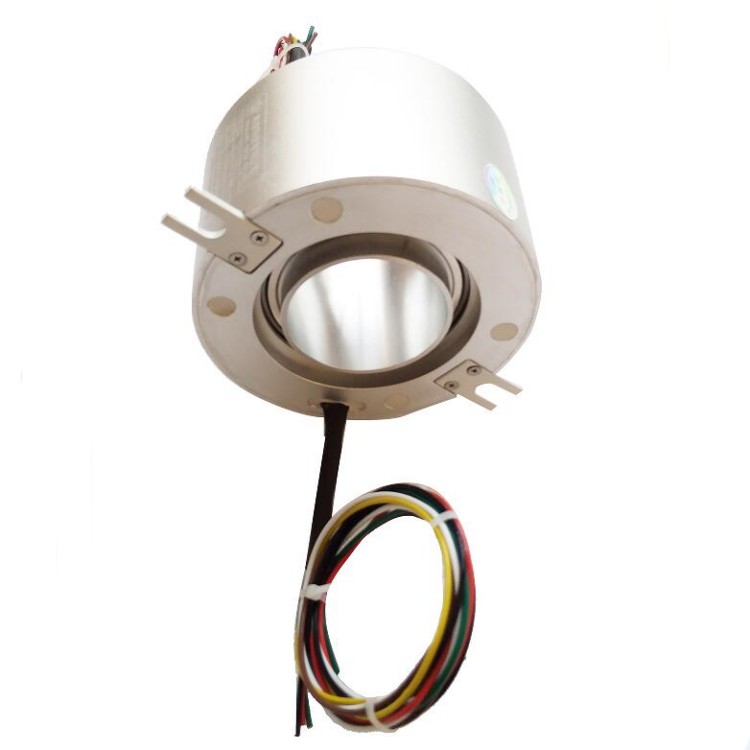

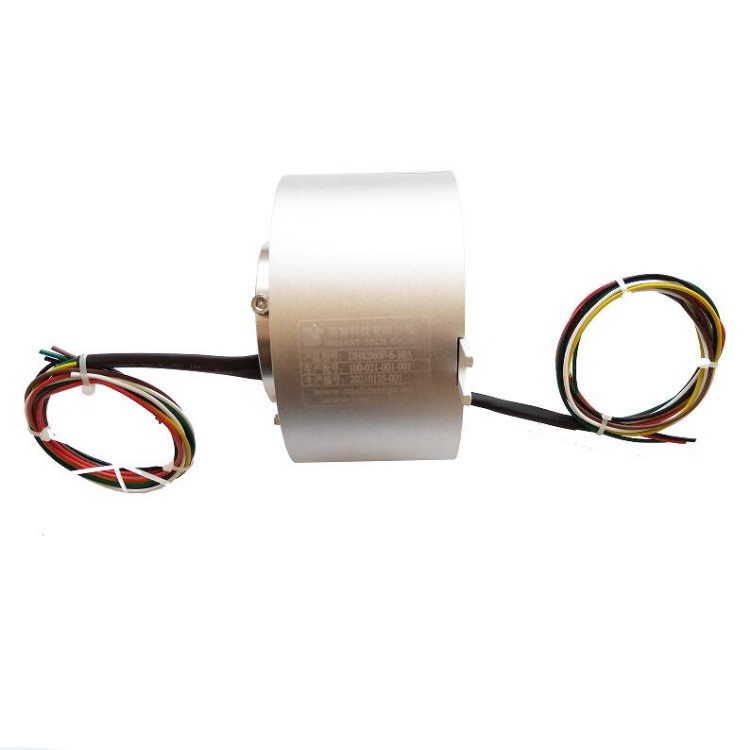

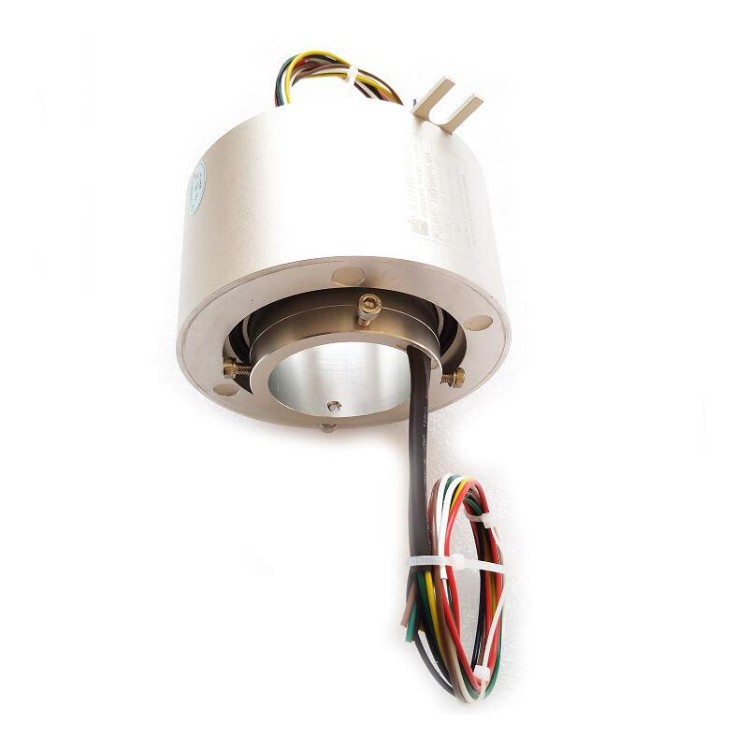

DHK060F-6-10A through bore slip rings with hollow shaft 6 channels 10A
Through bore slip rings for maximum space efficiency where space is limited. Hollow shafts are rotating profiles with an open interior. As an empty tube, hollow shafts are suitable for installation on an axle or for cable feed-through. In addition, hollow shafts with a gas or liquid flowing through them are often found in hydraulic, pneumatic and media lines. To make them rotatable, the industry offers special couplings. These ensure continuous rotation through 360° without the user having to fear leakage. The hollow shaft slip rings are the ideal complement for these special kinetic profiles.
Feature：
- Can combine the power, data and signals without interference in one rotary system
- Temperature control signal and thermocouple signal can be combined.
- Advanced multi-point contact brush technology ensures reliable contact with low friction
- Metal housing for better protection
- Integrated structure design, easy installation
- Hole size option for 12~400mm
- Standard current option for 0~20A, Standard voltage option for 0~600VAC/VDC
- Rings option for 0~300
|
DHK060F-6-10A |
|||
|
The main parameters |
|||
| Number of circuits | 6 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

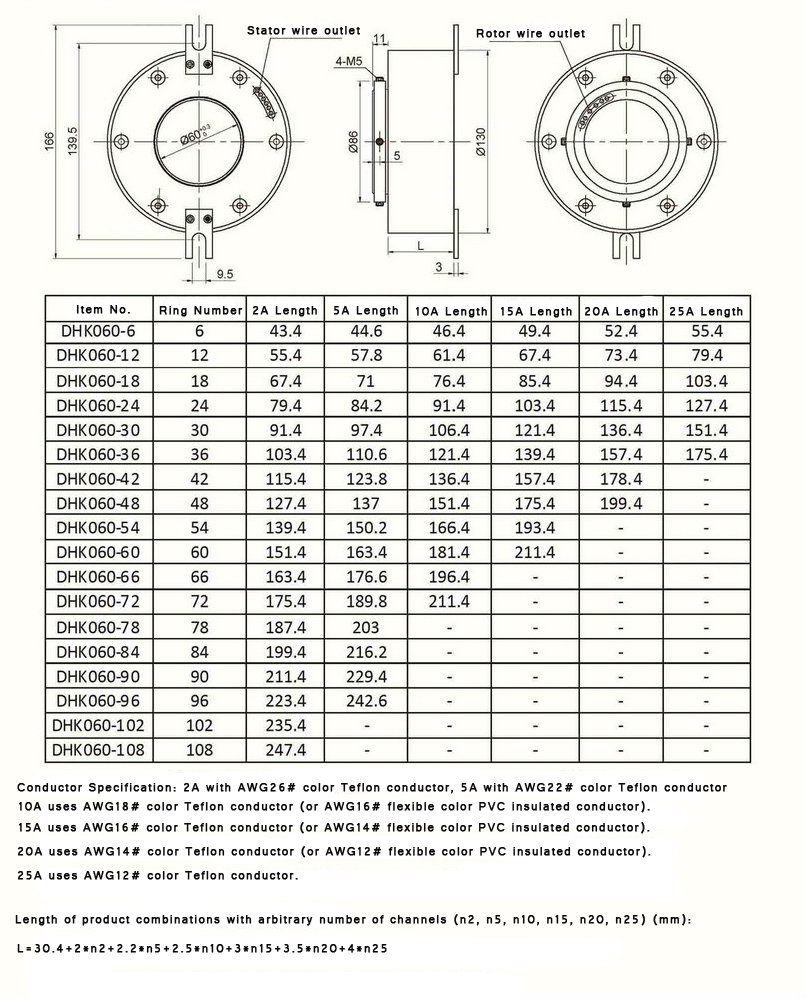

Standard product outline drawing:
