DHK020-3-10A Ingiant Through hole conductive slip ring hole diameter 20mm with 3channels 10A power

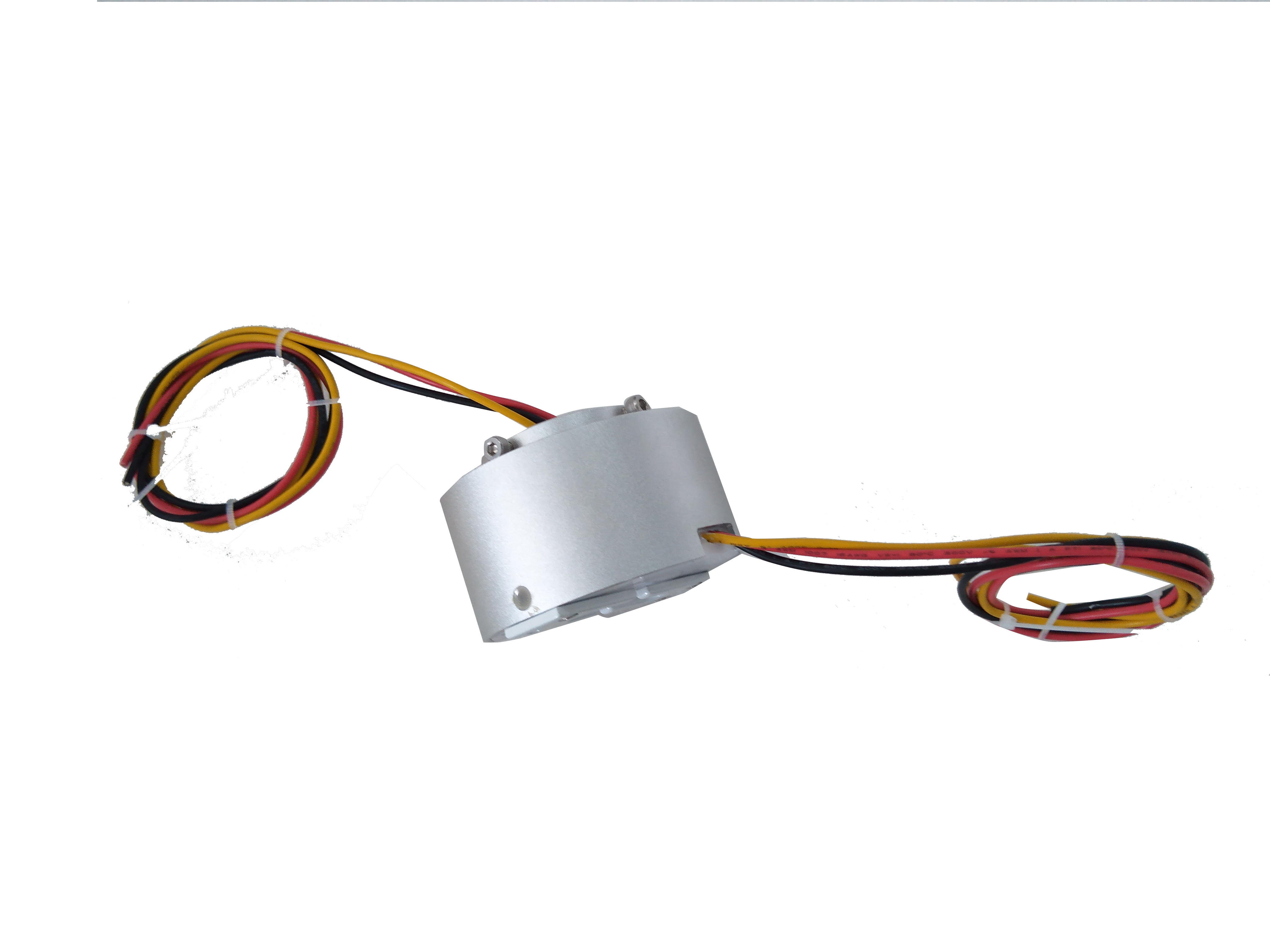

Through hole conductive slip ring DHK020-3-10A
DHK020-3-10A series through hole conductive slip ring, with a hole diameter of 20mm and an outer diameter of 78mm, is suitable for rotating electromechanical systems with a diameter less than 20mm. The standard power ring is 10A/ring, with a maximum of 24 rings, and the signal ring is 5A/ring, with a maximum of 48 rings. The shell is made of special engineering plastics, and aluminum alloy or stainless steel can be selected. As a precision conductive slip ring, it is mostly used in various small automation equipment, such as dispensing machines, welding machines, die-cutting machines, wrap-around packaging machines, etc.
Product features
- Multi-contact brush contact design, long service life
- Integrated structure design, easy installation
- 3channels power ring 10A/channel
- IP 51 protection level, customizable IP68
- Can integrate multiple signals, compatible with multiple data protocols
- Maintenance-free use
Typical applications
- Automatic machinery
- Cable drums
- Robots/rotary sensors
- Display/exhibition equipment
- Packaging machinery
- Industrial turntables
- Medical/pharmaceutical equipment
- Marking machines
- Filling machinery
- CNC machine tools
|
DHK020-3-10A |
|||
|
The main parameters |
|||
| Number of circuits | 3 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
