DHK045-5-10A Ingiant Through hole conductive slip ring inner diameter 45mm with 5 channels 10A

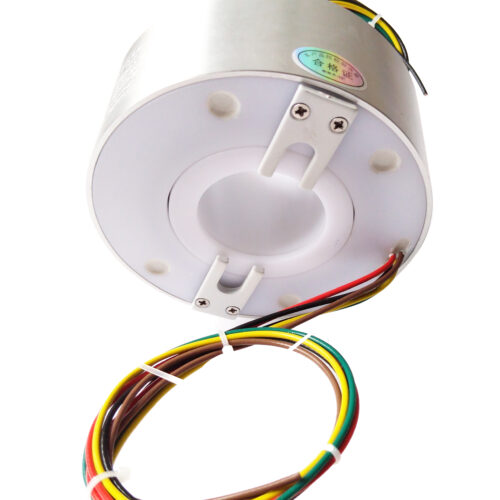

Through hole conductive slip ring DHK045-5-10A
DHK045-5-10A series through hole conductive slip ring, hole diameter 45mm, outer diameter 120mm, suitable for rotating electromechanical systems with a diameter less than 45mm, power ring 10A/channel, 5 channels, used for 360-degree power or signal transmission. Through hole conductive slip rings can fully meet the transmission of power, signals, weak current, large current or high voltage under 360-degree unlimited continuous rotation. The main features are low torque, low electrical noise, low loss and easy maintenance.
Product features
- Multi-contact brush contact design, long service life
- Integrated structure design, easy installation
- 5 channels power ring 10A/channels
- IP 51 protection level, customizable IP68
- Can integrate multiple signals, compatible with multiple data protocols
- Maintenance-free use
Typical applications
- Automatic machinery
- Cable drums
- Robots/rotary sensors
- Display/exhibition equipment
- Packaging machinery
- Industrial turntables
- Medical/pharmaceutical equipment
- Marking machines
- Filling machinery
- CNC machine tools
|
DHK045-5-10A |
|||
|
The main parameters |
|||
| Number of circuits | 5 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
- Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.
