DHK062-39 customized inner diameter 62mm through hole Ethernet slip ring used in industrial automation control
Ethernet Slip Ring – DHK062 Series
Accept customization and transmit 100/1000M Ethernet signals

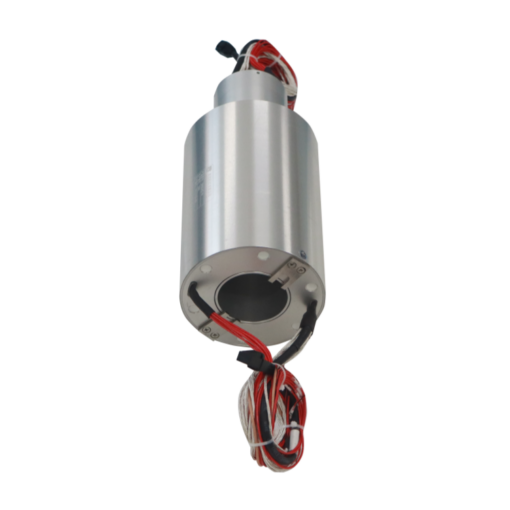

DHS062-39 is a through hole Ethernet slip ring with an inner diameter of 62mm. It can be used to install rotating systems with shaft diameters less than or equal to 62mm. It supports 29 channels of power and signals and 1 channel of Gigabit Ethernet.
Features
- It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
- Fiber brush bundle contact structure ensures product life
- Stable transmission of Ethernet signals
- Integrated structural design for easy installation
- Protection grade IP51-IP68 optional
- Standard models available and customizable
- RJ45 male and female connector optional
- Use high-quality Ethernet cables
- Maintenance-free
Typical applications
- Small Network System
- Video Surveillance System
- Stage Control System
- Industrial automation control
- Various network cables and RJ45 interface transmission
|
DHK062-39 |
|||
|
Main Parameters |
|||
| Number of circuits | 39 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
