DHK100-20 Ingiant through hole Ethernet slip ring hole diameter 100mm with 1channel Gigabit Ethernet signal
Through hole Ethernet slip ring DHK100-20

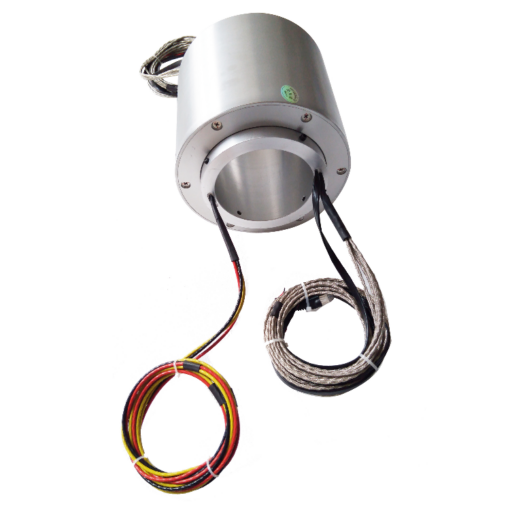

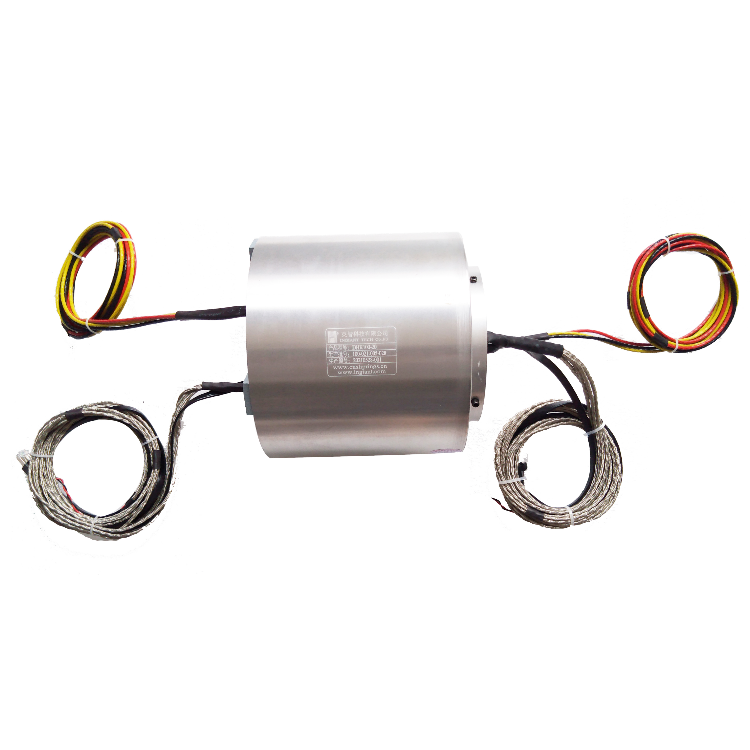

DHK100-20 through hole Ethernet slip ring, with an inner diameter of 100mm and an outer diameter of 180mm. Can be used to install rotating systems with a shaft diameter less than or equal to 100mm, supporting 3 channels of 20A power, 8 channels of 2A signals, and 1 channel of Gigabit Ethernet.
Product features
- Stable transmission of 1 channel Gigabit Ethernet signal
- The contact part of the brush is coated with rare and precious metals, resulting in a long service life
- Plug and play RJ45 interface
- Dedicated Ethernet cable
- Small size, easy to install
- Maintenance free use
- Stable transmission, no packet loss, no serial code, high return loss, low insertion loss
Typical applications
- Small network systems
- Video surveillance system
- Stage control system
- Industrial automation control
- Various network cables and RJ45 interface transmission
|
DHK100-20 |
|||
|
The main parameters |
|||
| Number of circuits | 20 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: High rotation accuracy, more stable performance and longer life. The contact material is made of precious metal + super-hard gold plating, which has small torque, stable operation, long life, small resistance fluctuation, and small contact resistance, ensuring excellent transmission performance.
- Company advantage: Ingiant Technology has accumulated rich experience in developing and producing highly reliable conductive slip rings for many years, especially in large size slip rings, effectively improving product quality and yield, and saving costs for customers.
- Excellent after-sales : The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Provide technical information and technical training support on a regular basis.
