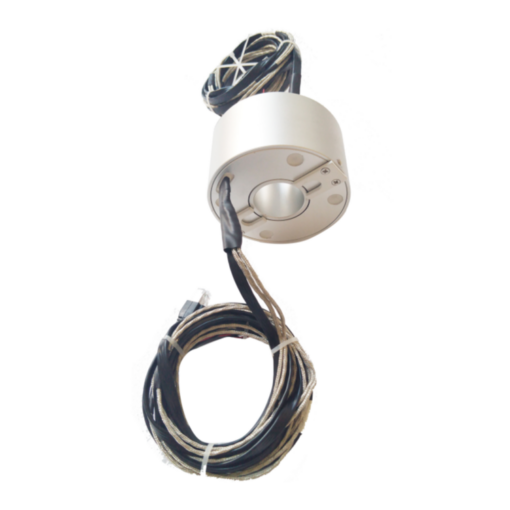

DHK035-9-002 Ingiant through hole Ethernet slip ring ID 35mm transmission 100M Ethernet signal for HD video surveillance systems
Ethernet slip ring:Through hole slip ring series
Accept customization, transmit 100/1000M Ethernet signal
DHK035-9-002 is a through hole Ethernet slip ring with an inner diameter of 35mm and an outer diameter of 99mm. Ethernet slip ring is specially designed for 250MHz frequency signal and is used to transmit 100M/1000M Ethernet signal. It has the advantages of stable transmission, no packet loss, no string code, small return loss, small insertion loss, strong anti-interference ability, and support for POE.
Product features
- Stable transmission of 100M Ethernet signal
- The brush contact part is plated with rare precious metals, which has a long service life
- Plug-and-play RJ45 interface
- Dedicated Ethernet cable
- Small size, easy installation
- Maintenance-free use
- Stable transmission, no packet loss, no string code, large return loss, low insertion loss
Typical applications
- Small network system
- Video surveillance system
- Stage control system
- Industrial automation control
- All kinds of network cables and RJ45 interface transmission
Ethernet slip ring:Through hole slip ring series
Accept customization, transmit 100/1000M Ethernet signal
|
DHK035-9-002 |
|||
|
The main parameters |
|||
| Number of circuits | 9 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
- Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry.
- Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
